6 Application Instructions API 00-49
DVP-PLC Application Manual
6-63

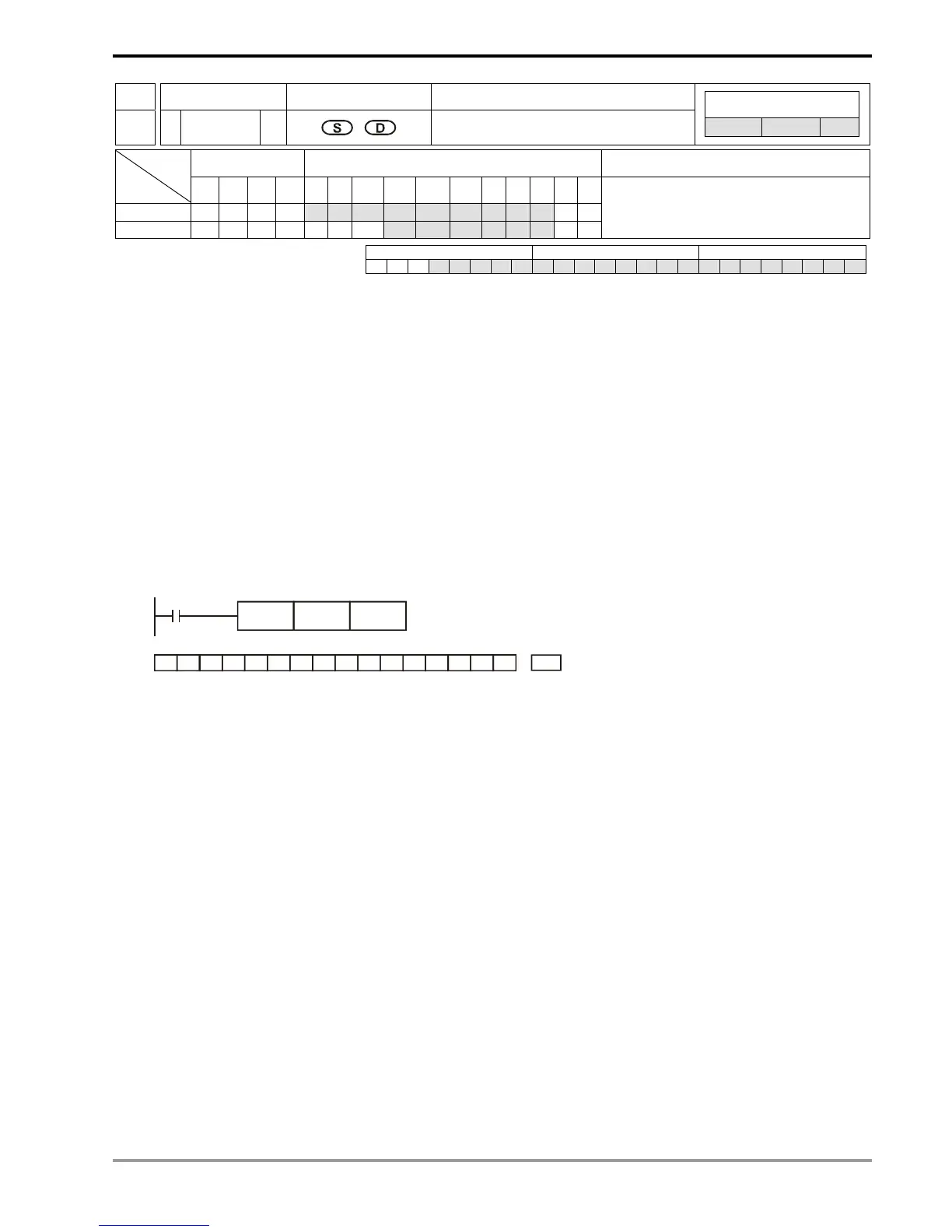

API Mnemonic Operands Function
43
D SUM P
Sum of Active Bits
Controllers
ES/EX/SS SA/SX/SC EH/SV
Bit Devices Word Devices Program Steps Type
OP
X Y M S K H KnX KnY KnM KnS T C D E F
S * * * * * * * * ***
D * * * * * ***
SUM, SUMP: 5 steps
DSUM, DSUMP: 9 steps
PULSE 16-bit 32-bit
ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV
Operands:
S: Source device D: Destination device for storing counted value
Explanations:
1. If S and D are used in device F, only 16-bit instruction is applicable.
2. See the specifications of each model for their range of use.
3. Flag: M1020 (zero flag)
4. Among the bits of S, the total of bits whose content is “1” will be stored in D.
5. When all the 16 bits of S are “0”, zero flag M1020 = On.
6. When 32- instruction is in use, D will occupy 2 registers.
Program Example:
When X10 = On, among the 16 bits of D0, the total of bits whose content is “1” will be stored in D2.
X10
SUM D0
D2
0000 00011 100 0000 K3
D2D0
To Next Page
