Delta DVP-PLC User Manual

9 Application Instructions API 150-199
DVP-PLC Application Manual
9-75

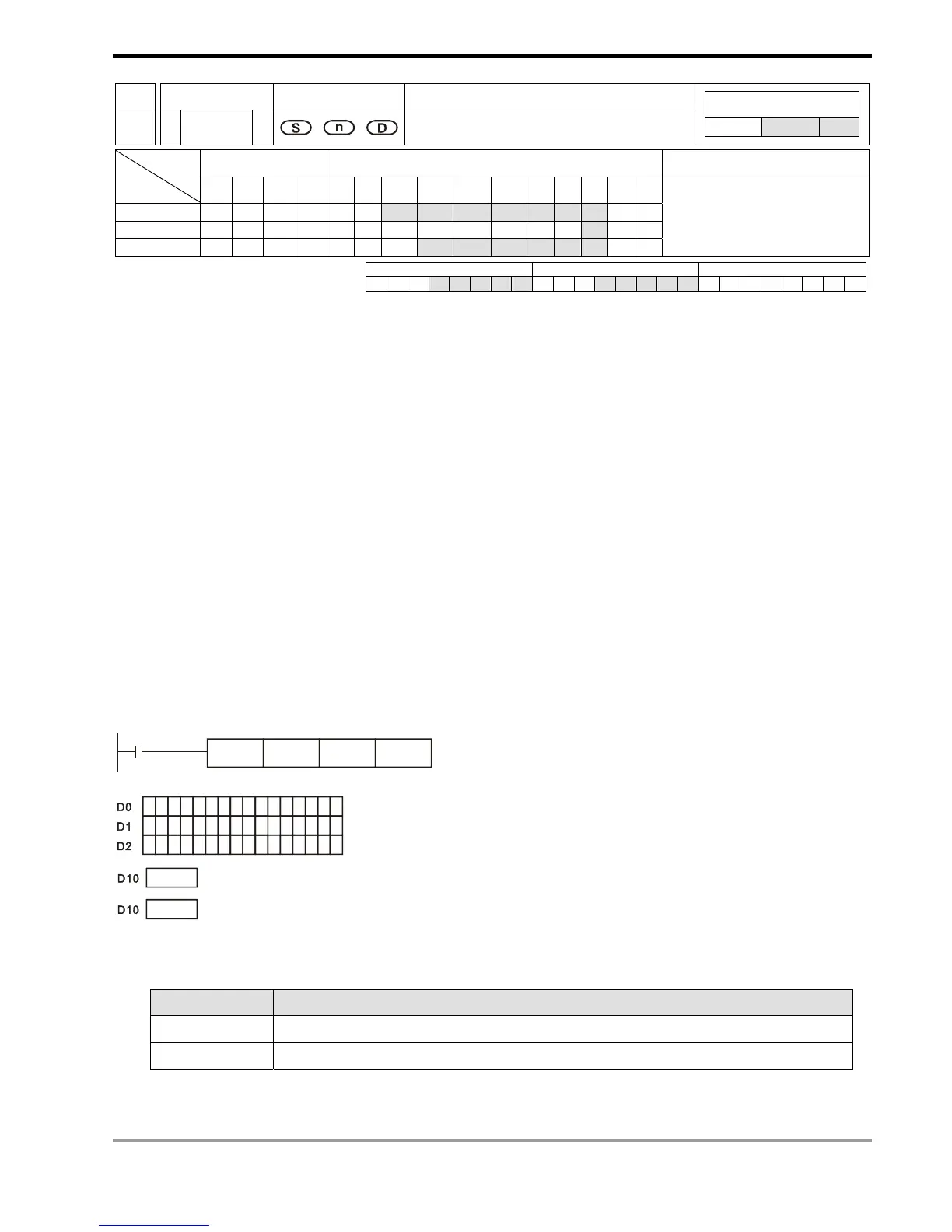

API Mnemonic Operands Function
190 MBC P
Matrix Bit Status Counting
Controllers
ES/EX/SS SA/SX/SC EH/SV
Bit Devices Word Devices Program Steps Type
OP
X Y M S K H KnX KnY KnM KnS T C D E F
S * * * * * * *
n * * *
D * * * * * * * *
MBC, MBCP: 7 steps
PULSE 16-bit 32-bit
ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV
Operands:
S: Matrix source device n: Array length D: Counting result
Explanations:
1. Range of n: K1 ~ K256
2. S designates KnX, KnY, KnM and KnS; D designates KnY, KnM and KnS.
3. SA/SX/SC can designate n = 4. EH/EH2/SV can designate n 4≦ .
4. See the specifications of each model for their range of use.
5. Flags: M1098, M1099. See remarks for more details.
6. This instruction counts the number of bits which are “1” or “0” in S by array length n. The result is stored in D.
7. The instruction counts the number of bits which are “1” when M1098 = 1 and counts the number of bits which
are “0” when M1098 = 0. When the operation result is “0”, M1099 = 1.
Program Example:
When X10 = On, in the matrix of D0 ~ D2, when M1098 = 1, the instruction counts the total number of bits which are
“1” and store the number in D10. When M1098 = 0, the instruction counts the total number of bits which are “0” and
store the number in D10.
X10
MBC D0 K3 D10
11111 101
11111 1010
11111 1010
0
12
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
M1098=0
36
M1098=1
Remarks:
Flag explanations:
Flags Function
M1098 Counting the number of bits which are “1” or “0”
M1099 On when the counting result is “0”.
