Domino G20I User Manual

INSTALLATION
EPT024619 Issue 1 June 2016 6-23
PNP Product Sensor Connection
CAUTION: Turn off the G20i and disconnect the power before
making any wiring connections.
PNP
Sensor
Vcc
Out
GND
12
4
13
Extended
Port
PNP
Sensor
Extended
Port
5V Power Supply
+5V
GND

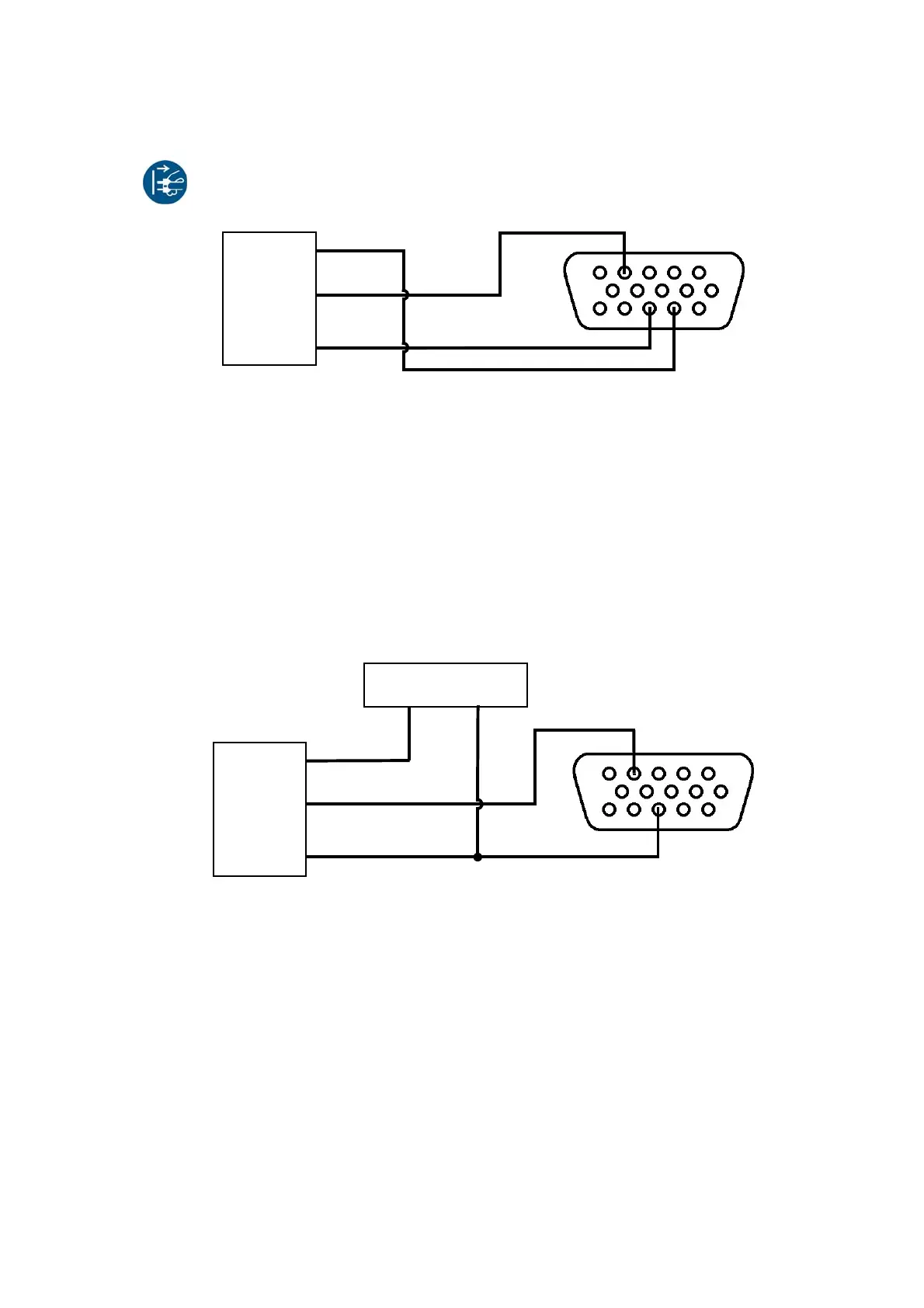

PNP Sensor to Printer Wiring Diagram
(Powered from the printer)
PNP Sensor to Printer Wiring Diagram
(Powered from an external power supply)
Vcc
Out
GND
13
4
