Configuration and Use Manual 9
Using the Display Using the CommunicatorUsing ProLink IIBefore You Begin
Chapter 2
Using the Transmitter Display
2.1 Overview
The transmitter display provides basic configuration and management functionality.
This chapter describes the user interface of the transmitter display. The following
topics are discussed:
• Display components (see Section 2.2)
•Using the
Scroll and Select optical switches (see Section 2.3)
• Using the display (see Section 2.4)
Note that the Model 1500 and 2500 transmitters do not have displays, and the Model 1700 and 2700
transmitters can be ordered with or without displays. Not all configuration and use functions are
available through the display. If you need the added functionality, or if your transmitter does not have
a display, you must use either ProLink II or a Communicator.
2.2 Components

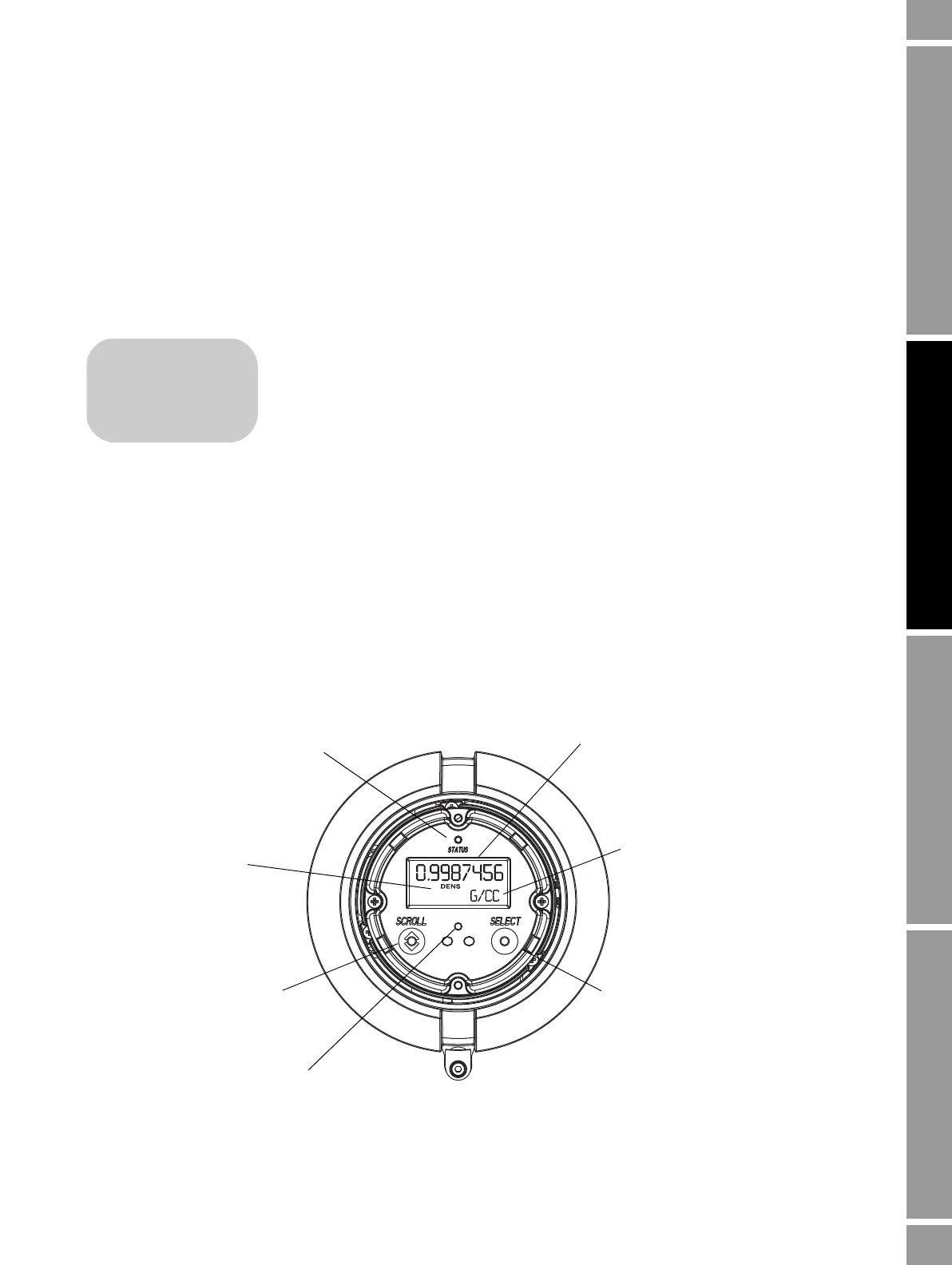

Figure 2-1 illustrates the display components.
Figure 2-1 Display components
• Model 1700 AN
• Model 1700 IS
• Model 2700 AN
• Model 2700 IS
• Model 2700 CIO
Current value
Units of measure
Process variable
Scroll optical switch Select optical switch
Optical switch indicator
Status LED
