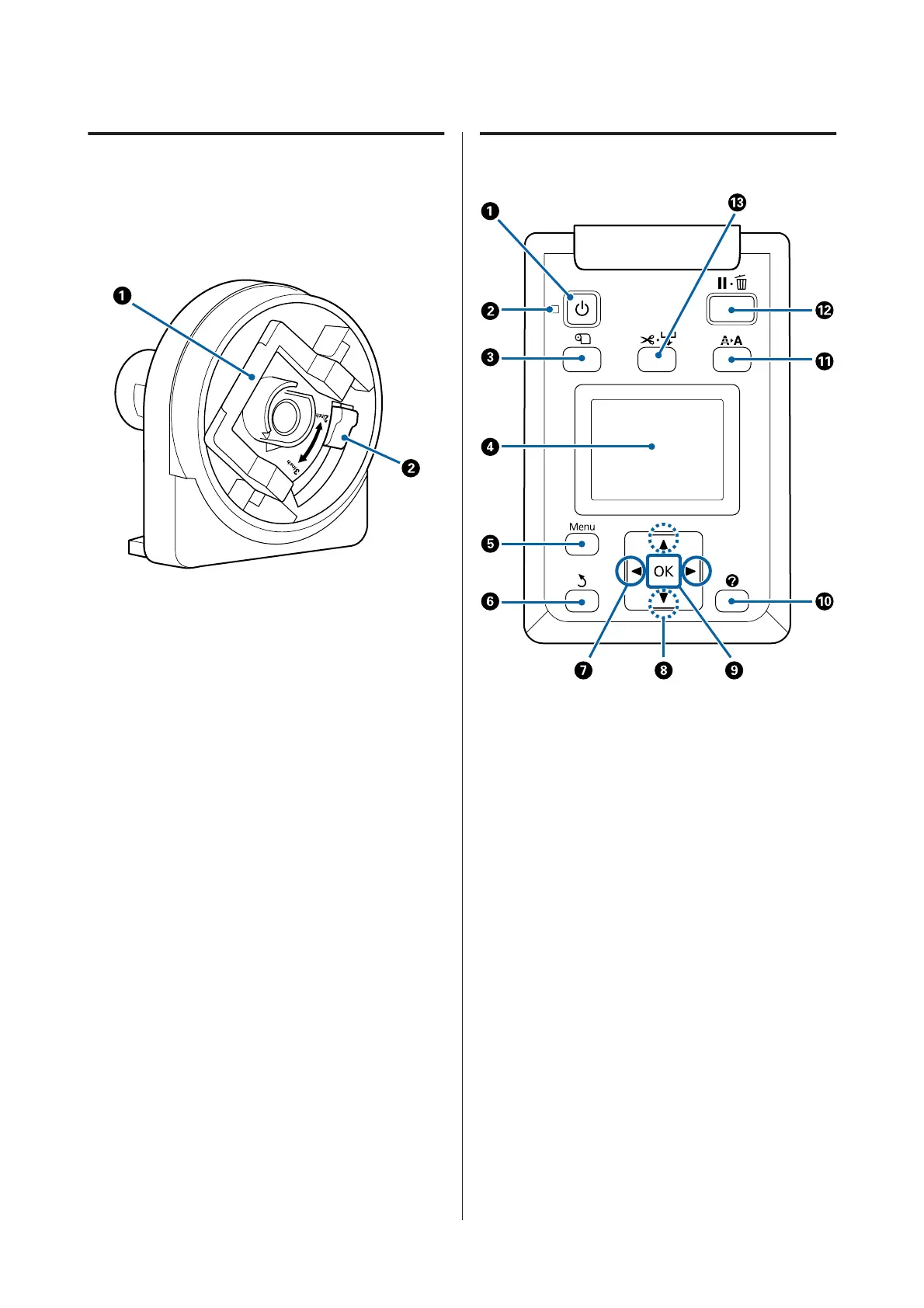

Roll paper adapter
Use the supplied roll paper adapter when loading roll
paper onto the printer.
U “Attaching the Roll Paper Adapter” on page 31
A Adapter lock lever
Lift to unlock, lower to lock. Unlock when
attaching roll paper to the adapter, lock once the
roll is attached.
B Size lever
Switch according to the roll-core size (core
diameter).
Control panel
A
P button (power button)
Turns the power on and off.
B
P light (power light)
The printer’s operational status is indicated by a lit
or flashing light
On : The power is on.
Flashi
ng
: The printer is receiving data or cleaning
the print head or performing other
operations in the course of being shut
down.
Off : The power is off.
C M button (Load/Remove Paper button)
SC-P20000 Series/SC-P10000 Series User's Guide
Introduction
15
