Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
ADJUSTMENT Head Related Checks and Adjustments 252
Confidential
4.11.5.2 Head Inclination Manual Adjustment (CR direction)
1. Load the paper into the printer.
2. Turn the printer ON.
3. Start the Service Program and select Head inclination manual adjustment (CR
direction).
4. Click [Run].
The adjustment pattern is printed.

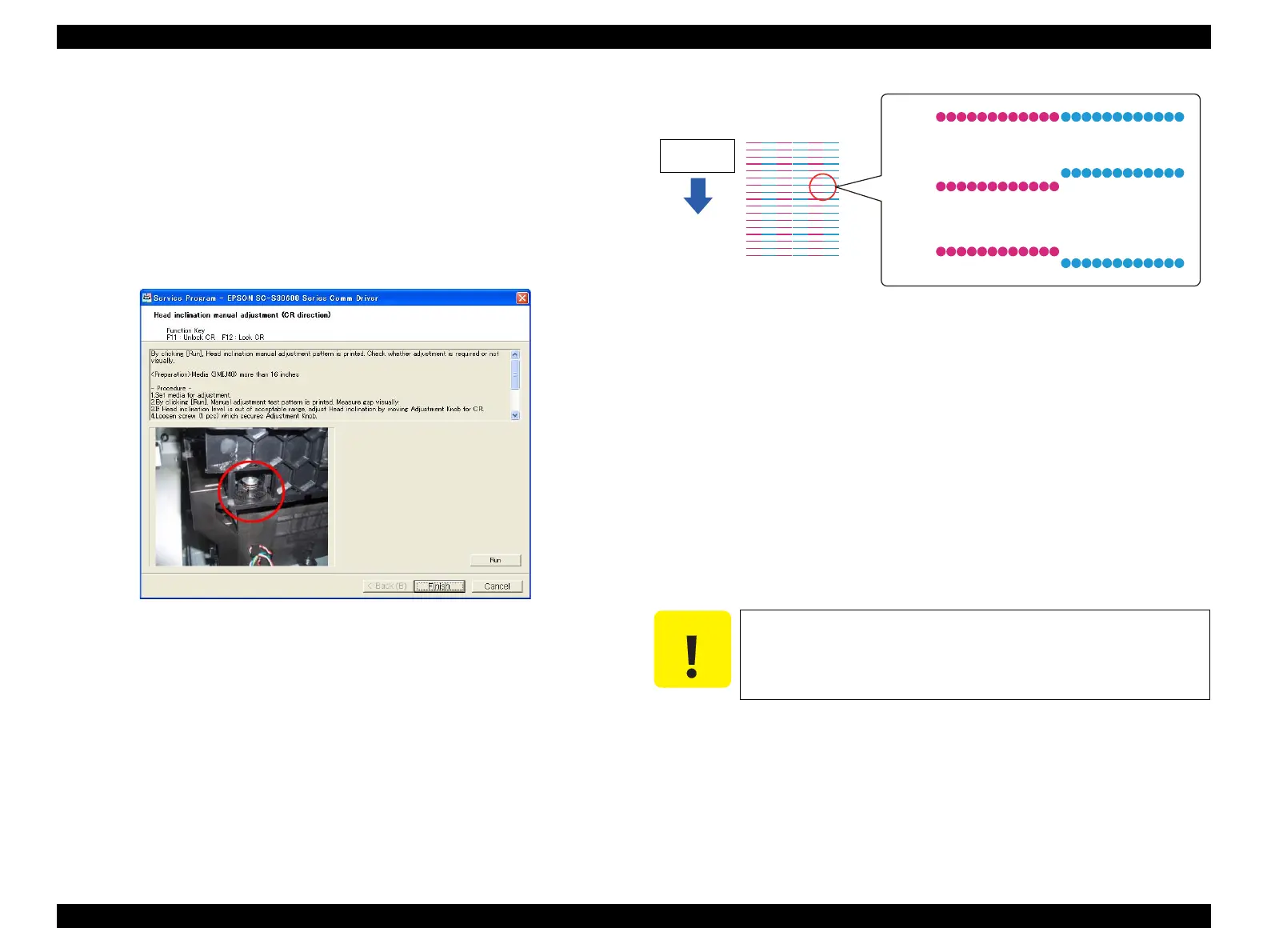

Figure 4-39. [Head inclination manual adjustment (CR direction)] Screen
5. Examine the printed pattern.
6. Make the adjustment referring to “4.11.5.3 Correcting Head Inclination (CR
direction)” (p252).
Figure 4-40. Judgement
4.11.5.3 Correcting Head Inclination (CR direction)
1. Press the F11 key of the keyboard to unlock the CR unit.
2. Move the CR unit to the left end of the printer.
3. Remove the CR Cover.(P. 119)
4. Loosen the three screws (A, B, C) that secure the Damper Kit.
5. Loosen the three screws (D, E, F) that secure the Head Holder.
6. Loosen the screw (G) (Bit No. 1) that secures the Adjustment Knob.
7. Turn the Adjustment Knob to correct the head inclination.
See Figure 4-41 for which direction to turn the knob.
C A U T I O N
Be careful not to completely remove the screw that secures the
Adjustment Knob.
OK
NG
NG
Paper feed
direction
Misalignment within one-dot’s width is OK.
