Garmin GI 275 User Manual

190-02246-10 GI 275 Part 23 AML STC Installation Manual
Rev. 11 Page 4-14

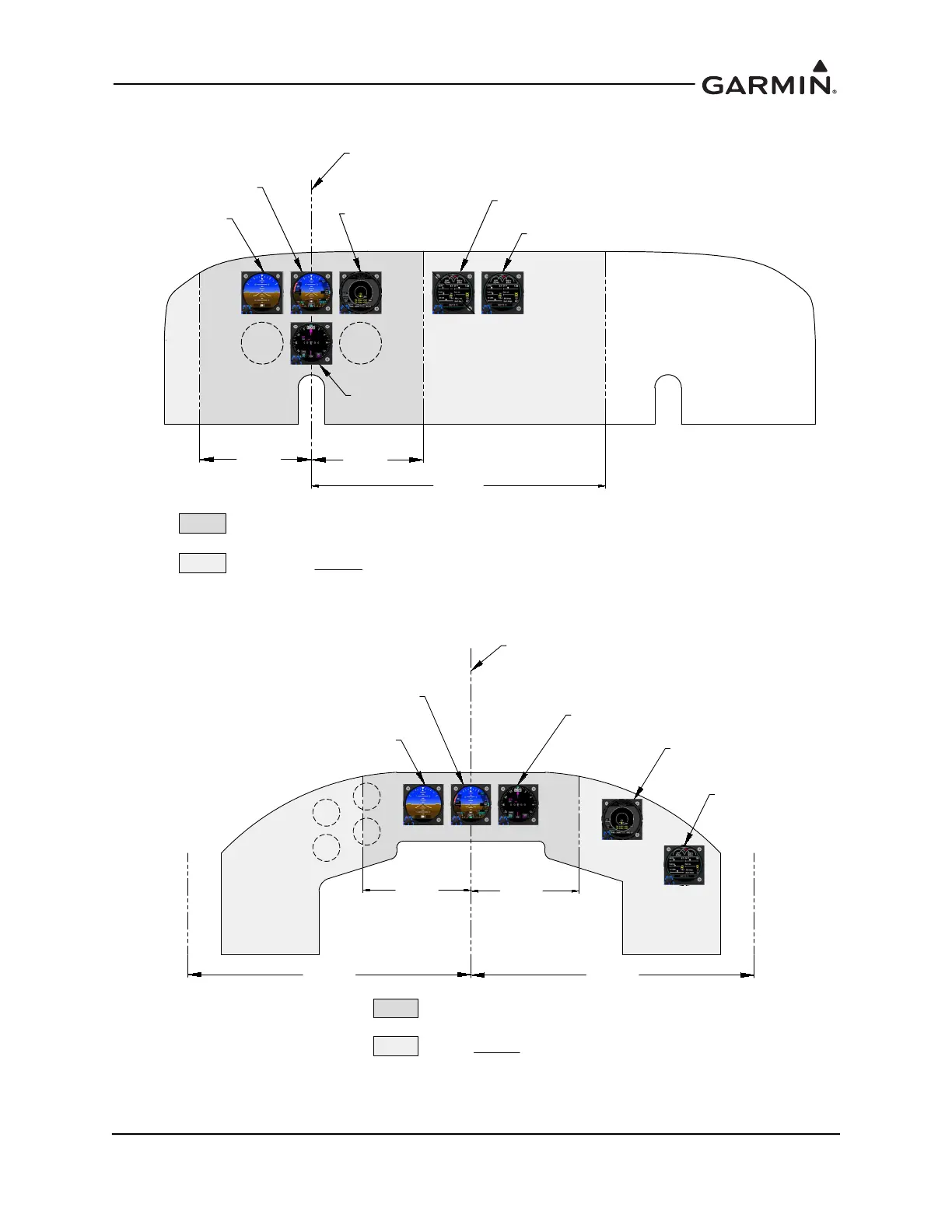

Figure 4-8 Example of GI 275s in “Six Pack” Instrument Panel (Multi-Engine)
Figure 4-9 Example of GI 275s in Non-“Six Pack” Instrument Panel (Single-Engine)
GI 275 PRIMARY ADI
PILOT FIELD-OF-VIEW
CENTERLINE
PILOT PRIMARY FIELD-OF-VIEW.
PILOT PRIMARY
MAXIMUM FIELD-OF-VIEW
8.00 MAX
8.00 MAX
GI 275 STANDBY
GI 275 MFD
21.00 MAX
GI 275HSI
GI 275 EIS (ENGINE #1)
GI 275 EIS (ENGINE #2)
PILOT FIELD-OF-VIEW
CENTERLINE
GI 275 MFD
GI 275HSI
GI 275 PRIMARY ADI
GI 275 STANDBY
8.00 MAX
8.00 MAX
PRIMARY FIELD-OF-VIEW
PRIMARY
MAXIMUM FIELD-OF-VIEW
GI 275 EIS
21.00 (REF)
21.00 (REF)
