[2] EIS pages are only available when fully configured in accordance with Section 5.6.
[3] The ADI style is configured on the Airframe Configuration page (refer to Section 5.5.1).
[4] GI 275 MFDs must not display any EIS pages other than the Summary page in twin-
engine EIS installations or installations with more than one primary EIS display.
[5] The Transponder page must be set as the final page, if configured.
5.5.3.6 HSI/Standby ADI Page Options
The HSI/Standby ADI has selectable pages that can be toggled on or off.
NOTE
When configured as a HSI/Standby ADI, the ADI page is always configured on.
• ADI page [1] — Displays pitch, roll, slip/skip, airspeed tape, altitude tape, and optional heading.
• Standard HSI page — Provides magnetically stabilized primary heading.
• Enhanced HSI page — Provides map underlay capable of displaying ownship on a moving map
with traffic and weather overlays.
Notes:
[1] The ADI style is configured on the Airframe Configuration page (refer to Section 5.5.1).
5.5.3.7 GI 275 Normal Mode Page Options

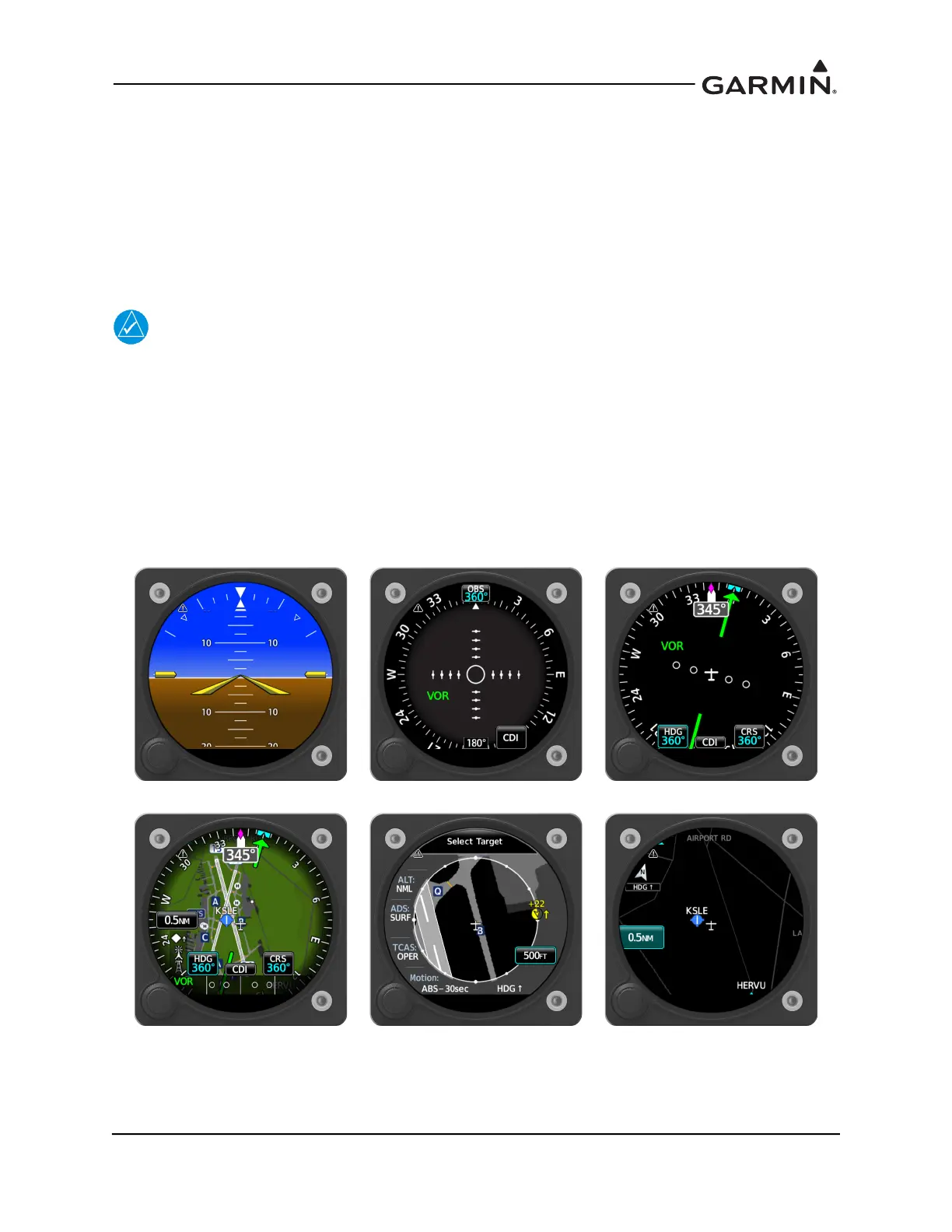

ADI page CDI page Standard HSI page
Enhanced HSI page Traffic page SXM Weather page
To Next Page
