1. Connect the proper hose to the AGSS outlet connector on the
bottom of the AGSS underneath the breathing system.
2.
Attach the other end of the hose to the hospital disposal system.

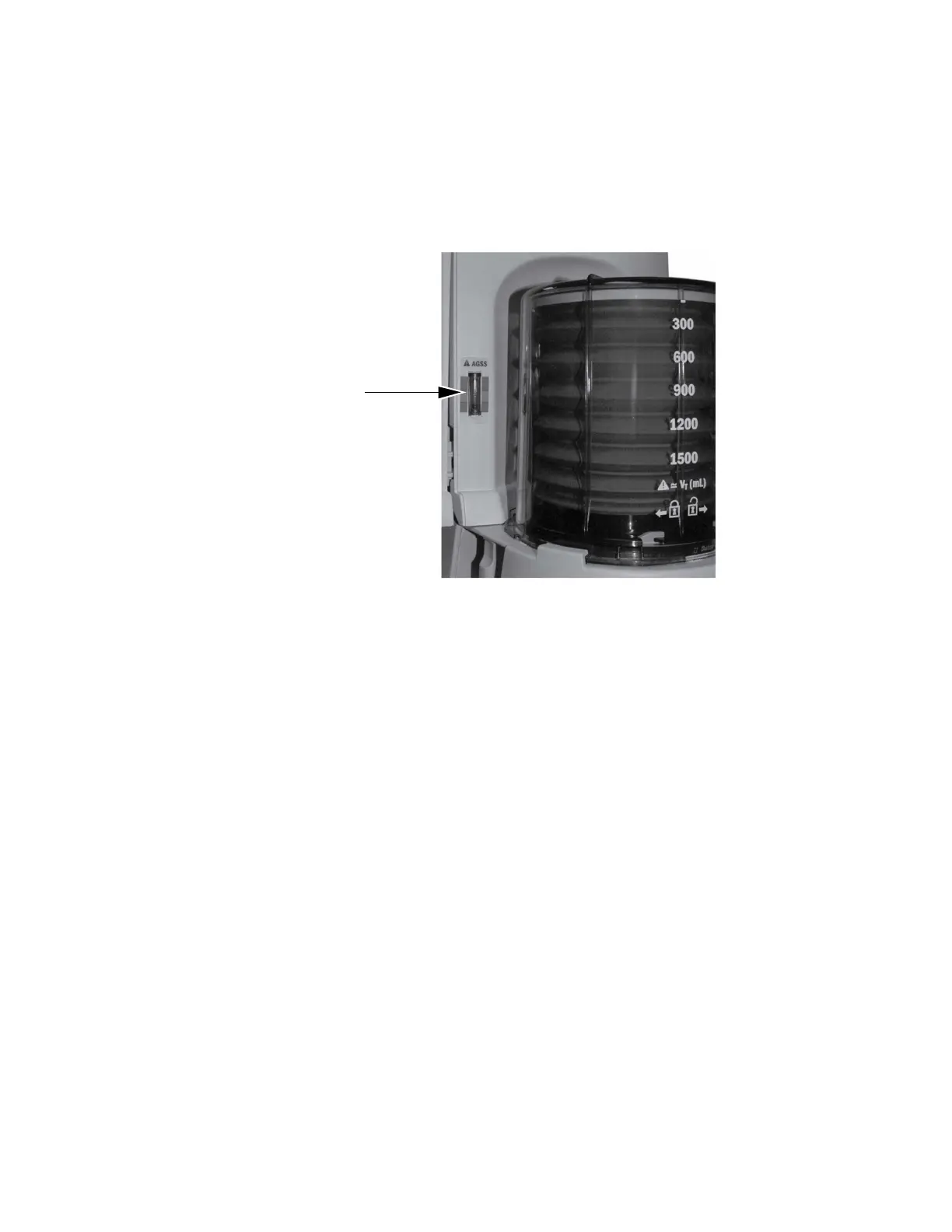

3. With the AGSS operating, verify that the ball on the flow
indicator rises to the green zone, indicating adequate flow.
AC.22p002
The ball in the upper red zone indicates excessively high extraction
flow. The ball in the lower red zone indicates extraction flow rate is
too low or a blocked filter.
--
4. Complete the tests in the "Preoperative tests" section of this
manual.
Connecting active adjustable AGSS
The active adjustable AGSS option flow rate is limited to 30 l/min
with this option.
To use the optional active AGSS installed on the system which uses
the three-liter bag as a visual indicator, connect it as follows:
1. Connect a disposal hose to the DISS connector on the needle
valve on the bottom of the AGSS (underneath). The hose should
be flexible and reinforced to help prevent kinking and crushing.
2. Attach the other end of the hose to the hospital disposal system.
3. Attach the three-liter bag to the 30 mm auxiliary 1 port on the
bottom of the AGSS.
4. Adjust the flow rate to match the amount of gas being
scavenged. Use the bag as a visual indicator when adjusting the
Note
8 Setup and connections
2067226-001 8-23
