Using the brake
The central brake holds the system in place.
Do not use the brake while moving the anesthesia
system. This could cause the machine to tip over. Only
use the brake to keep the system in place.

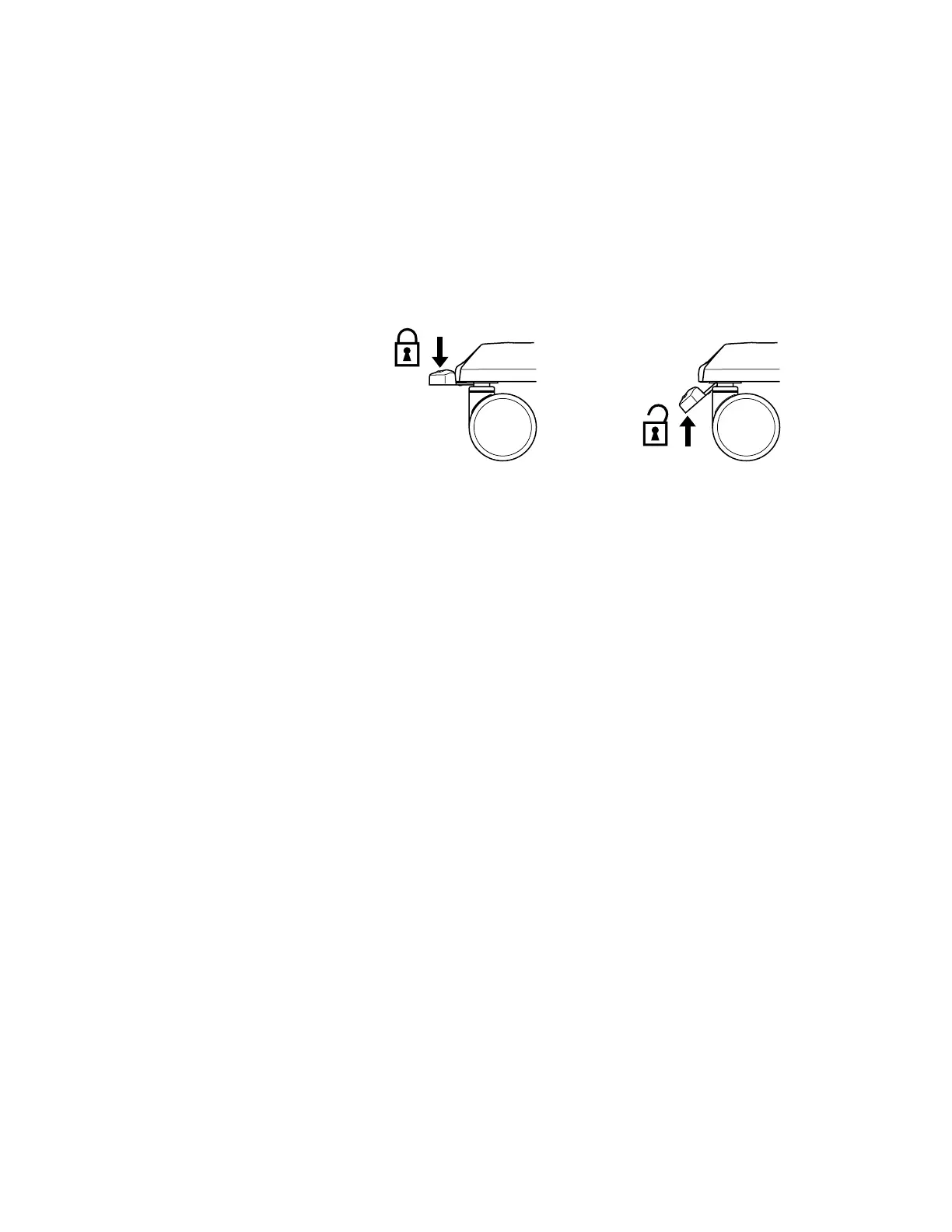

1. Push down on the brake pedal to lock the system in place.
2. Lift up on the brake pedal to release the brake.
Using the O2 flush button
The O2 flush button supplies a high flow of O2 to the breathing
system.
1. Push the O2 flush button to deliver a high flow of O2.
2. Release the O2 flush button to stop the delivery of a high flow of
O2.
Positioning the display
The display can be moved for optimal viewing.
1. Unlock the display arm.
2. Raise or lower the display arm to adjust the height of the
display.
3. Lock the display arm.
4. Rotate the display arm toward or away from the system to adjust
the horizontal position of the display.
5. Tilt the display up or down to adjust the vertical angle of the
display.
WARNING
Aisys CS²
2-4 2067226-001
