Operation
50940411/G0219 102 Printed in U.S.A.
Lift Arm Support
A falling lift arm could result in severe injury or
death.
If the lift arm must be left in the raised position,
BE SURE to properly apply the lift arm support
device.
The operator must not leave the operator's
position if the lift arm is in the raised position
unless the lift arm support device is properly
applied.
A second person on the outside of the machine
is required to assist with applying the lift arm
support.
Engage Lift Arm Support
1. Empty and remove the attachment.
2. Bring the machine to a complete stop on a level
surface.
3. Raise the lift arm as high as it will go.
4. Move the drive controls to the neutral position.
5. Shut off the engine.
The lift arm should remain in the raised position
when the engine is stopped. If the lift arm is
observed moving from the raised position, stay
in the operator’s position, lower the lift arm and
exit the machine. Have the machine serviced by
an authorized dealer before operating again.
6. Move the lift/tilt controls to verify that the
controls do not cause movement of the lift arm
and hitch plate.
7. Raise the safety bars/arm rests to apply the
parking brake and lock out the hydraulic
controls.
8. Stay in the machine sitting in the operator’s
position. A second person, on the outside of the
machine, must:
a. Remove retaining fastener (Y, Fig. 96) secur-
ing lift arm support (Z) in the storage posi-
tion.
b. Position the lift arm support (Z, Fig. 97) over
the lift arm cylinder rod (X, Fig. 96 and Fig.
98).

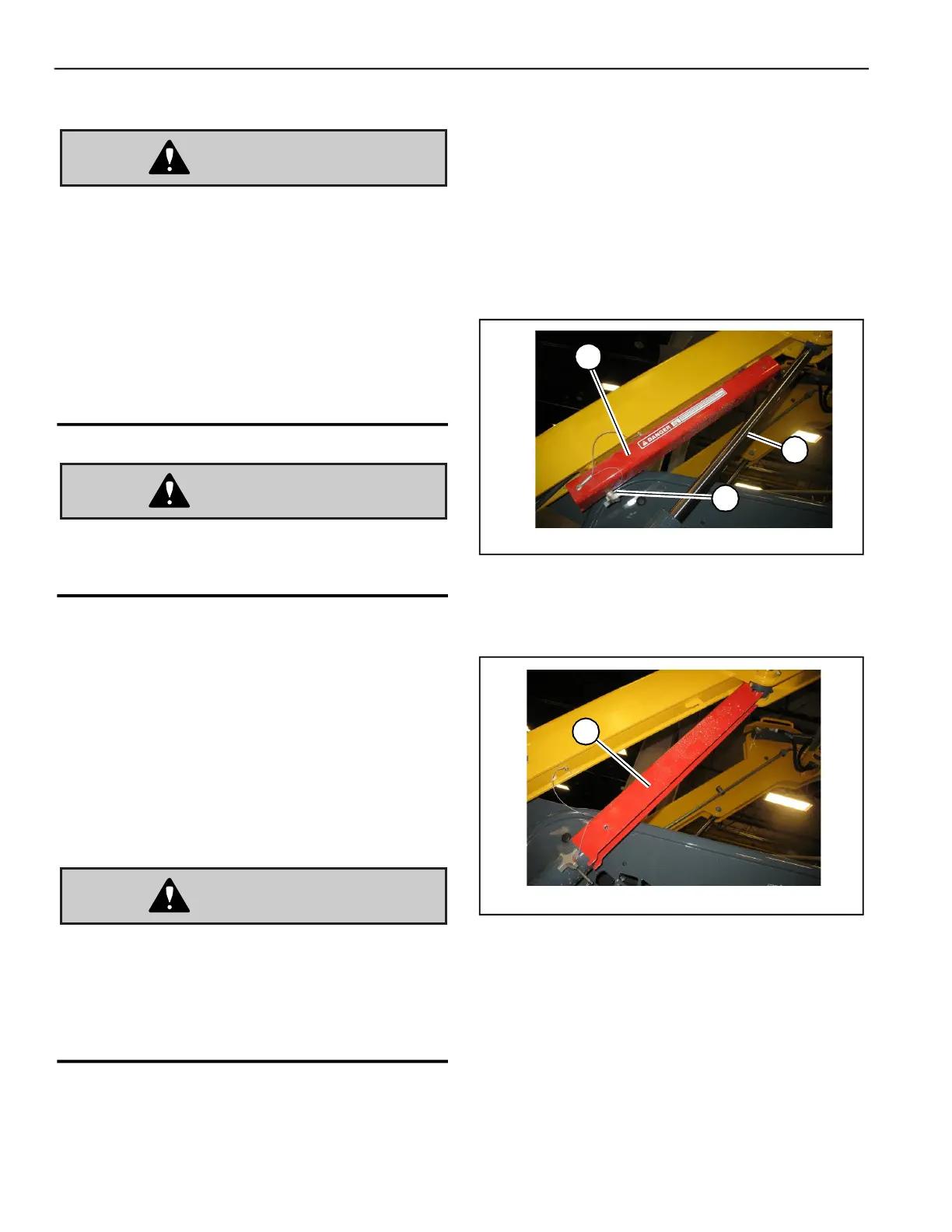

Fig. 96 – Lift Arm Support in Storage Position
Y
Z
X
Fig. 97 – Lift Arm Support Applied
Z
To Next Page
