Seat Forward and Back Horizontal
Adjustment
While sitting in the operator’s seat, pull up on
handle (G, Fig. 27). Move the seat and control lever
base forward or back as desired. Release bar (G)
when the seat is in the desired position. Make sure
the seat is locked in position after adjusting.
Seat Height Vertical Height/Weight Sus-
pension Adjustment
Air Suspension
While sitting in the operator’s seat, press the left/
right side of toggle switch (H) as necessary to
compensate for the drivers weight and preferred seat
suspension stiffness. Toggle switch (H) to the left
(K) to reduce support; toggle switch to the right (J)
to increase support.
Mechanical Suspension
While sitting in the operator’s seat, turn knob (E,
Fig. 27) as necessary to center the black line on the
yellow background in indicator (F).
Seat Belt
ALWAYS fasten the seat belt securely and
properly. Never operate the machine without the
seat belt fastened around the operator.
Keep the seat belt clean; dirt can impair seat
belt operation. Check seat belt condition
regularly and have damaged or worn belts
immediately repaired by an authorized
workshop.
After an accident, the seat belt strap is stretched
and must be replaced with a new strap installed
by an authorized workshop.
Make sure the seat belt is not twisted when it is
fastened, and that it is fastened over the hips and not
the stomach.
Fasten the seat belt tightly and securely. Remove
hard, edged or fragile objects from your pockets or
clothes that might lie between the seat belt and your
body.
Fastening/Unfastening the Seat Belt
Fasten the seat belt around your hips and waist and
insert tongue (A, Fig. 28) into clasp (B) until it
clicks securely in place. Slack in the seat belt should
automatically retract into seat belt spool (K).
If the seat belt spool does not retract slack in
the seat belt, have it serviced immediately. Do
not operate the machine until the seat belt is
repaired.
Unfasten the seat belt by pressing button (D).

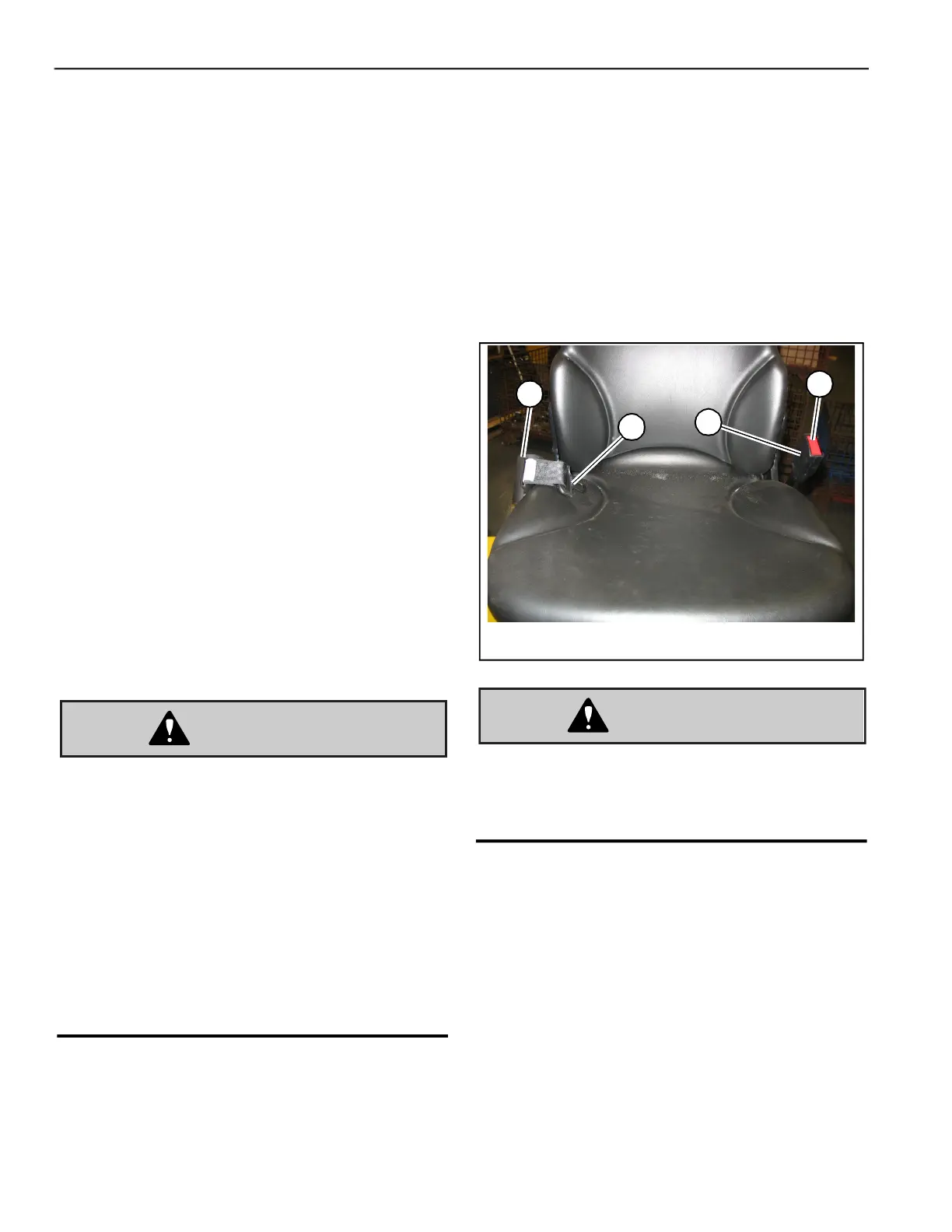

Fig. 28 – Seat Belt
B
A
D
K
