Maintenance
Printed in U.S.A. 147 50940411/G0219
General Lubrication
IMPORTANT: Use of lubricants not corresponding to manufacturer recommendations may invalidate war-
ranty claims. Always dispose of waste lubrication oils and hydraulic fluids according to environmental laws
or take to a recycling center for proper disposal. DO NOT pour fluids onto the ground or down a drain.
Refer to the following figures for grease fitting locations. See “Fluids/Lubricants Types and Capacities” on
page 35 for proper grease specifications. Wipe dirt from the fittings before applying grease to prevent
contamination. Replace any missing or damaged fittings. To minimize dirt build-up, avoid excessive
greasing.

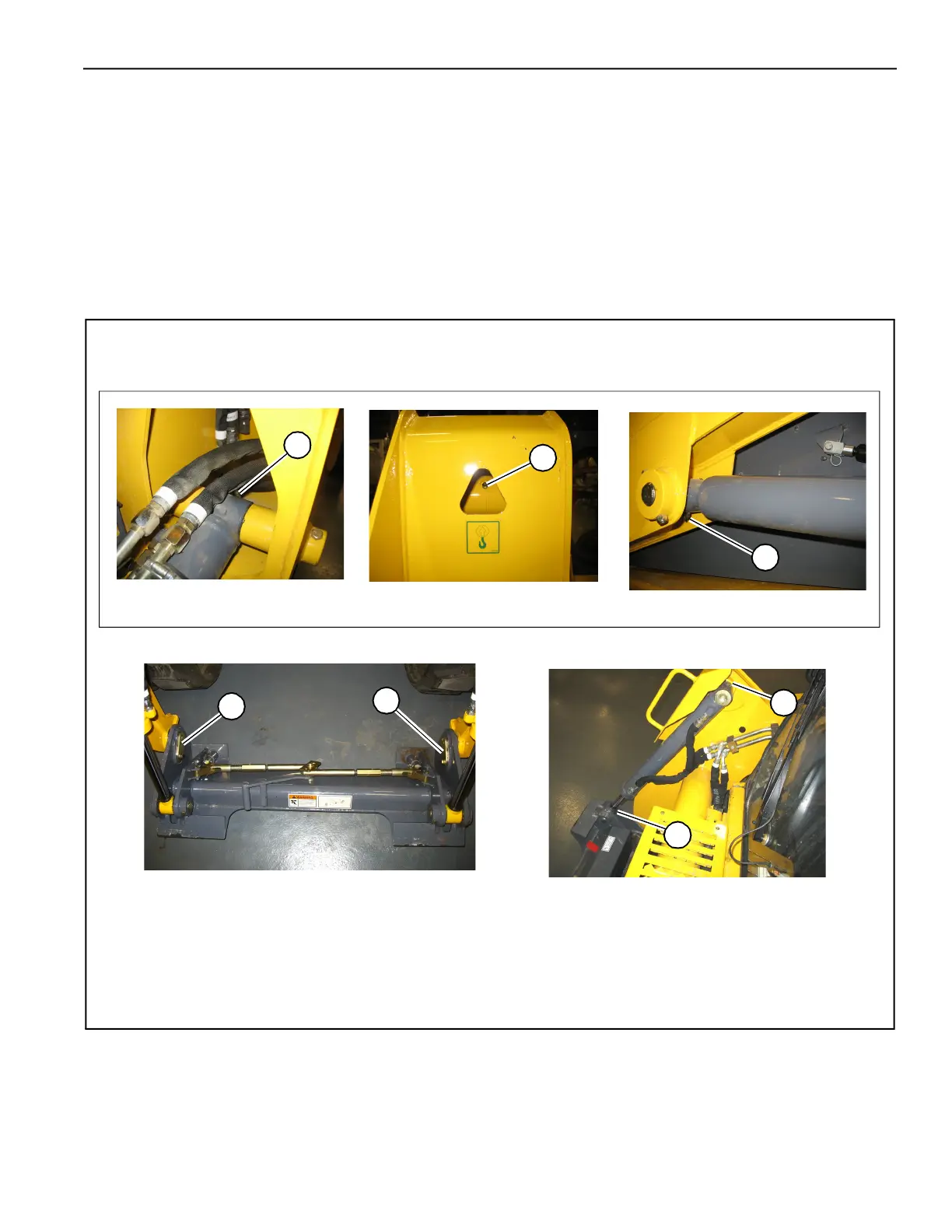

Fig. 157 – Lubrication
Both Sides
A
B
C
F
E
D
D
A – Back Lift Cylinder Grease Fittings (2)
B – Top Lift Arm Grease Fittings (2)
C – Front Lift Cylinder Grease Fittings (2)
D – Attachment Hitch Pivot Points (2)
– NOTE: Lubricate (D) from inside of pin.
E – Bottom Tilt Cylinder Grease Fittings (2)
F – Top Tilt Cylinder Grease Fittings (2)
Lubricate Daily or After Every 10 Hours of Operation
