Maintenance
Printed in U.S.A. 149 50940411/G0219
Lower ROPS/FOPS
1. Lift the ROPS/FOPS up slightly until tilt prop
bar (P Fig. 161) clears the slot at the back of
bracket (F). Push tilt prop bar (P) forward to
allow the ROPS/FOPS to tilt forward and down.
2. Slowly and carefully tilt the ROPS/FOPS
forward and down.
Stay clear from underneath the ROPS/FOPS as
it is tilted down. Injury to limbs can result.
3. Secure the ROPS/FOPS to the chassis with
anchor bolts and washers (M, Fig. 162). Torque
anchor bolts to 75 lb.-ft. (102 Nm).
Always secure the ROPS/FOPS to the chassis
with anchor bolts and washers (M, Fig. 162)
before driving or using the machine.

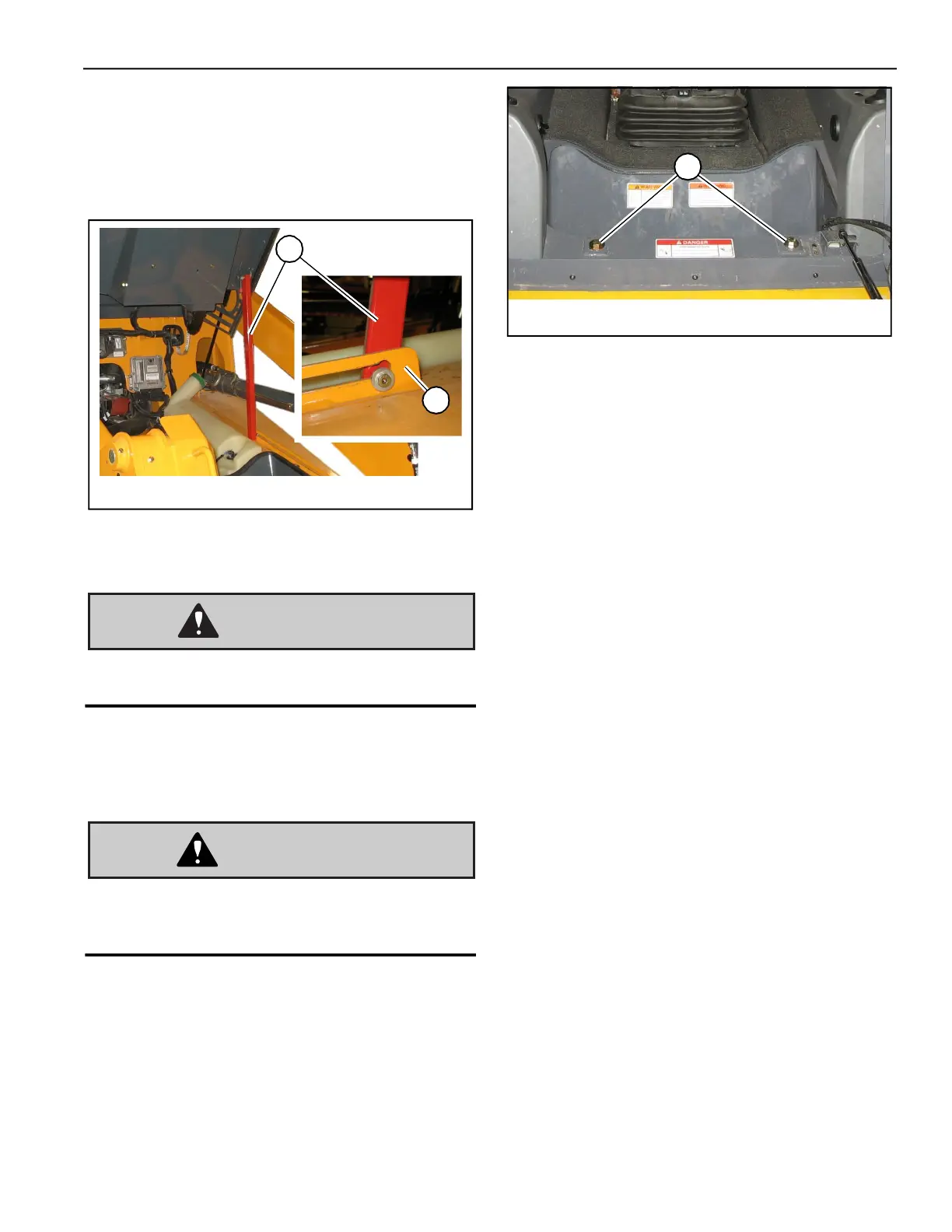

Fig. 161 – ROPS/FOPS Tilt Prop Bar
P
F
Fig. 162 – ROPS/FOPS Anchor Fasteners
M
