Operation
50940411/G0219 72 Printed in U.S.A.
Cab Door Emergency Exit
Later machine cab doors can be removed from
inside the cab to allow emergency exit.
1. Remove the locking clip (W, Fig. 45) from the
door strut at the strut bracket. Disconnect the
door strut from the bracket.
2. Pull cable tie (C) out of the door gusset.
3. Open the door as far as possible. Wiggle and lift
the door off the hinges. Set the door aside in a
stable position and exit the machine.
Cab Door Removal
If the cab door is removed, the jumper wire inside
the left door pillar must be repositioned or the
machine will not operate.
1. Unplug door switch wire connector (B, Fig. 46)
from “Door Switch” wire connector (D).
2. Transfer jumper (J) from “Wiper Interlock” wire
connector (E), to “Door Switch” wire connector
(D).
Fold-Up Door (Option)
Opening the Fold-Up Door from the Outside:
a. Unlock the door, if necessary.
b. Push in the two buttons (A, Fig. 47) located
on the outside of the lower door panel.
NOTE:
Use the tabs located under the buttons for
extra leverage.
c. Pull up on the handle located at the bottom
of the door.
d. Push the door up to the ceiling of the cab
until it latches into place.
Closing the Fold-Up Door from the Outside:
a. Using small handles (B, Fig. 48), located on
the underside of the door, pull the handles
out and down sharply.
b. Continue to pull down until reaching the
bottom of the door frame, then use grab
handle (C, Fig. 48) to push the door against
the door frame until it latches.

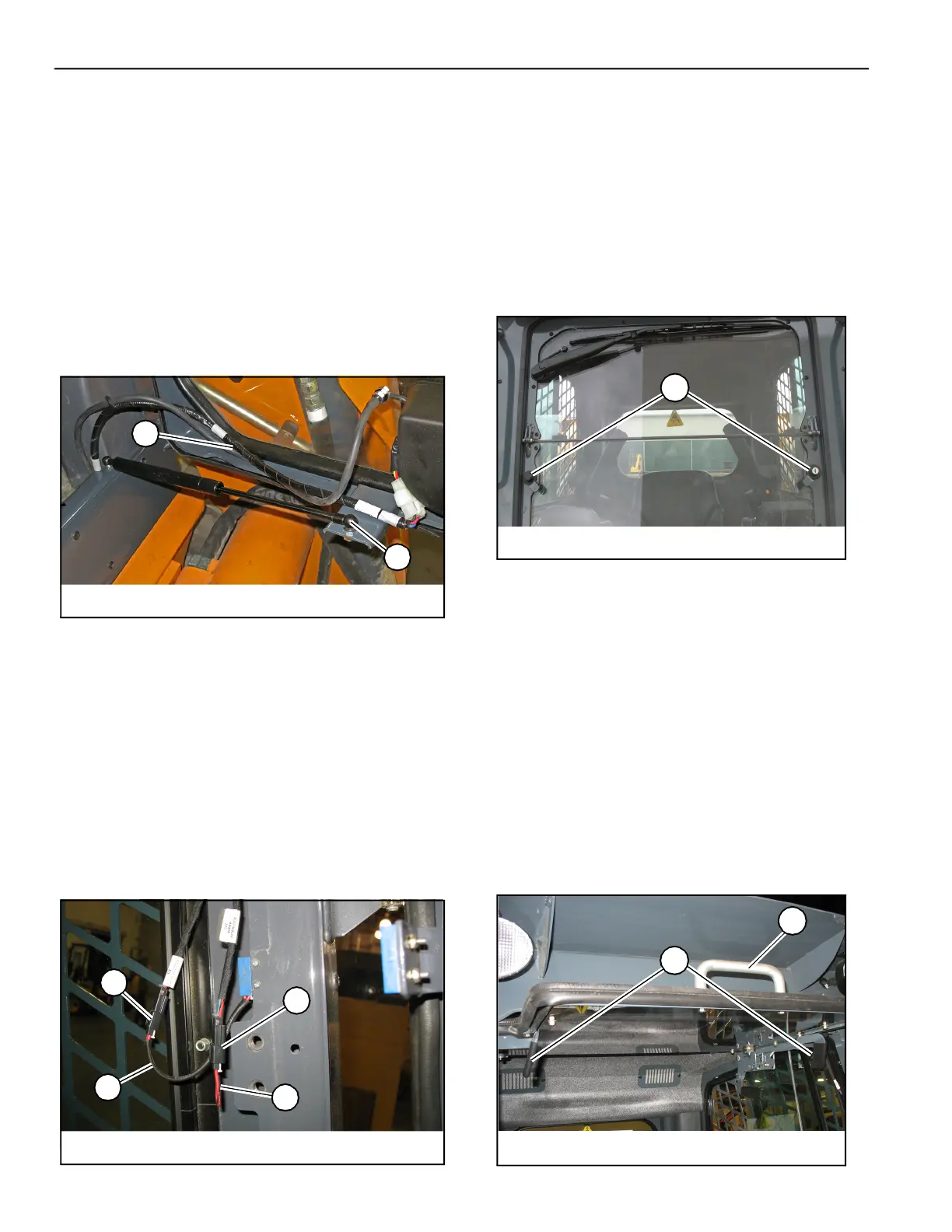

Fig. 45 – Door Strut
W
C
Fig. 46 – Door Switch Connection
E
D
J
B
A
Fig. 47 – Opening the Door
B
C
Fig. 48 – Closing the Door From the Outside
