Controls
Printed in U.S.A. 51 50940411/G0219
Low Fuel Screen
Automatically displays when the fuel level is low.
Required Maintenance and Error Code Screens
Maintenance Required Screen
Displays in the screen rotation along with status screens when scheduled
maintenance is required. See page “Maintenance Schedule” on page 123.
To dismiss this screen, press and hold the interface button (Z, Fig. 8). This
screen will display in rotation when scrolling through the status screens. After
stepping through all screens once, the display will freeze on this screen.
Engine Error Code Screen
Displays in the screen rotation along with status screens when engine errors
occur. See “Engine Error Codes” on page 172.
One error is displayed on a single screen; additional errors are displayed after
stepping through all screens once.
Error codes are dismissed when the underlying problems are solved.
Aftertreatment Error Code Screen
Displays in the screen rotation along with status screens when DPF emissions
errors occur.
Drive / Valve Error Code Screen
Displays in the screen rotation along with status screens when drive / valve
system errors occur. See “Drive and Valve Error Codes” on page 185.
Limp Mode Activated Screen
Limp mode allows limited drive function when drive system errors (3-10) occur
which disable the drive system for safety reasons. Two limp mode codes can be
displayed –”38” and “39”. See “Travel Drive Error Condition Operation (Limp
Mode)” on page 94.
Module Communication Error Code Screen
Displays in the screen rotation along with status screens when module
communication errors occur.
DPF Stationary Regeneration Request Screen
Models RT175 and RT210 with Tier 4 Engines
Displays when stationary Diesel Particulate Filter (DPF) regeneration is required.
See “Diesel Particulate Filter (DPF) Regeneration Procedures” on page 78.

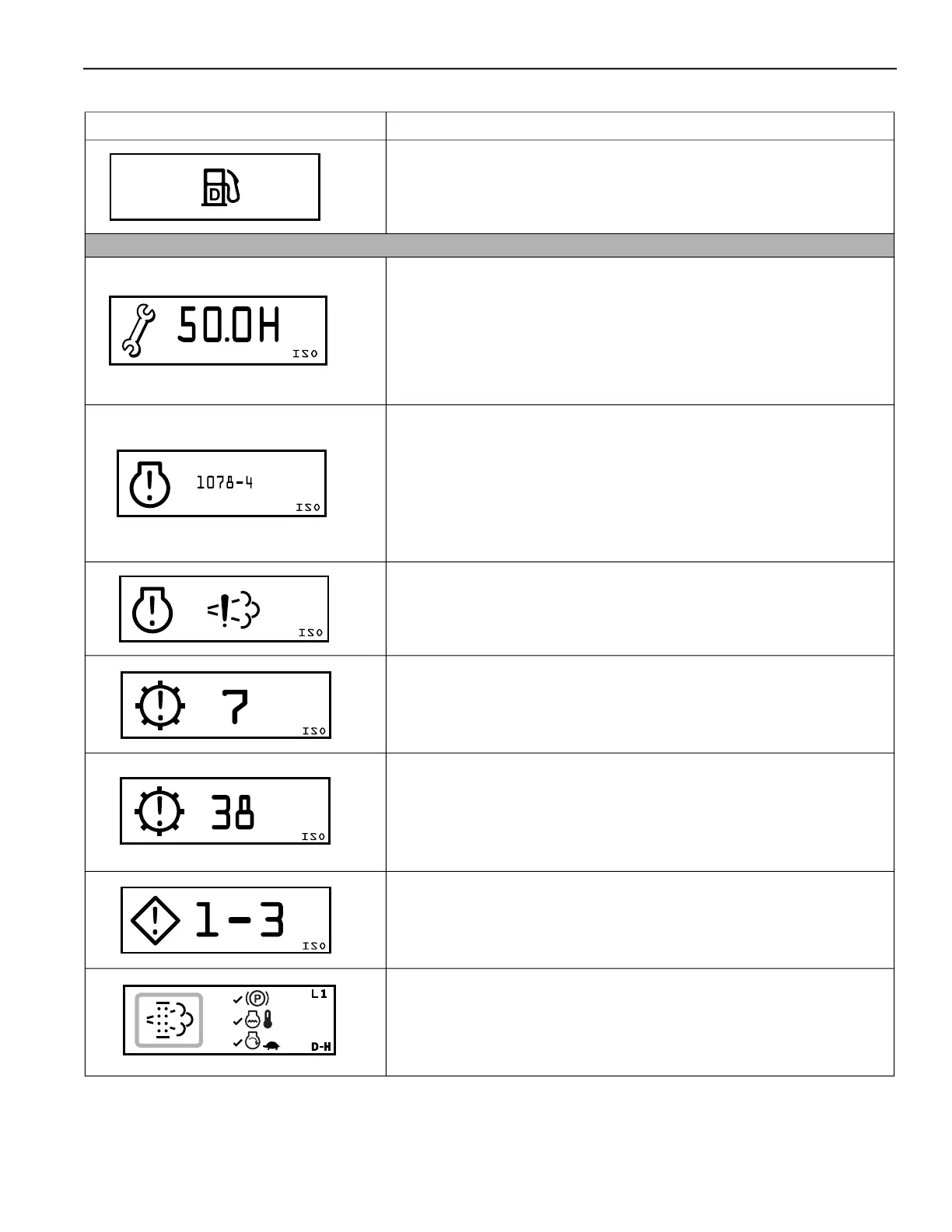

Table 24: Status, Maintenance and Error Code Screens
Screen Access/Description
