COMMISSIONING
Part No.: 4417340 Revision 1 Service Manual 197
954 SmartServo FlexLine
The correct tank name should be entered in the identification entity to
display the tank name in the initial screen. Otherwise, it will display
underscore characters in the place of the Tank name. The special
character allowed in the Tank name is “_”.

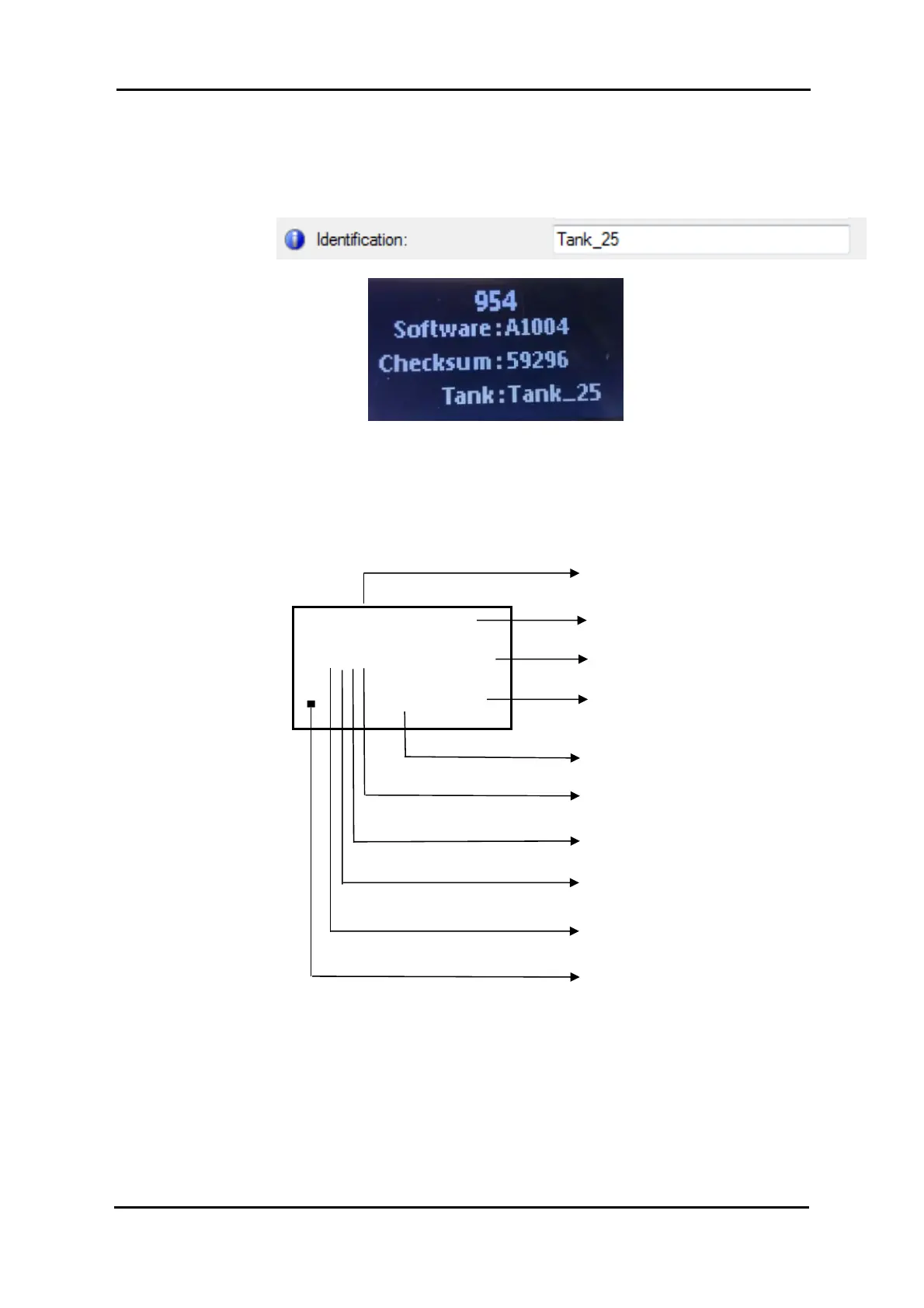

7.3.11.3.4 TII-LCD Level and Temperature Display Screen
This section describes the format of Level and Temperature screen and
various screens based on the configuration of entities.
LLLLLLLLL ll
aasdoo ###
TTTTTTT tt
Level Unit as per Configuration
Level Value
Level Type as per Configuration
Temperature Value
Temperature Unit/Status
Operational Status
Displacer Status
Motor Limit switch Status
Alarm Status
Refresh Indicator
To Next Page
