SERVICE TOOLS
40 Service Manual Part No.: 4417340 Revision 1
954 SmartServo FlexLine
5.1.5.1.9 The Password Screen
The [commands] and [commissioning] menus are password-protected. The
[password] screen (see Figure 5-8) appears when you enter the
[commands] or the [commissioning] menu.
When the password is entered correctly (only once for both menu
entries), you can change the values. 15 minutes after the last button is
pressed, the password needs to be re-entered.

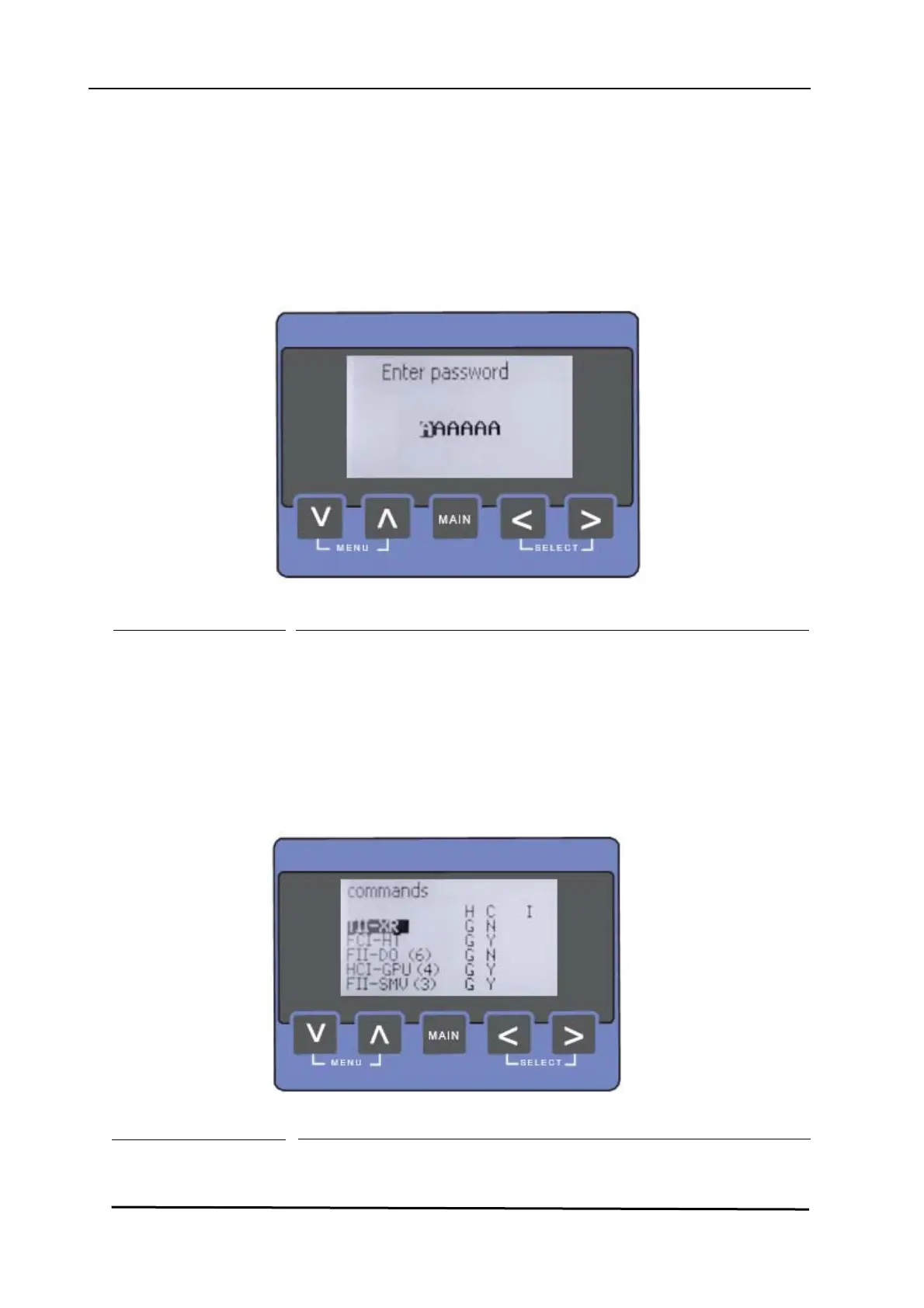

Figure 5-8 The password screen
5.1.5.1.10 Commands Menu Screens
 The [commands] menu starts with the [board list] screen
(see Figure 5-9).
You can navigate through the board list by using the up and down
buttons. A board can be selected by simultaneously pressing the left +
right button
Figure 5-9
The board list screen
