Procedure
Step 1 Open the front or rear door of the cabinet.
Step 2 Remove the nuts from the gas spring using an adjustable wrench.
Step 3 Remove the gas springs.

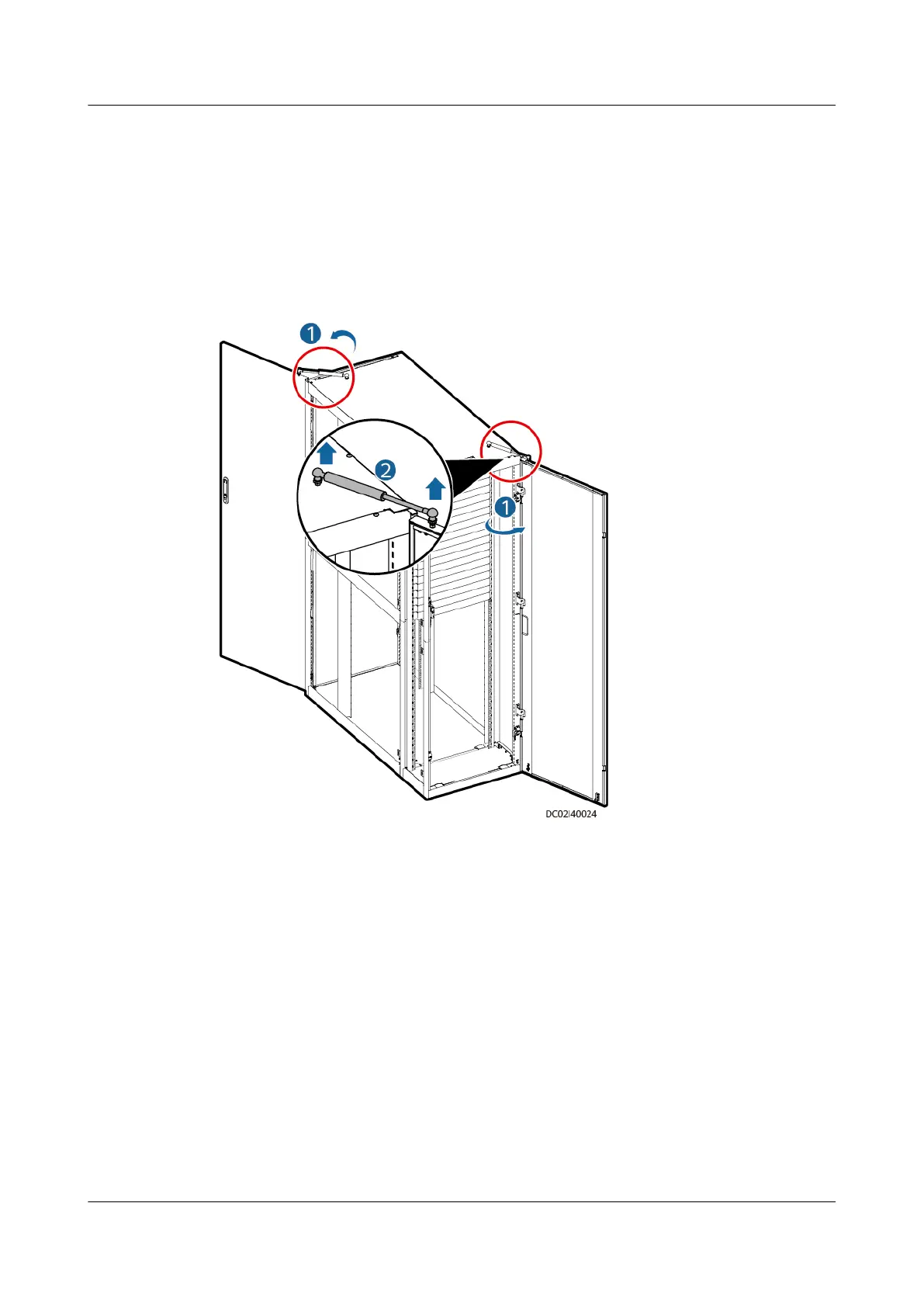

Figure 6-2 Removing a gas spring
Step 4 Tighten the new air spring using an adjustable wrench.
----End
6.4.1.3 Replacing a PDU2000
Prerequisites
● Tools: Phillips screwdriver, step ladder
● Material: A spare PDU2000 of the same model is available and functional.
Context
A PDU2000 is installed at the rear door of a cabinet.
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 6 O&M
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 180
