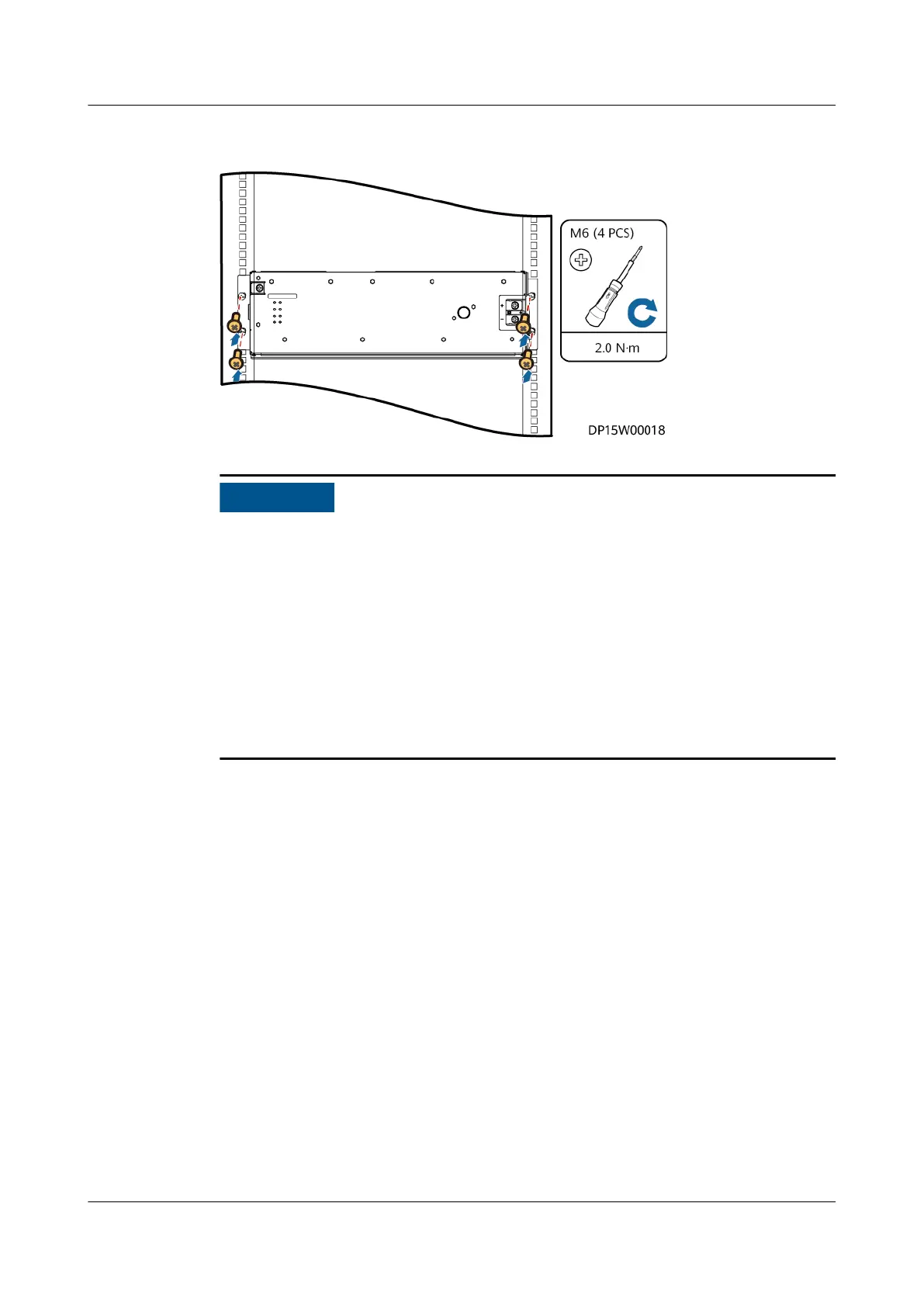

Figure 4-13 Installing a lithium battery
● The lithium battery weighs about 43 kg. Check the load-bearing capability of
the rack tray before installation.
● The lithium battery is 396 mm deep. Check the depth of the rack before
installation.
● The lithium battery can be installed in a 19-inch rack with guide rails and a
tray. Check whether the load-bearing capability meets requirements.
● If multiple lithium batteries are installed, certain clearances should be reserved.
The space for each lithium battery should be at least 3 U. The lithium batteries
cannot be directly stacked or vertically placed.
● Install lithium batteries from bottom to top.
Step 2 Install the protective covers for the positive and negative poles of the lithium
batteries.
Step 3 Install other lithium batteries in the same way.
----End
4.2.5.2 (Optional) Installing Busbars
Prerequisites
If there is more than one lithium battery, install busbars.
Procedure
Step 1 Install busbars.
1. Open the cabinet rear door.
2. Install oating nuts at the busbar installation position.
3. Secure the busbar to the installation position using screws.
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 4 Installation Guide
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 69
