3.4.3.1.2 Main Control Module

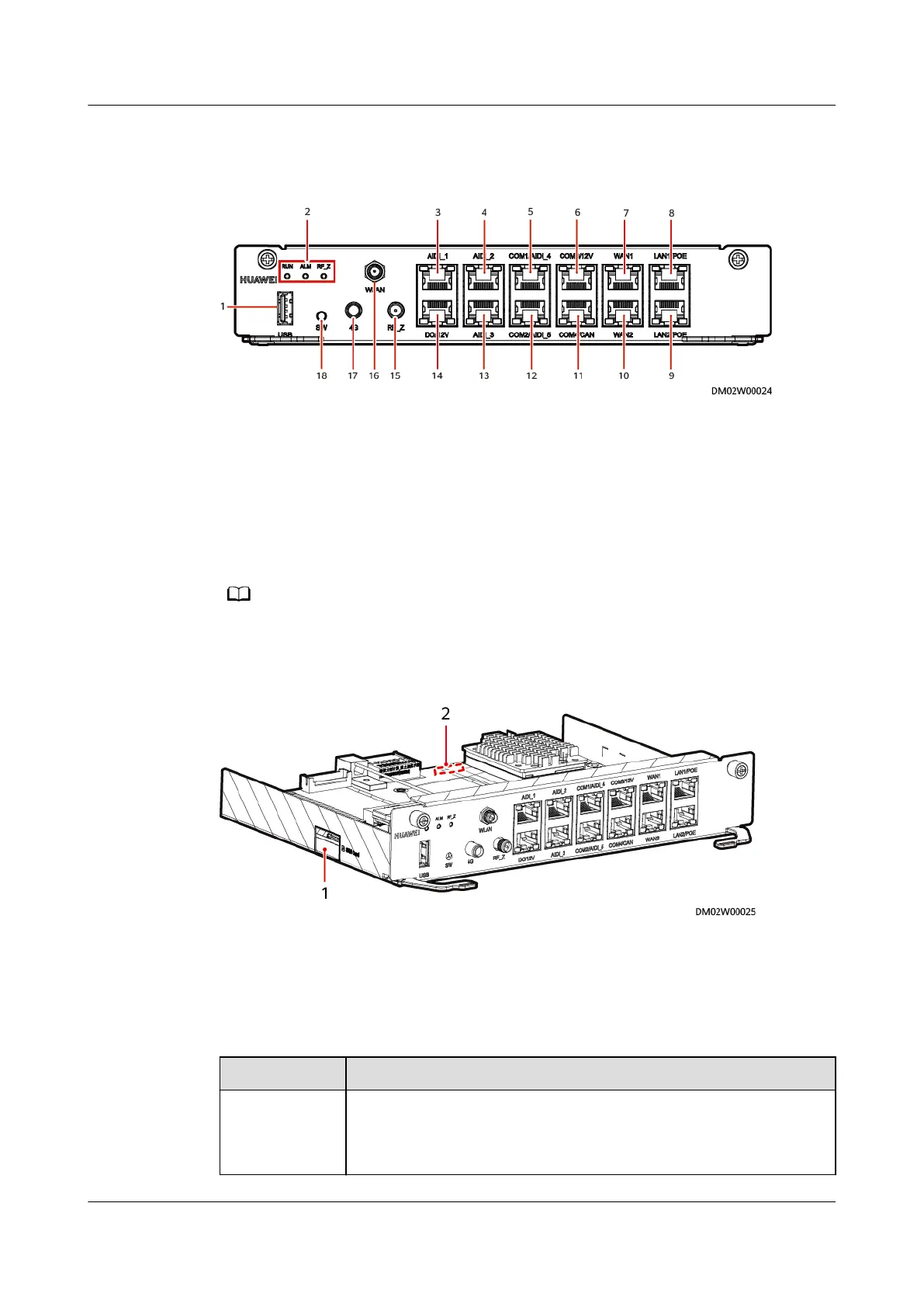

Figure 3-9 ECC800-Pro collector main control module
(1) USB (2) Status indicator (3) AIDI_1 (4) AIDI_2
(5) COM1/AIDI_4 (6) COM3/12V (7) WAN1 (8) LAN1/POE
(9) LAN2/POE (10) WAN2 (11) COM4/CAN (12) COM2/AIDI_5
(13) AIDI_3 (14) DO/12V (15) RF_Z (802.15.4) (16) WLAN (reserved)
(17) 4G (18) SW button
NO TE
The WLAN port is reserved and cannot be connected to a WLAN antenna for WLAN
communication.
Figure 3-10 ECC800-Pro main control module (side view)
(1) SIM card slot
(2) Micro SD card slot (reserved)
Specications
Table 3-12 Technical specications of the ECC800-Pro main control module
Item
Specications
Power input ● Supports one AC input.
● Rated voltage: 200–240 V AC
● Rated frequency: 50/60 Hz
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 3 System Architecture
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 30
