3.2 Power Supply and Distribution System
3.2.1 Overview
The UPS supplies uninterruptible power to IT loads by means of lithium batteries
when the external power supply fails.

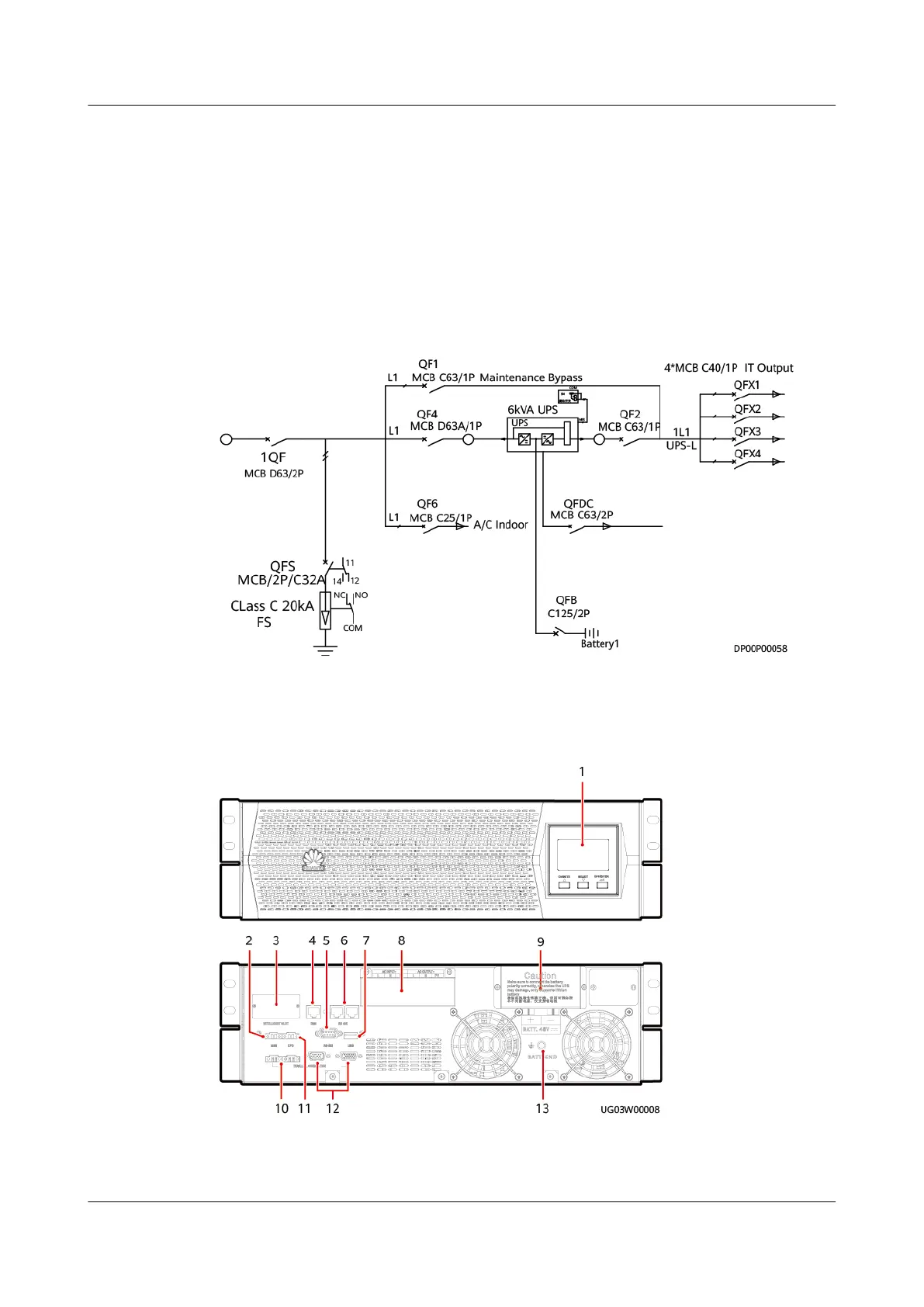

Figure 3-1 Power distribution principles in the UPS scenario
3.2.2 6 kVA UPS
Figure 3-2 Front and rear views of a 6 kVA UPS
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 3 System Architecture
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 20
