Hydac CS1000 series User Manual

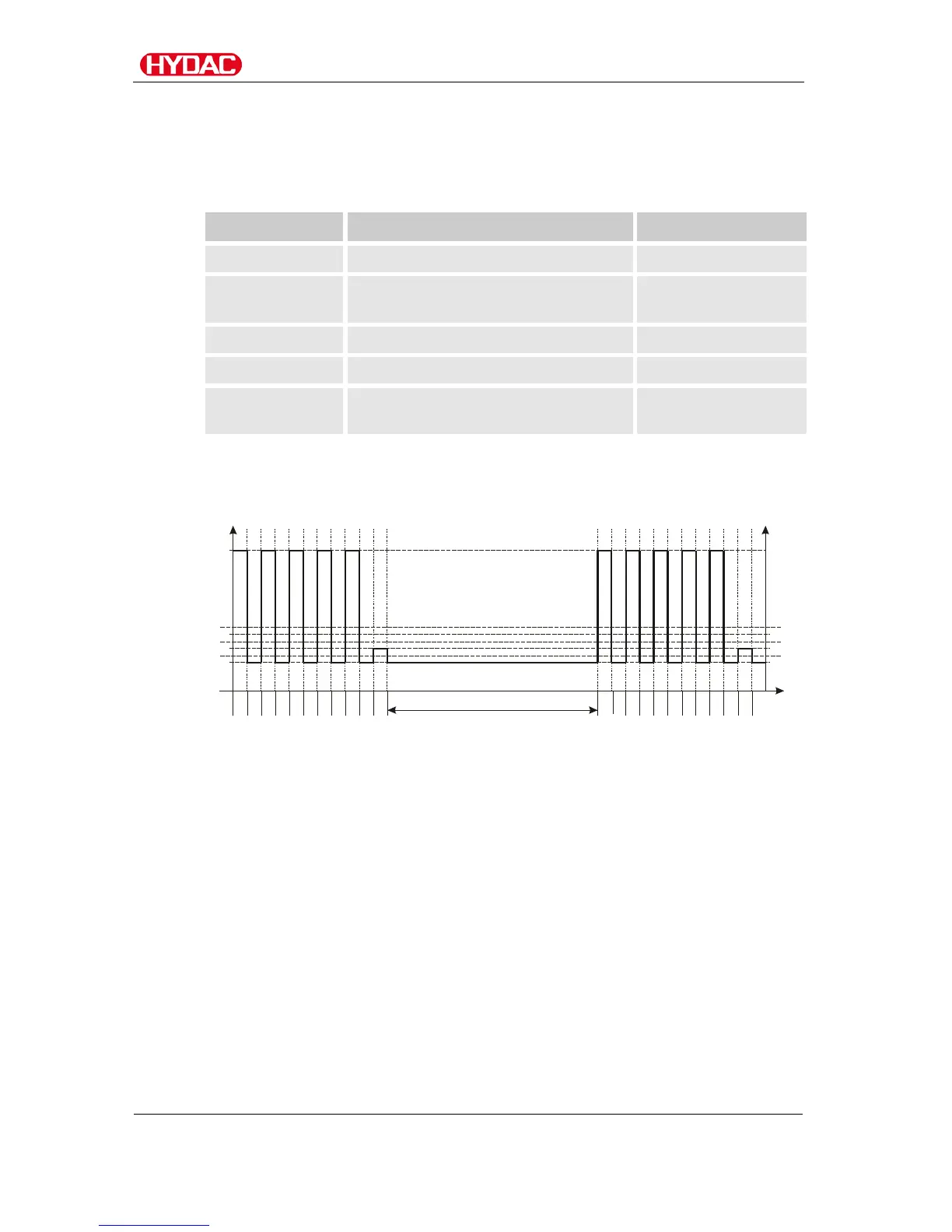

Status Messages
Analog signal for HDA 5500
HDA Status Signal 5 Table
The current or voltage of the analog signal (5) is, depending on the status of
the CS1000, as shown in the table below.
Current I
Status
Voltage U
I = 5.0 mA The CS is functioning correctly U = 2.5 V
I = 6.0 mA Device error /
The CS is not ready
U = 3.0 V
I = 7.0 mA The flow rate is too low U = 3.5 V
I = 8.0 mA ISO <9 <8 <7 U = 4.0 V
I = 9.0 mA No measured value
(The flow rate is not defined)
U = 4.5 V
If the status signal is 6.0 / 7.0 / 9.0 mA or 3.0 / 3.5 / 4.5 V, signals 1 to 4 are
output with 20 mA or 10 V. Example:
I (mA)
U (V)
t (s)
4
2
6
3
9
4,5
10,0
7
5
3,5
2,5
8
4
20
2 2
2 2 2 2 2 2 2 2 2 2 2 2 2
2 2 2 2 2 2 2
30
1
10
2 23 3
4 45 50
