Hydac CS1000 series User Manual

Reading the analog output
HDA.NAS – Analog signal NAS for HDA 5500
The HDA.NAS signal consists of 4 measured values (Start / NAS 2 / NAS 5 /
NAS 15 / NAS 25 / Status) which are output sequentially. Synchronization
with the downstream control unit is a prerequisite.

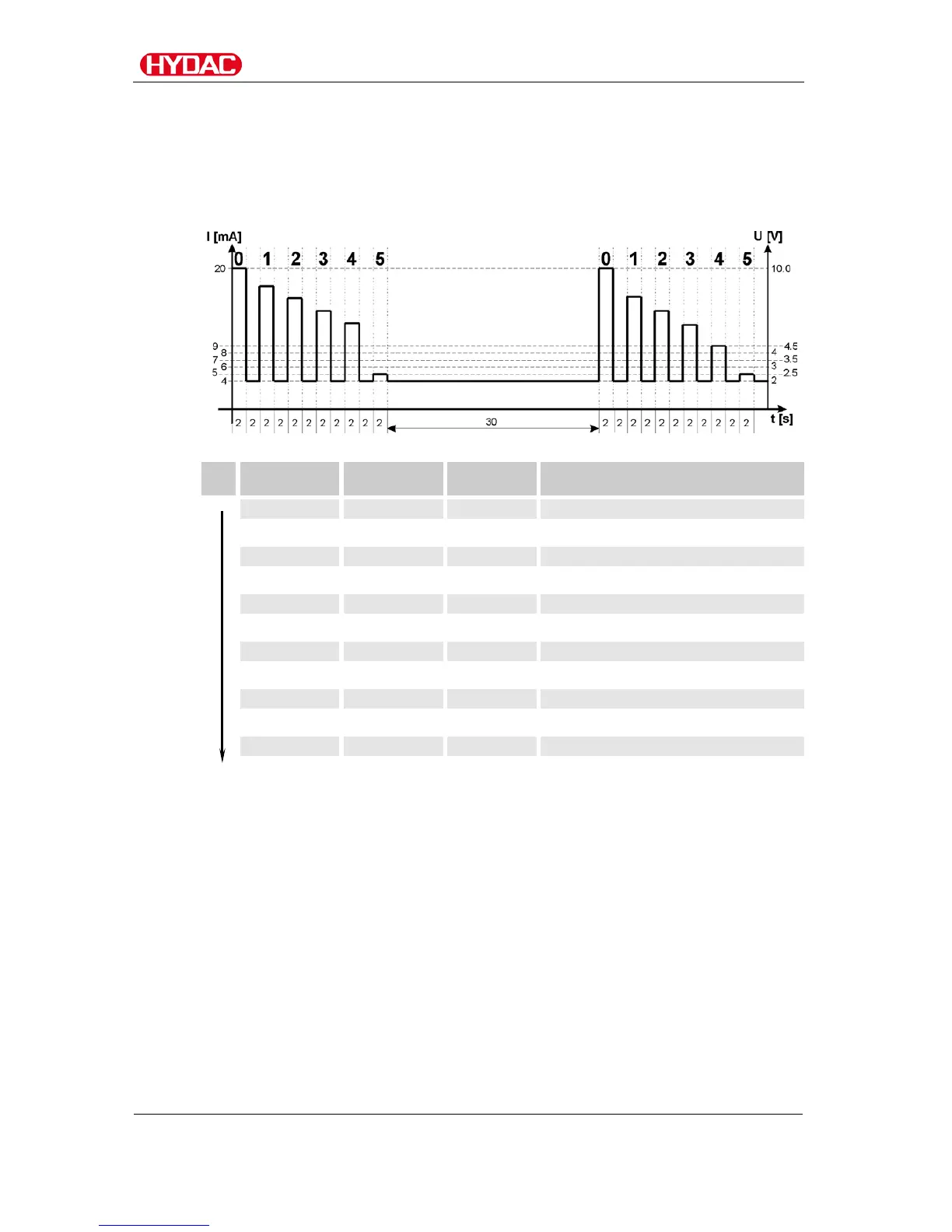

The signal output is as follows:
Time
Measured
variable
Signal duration
in s
Current/Voltage
Start signal 0 -- 2 20 mA / 10 V
Pause 2 4 mA / 2 V
Signal 1 2-5 µm 2 Current / Voltage for signal
Pause 2 4 mA / 2 V
Signal 2 5-15 µm 2 Current / Voltage for signal
Pause 2 4 mA / 2 V
Signal 3 15-25 µm 2 Current / Voltage for signal
Pause 2 4 mA / 2 V
Signal 4 > 25 µm 2 Current / Voltage for signal
Pause 2 4 mA / 2 V
Signal 5 Status 2 Current/voltage for signal
Pause 30 4 mA / 2 V
ContaminationSensor CS1000
en(us)
Page 98 / 136
BeWa CS1000 3764916d 300 en-us 2017-09-25.docx 2017-09-25
