Hydac CS1000 series User Manual

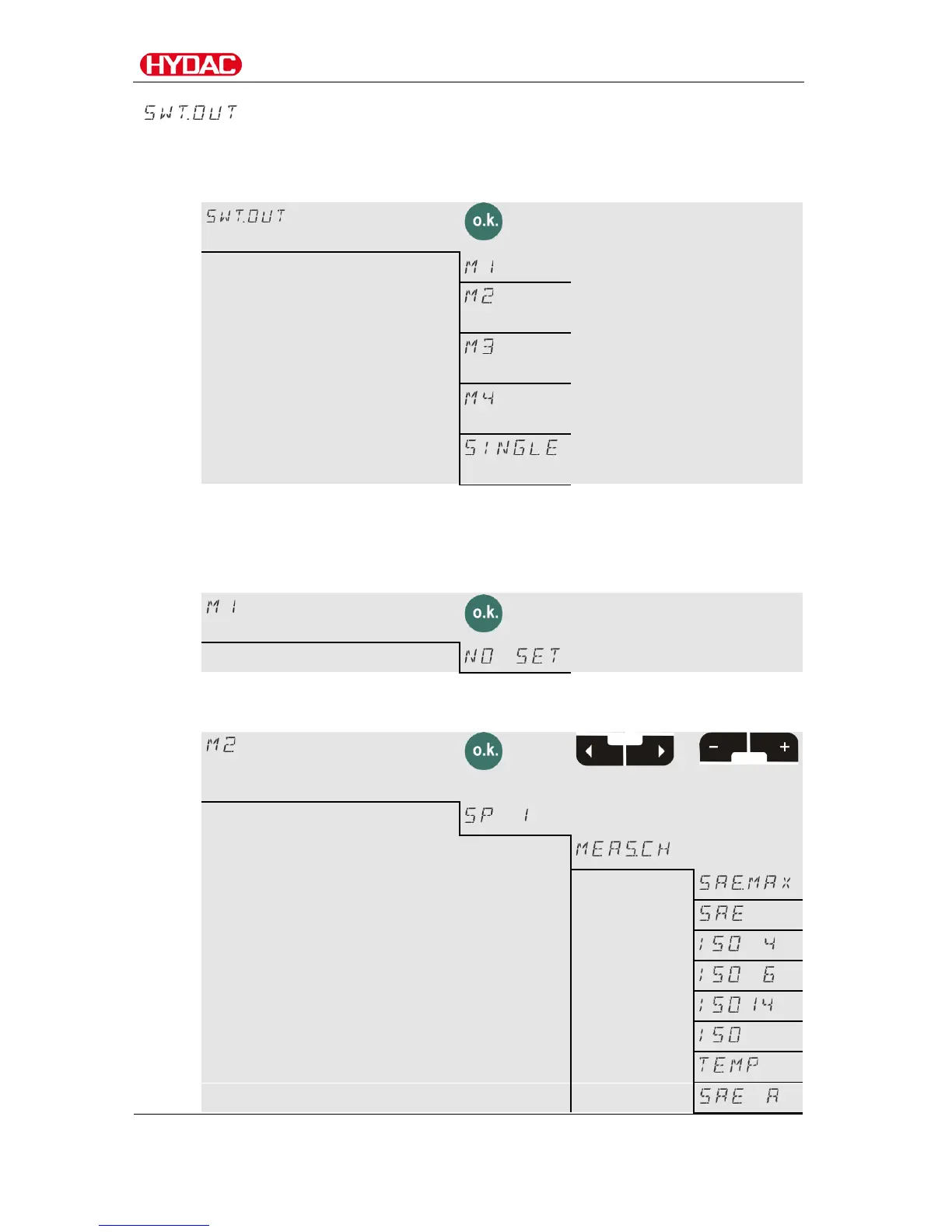

Operating the CS1x2x sensor using the keypad
– Configure switching output
Here you can adjust the behavior of the switching output. The measurement
mode M1 / M2 / M3 / M4 / SINGLE is set in the PowerUp menu and can no
longer be selected here.
Configure switching
output
Description
Continuous measurement
Continuous measurement
and switching
Filter to cleanliness class
and stop
Filter to continuously
monitor cleanliness class
Start single measurement +
stop
Depending on the selection in the PowerUp menu, you can choose from the
following settings:
M1 – Continuous measurement
Continuous
measurement
M2 – Continuous measurement and switching
Continuous
measurement and
switching
ContaminationSensor CS1000
en(us)
Page 47 / 136
BeWa CS1000 3764916d 300 en-us 2017-09-25.docx 2017-09-25
