Reading the analog output
ISO Code, 3-digit

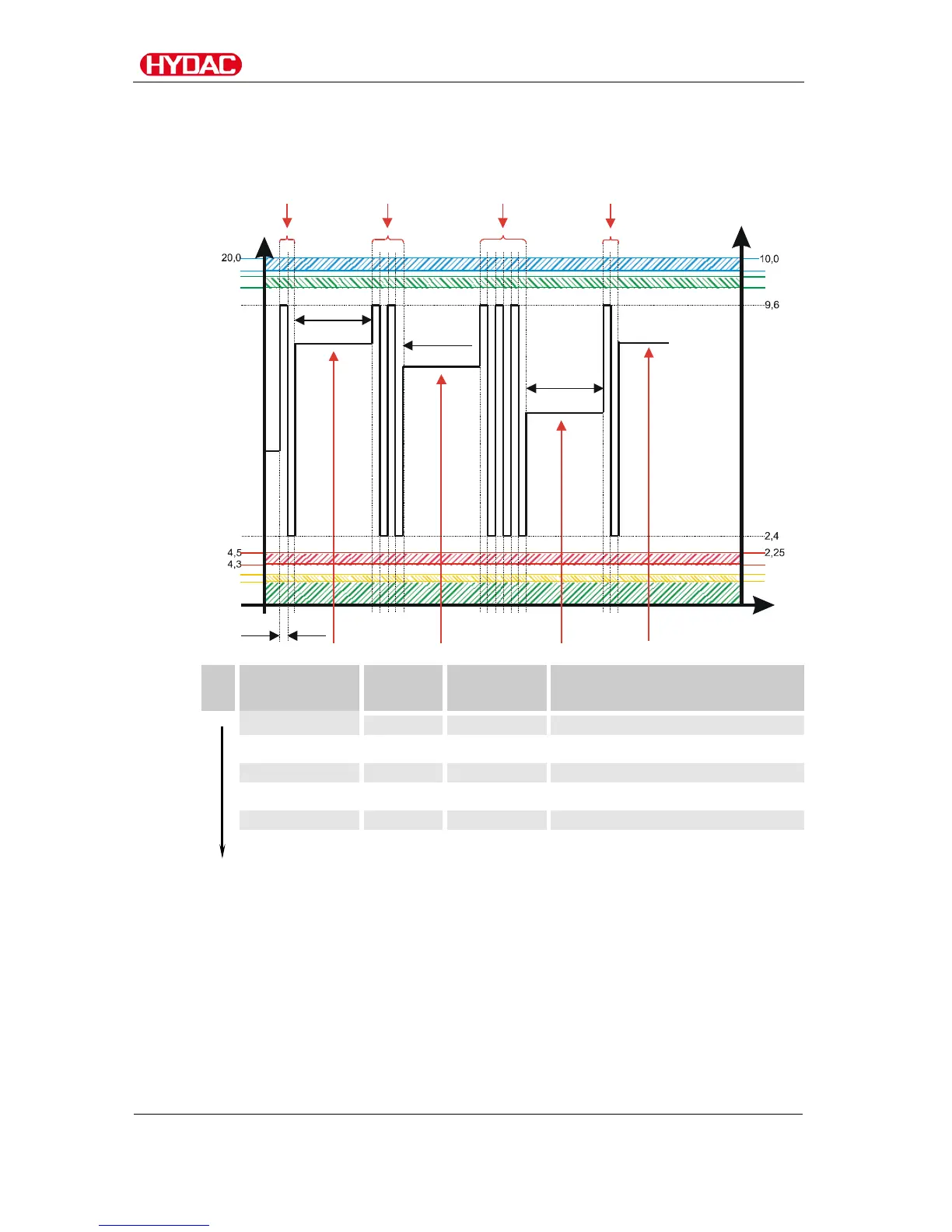

The ISO code signal consists of 3 measured values (>2 µm / >5 µm / >15
µm) which are transmitted time-coded as shown below.
4,0
4,1
I (mA)
1
3
2
4
6
2
5
1
U (V)
t (ms)
4,8
19,2
High
High
Low
Low
300
3000
3000
3000
9,75
19,5
2,15
2,05
2,0
9,85
19,7
0,0
19,8
9,9
Time
Signal Variable
Signal duration
per pulse
in ms
Current (I) / Voltage (U)
1 Identifier >2µm 300 High / Low
2 Measured value >2µm 3000 Current/Voltage for measured value
3 Identifier >5µm 300 High / Low / High / Low
4 Measured value >5µm 3000 Current/Voltage for measured value
5 Identifier >15µm 300 High / Low / High / Low / High / Low
6 Measured value >15µm 3000 Current/Voltage for measured value
