Reading the analog output
SAE A-D
The value is the highest class in any of one of the four SAE A-D
classes
(respectively >4 µm
(c)
, >6 µm
(c)
, >14 µm
(c)
, >21 µm
(c)
).
The signal is updated after the measuring period has elapsed (the measuring
period is set in the PowerUp menu, factory setting = 60 s).
The signal is output depending on the maximum SAE class.
Example:
SAE classes
(SAE A-D)

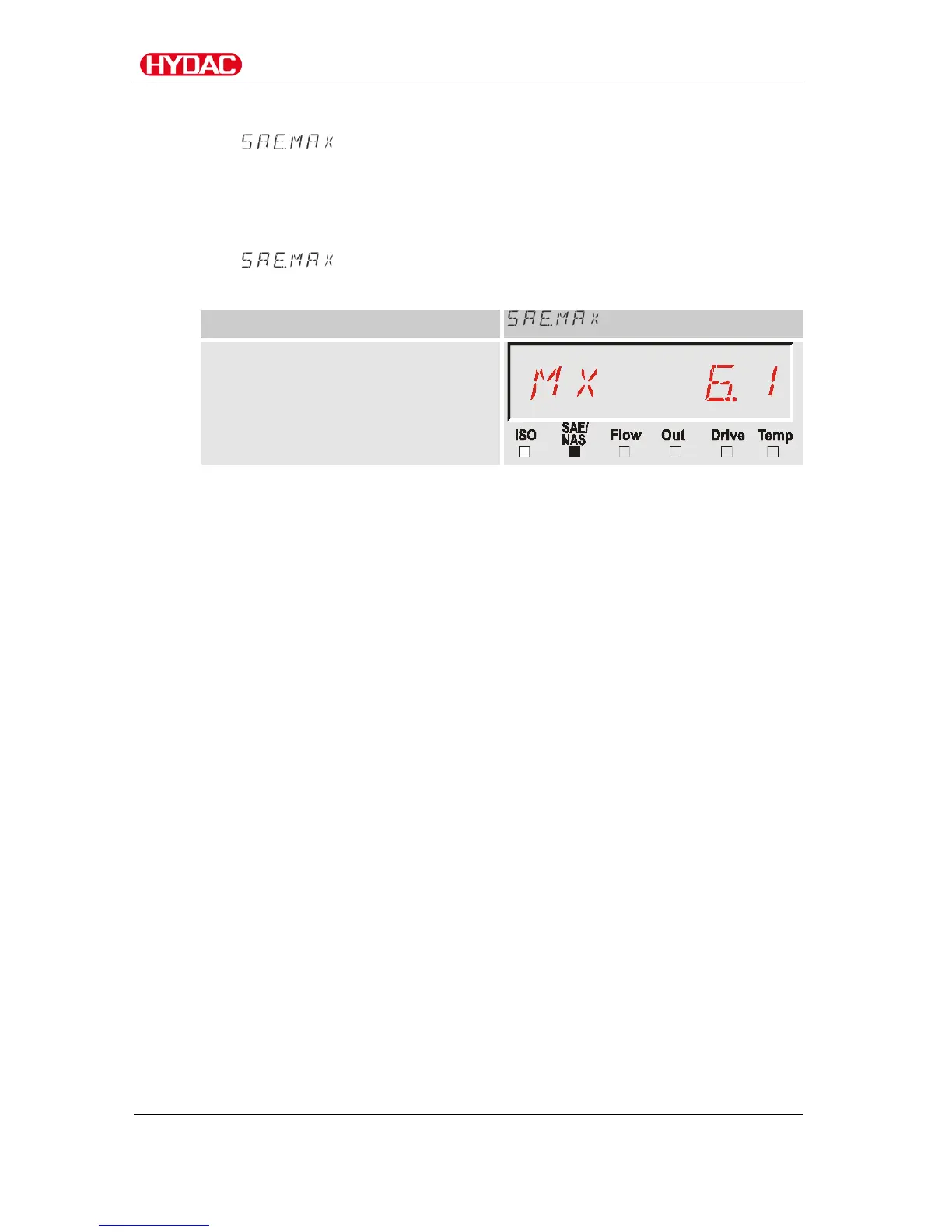

SAE 6.1A / 5.7B / 6.0C / 5.5D
For basic information about cleanliness classes, see page 124 ff.
The SAE classification consists of whole numbers. Better trend recognition is
based on a resolution of 0.1 contamination classes as supplied by the CS
1000.
To convert a decimal value to an integer, the decimal value has to be
rounded up.
For example: a readout of SAE 10.7 is, according to SAE 4059 , a class
SAE 11.
ContaminationSensor CS1000
en(us)
Page 69 / 136
