Hydraulic sensor connection
Flow rate, differential pressure
p∆
and viscosity
ν
characteristics
Differential pressure
p∆
and viscosity
ν
characteristics. All the values
indicated in the figures below apply regardless whether the direction of flow is
A->B or B->A.
Note that the permissible measured volumetric flow is 30 … 500 ml/min.
If you are unable to achieve the required flow values, we offer an extensive
line of accessories with various conditioning modules.
For example:

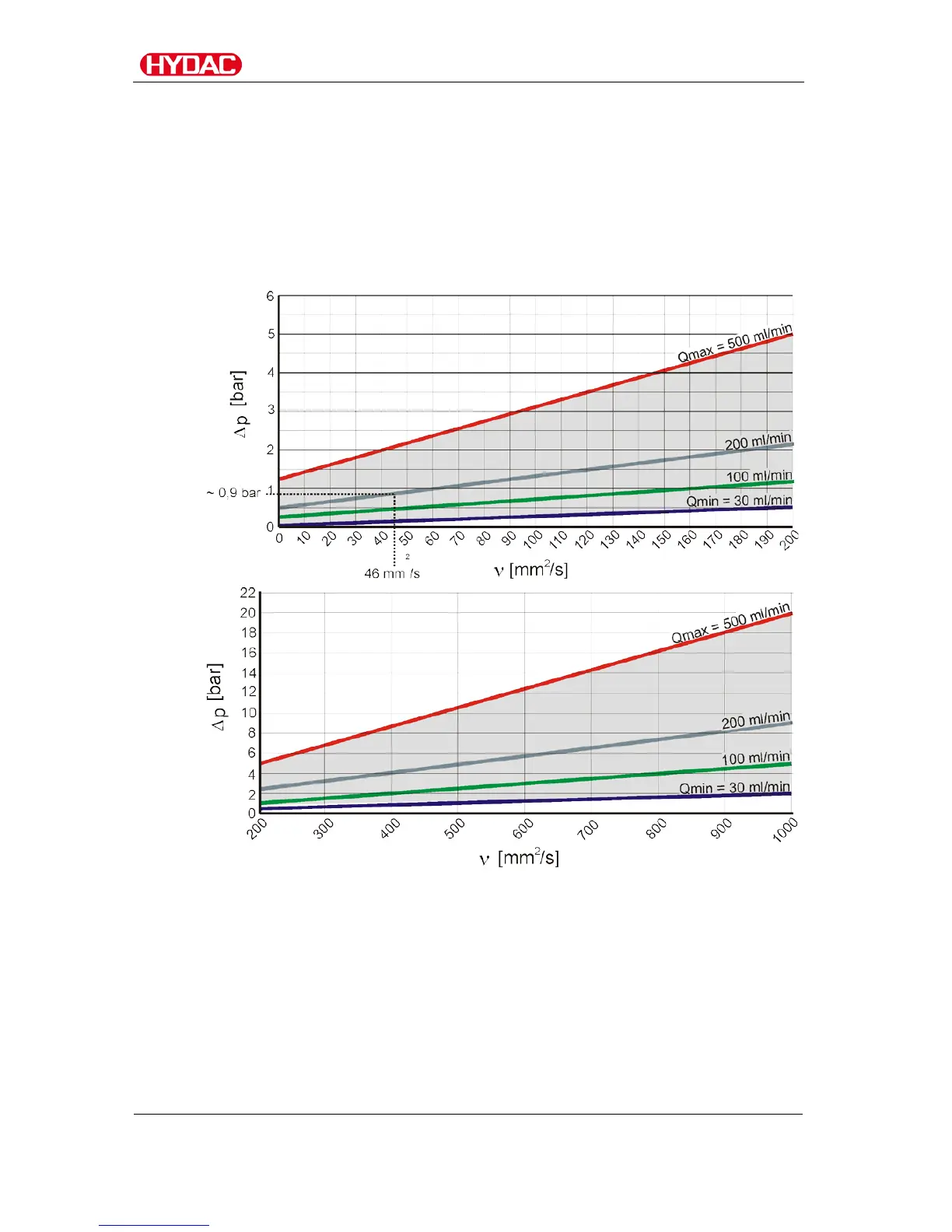

You are using a fluid with a viscosity
ν
of 46 mm²/s at a pressure difference
p
∆
of approx. 0.9 bar. This way, you achieve a flow rate of
approx. 200 ml/min.
The flow rate depends on the viscosity of the medium and the differential
pressure
p∆
via the sensor.
ContaminationSensor CS1000
en(us)
Page 26 / 136
