Reading the analog output
ISO + T

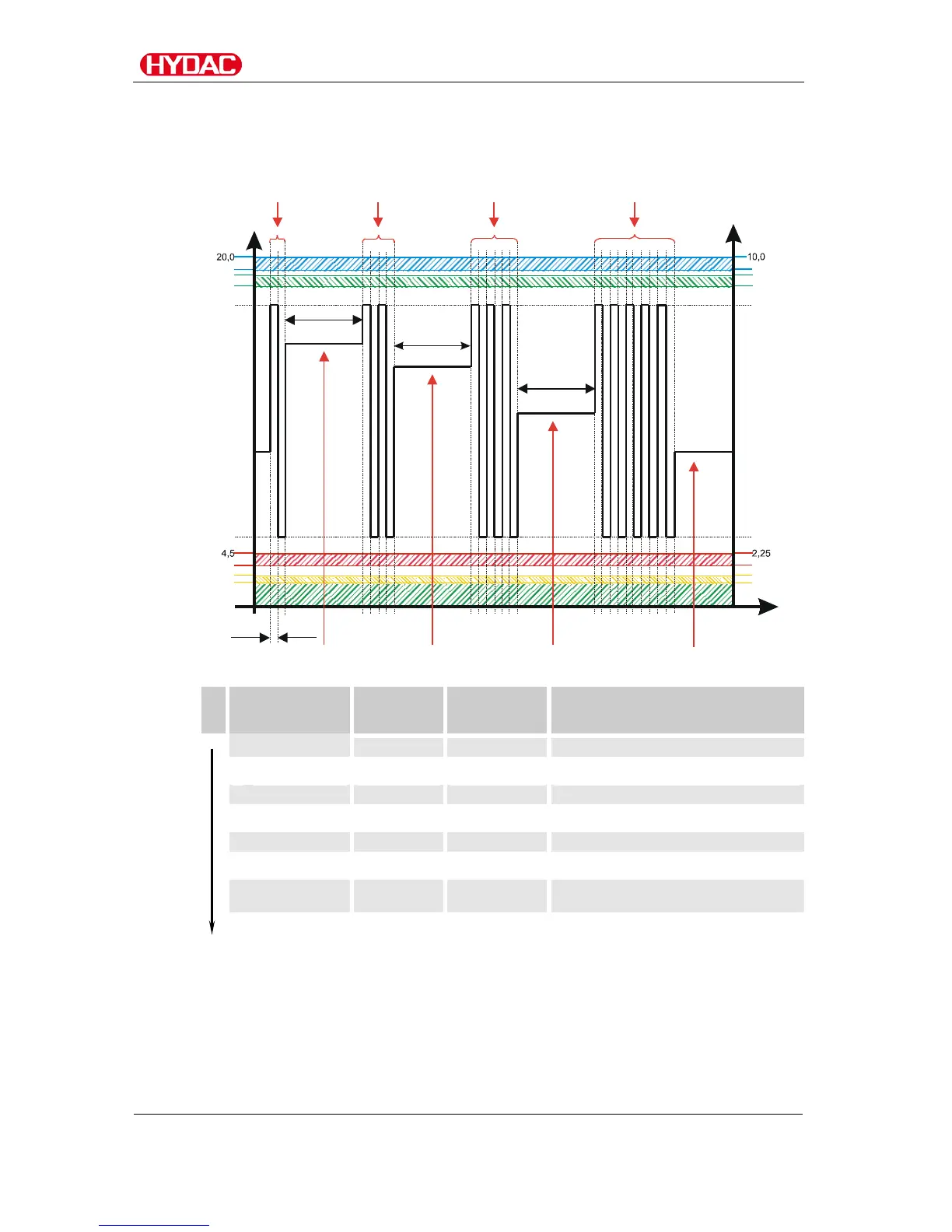

The ISO+T signal consists of 4 measured values which are transmitted time-
coded with the following time slices:
_
Time
Signal Variable
Signal duration
per pulse
in ms
Current (I) / Voltage (U)
1 Identifier >4µm
(c)
300 High / Low
2 Measured value >4µm
(c)
3000 Current/Voltage for measured value
3 Identifier >6µm
(c)
300 High / Low / High / Low
4 Measured value >6µm
(c)
3000 Current/Voltage for measured value
5 Identifier >14µm
(c)
300 High / Low / High / Low / High / Low
6 Measured value >14µm
(c)
3000 Current/Voltage for measured value
7 Identifier Temperature 300
High / Low / High / Low / High / Low / High /
Low / High / Low
8 Measured value Temperature 3000 Current/Voltage for measured value
4,0
2,0
4,1
2,05
I (mA)
U (V)
time (ms)
4,8
2,4
19,2
High
High
Low
Low
9,6
300
3000
3000
3000
1
2 4
6
8
3
5
7
19,5
9,85
4,3
2,15
19,7
9,75
0,0
19,8
9,9
ContaminationSensor CS1000
en(us)
Page 80 / 136
