Reading the analog output
SAE classes A / B / C / D

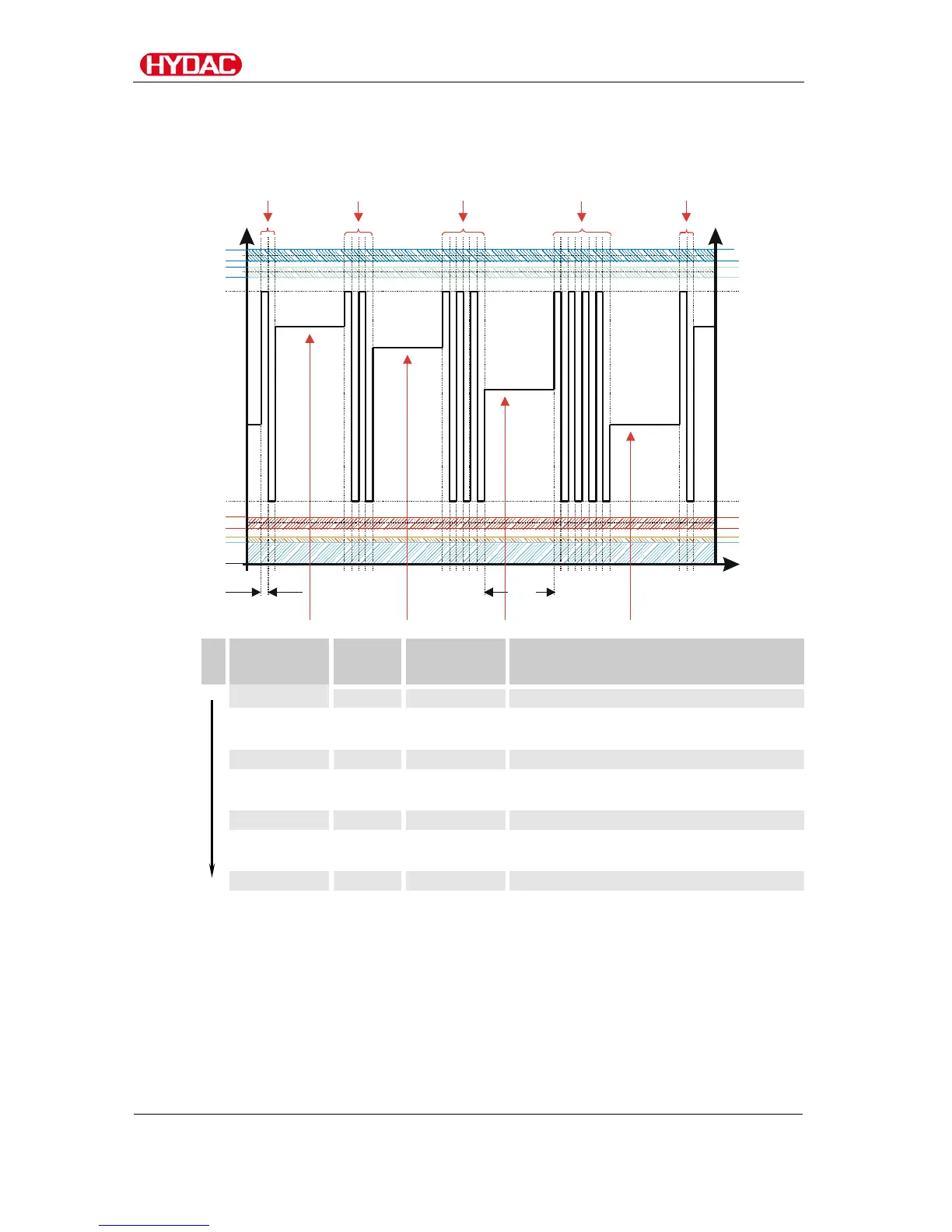

The SAE class A/B/C/D signal consists of 4 measured values transmitted
with the following time-coded time slices:
4,0
I (mA)
U (V)
t (ms)
4,8
Low
20,0
19,2
High High
Low
4,5
4,3
4,1
19,7
19,5
300
3000
1 3 5
7
1
2
4
6
8
2,0
2,05
2,25
2,4
9,85
9,75
2,15
9,6
0,0
19,8
10,0
9,9
Time
Signal Variable
Signal duration
per pulse
in ms
Current (I) / Voltage (U)
1 Identifier SAE A 300 High / Low
2
Measured
value
SAE A 3000
Current/Voltage for measured value
3 Identifier SAE B 300 High / Low / High / Low
4
Measured
value
SAE B 3000
Current/Voltage for measured value
5 Identifier SAE C 300 High / Low / High / Low / High / Low
6
Measured
value
SAE C 3000
Current/Voltage for measured value
7 Identifier SAE D 300 High / Low / High / Low / High / Low / High / Low
8
Measured
value
SAE D 3000
Current/Voltage for measured value
ContaminationSensor CS1000
en(us)
Page 70 / 136
BeWa CS1000 3764916d 300 en-us 2017-09-25.docx 2017-09-25
