Operating the CS1x2x sensor using the keypad
Service variables on the display
The service variables inform you about the current status in the
ContaminationSensor.
The service variables are not calibrated and solely represent an approximate
value for installing the sensor in the hydraulic system.

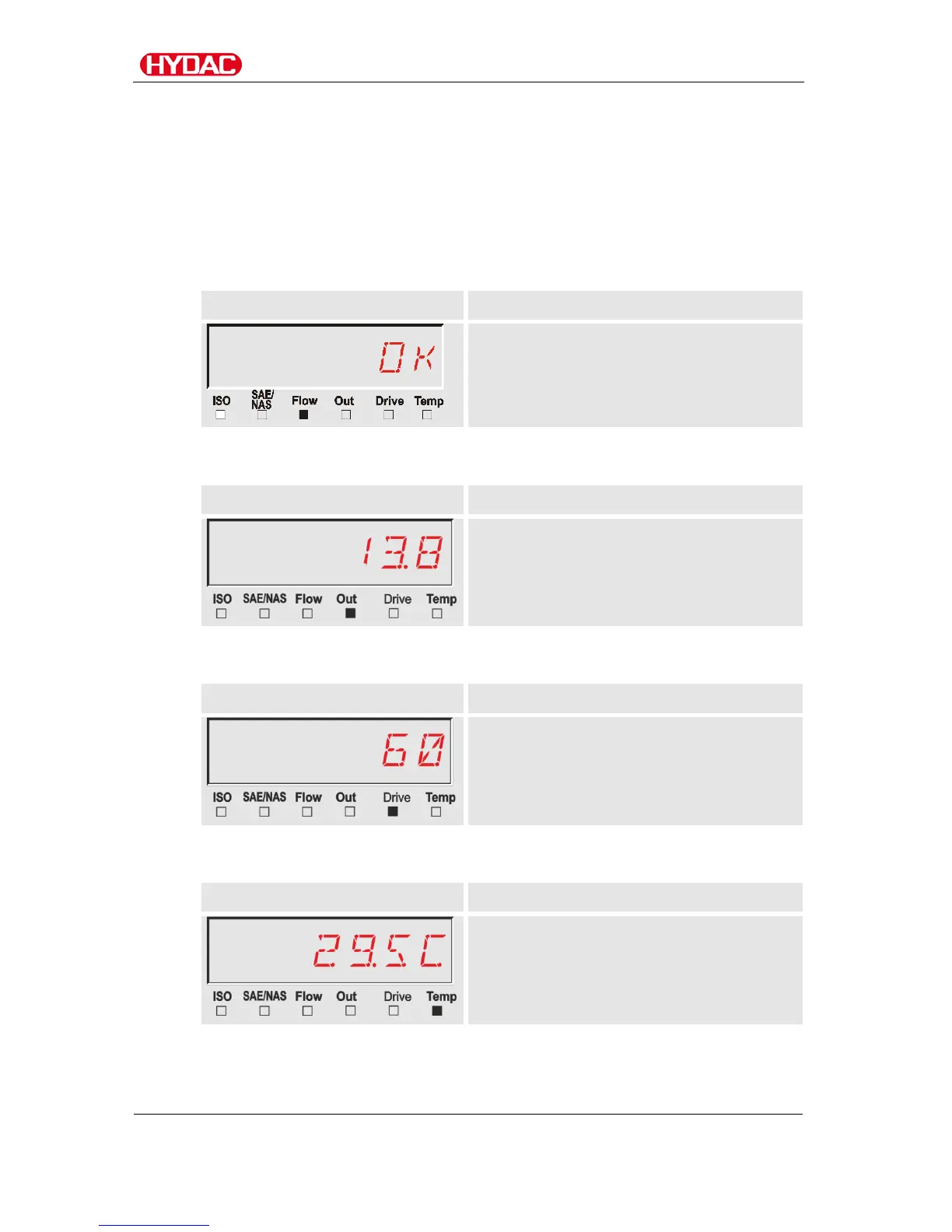

Flow (flow rate)
Display
Description
Flow rate in permissible range.
Out (Analogue output)
Display
Description
Current or voltage output at the analog
output.
(example: 13.8 mA)
Drive (performance of the LED)
Display
Description
Performance (1-100%) of the LED in the
sensor.(example: 60%)
Temp (Temperature)
Display
Description
Fluid temperature in the sensor.
(example: 29.5 °C or 84.2 °F)
ContaminationSensor CS1000
en(us)
Page 37 / 136
BeWa CS1000 3764916d 300 en-us 2017-09-25.docx 2017-09-25
