Hydac CS1000 series User Manual

Hydraulic sensor connection
Selecting measurement location at the hydraulic systems
In order to obtain cleanliness values that are continuous and coherent in real
time, select a suitable measuring point according to the following guidelines:

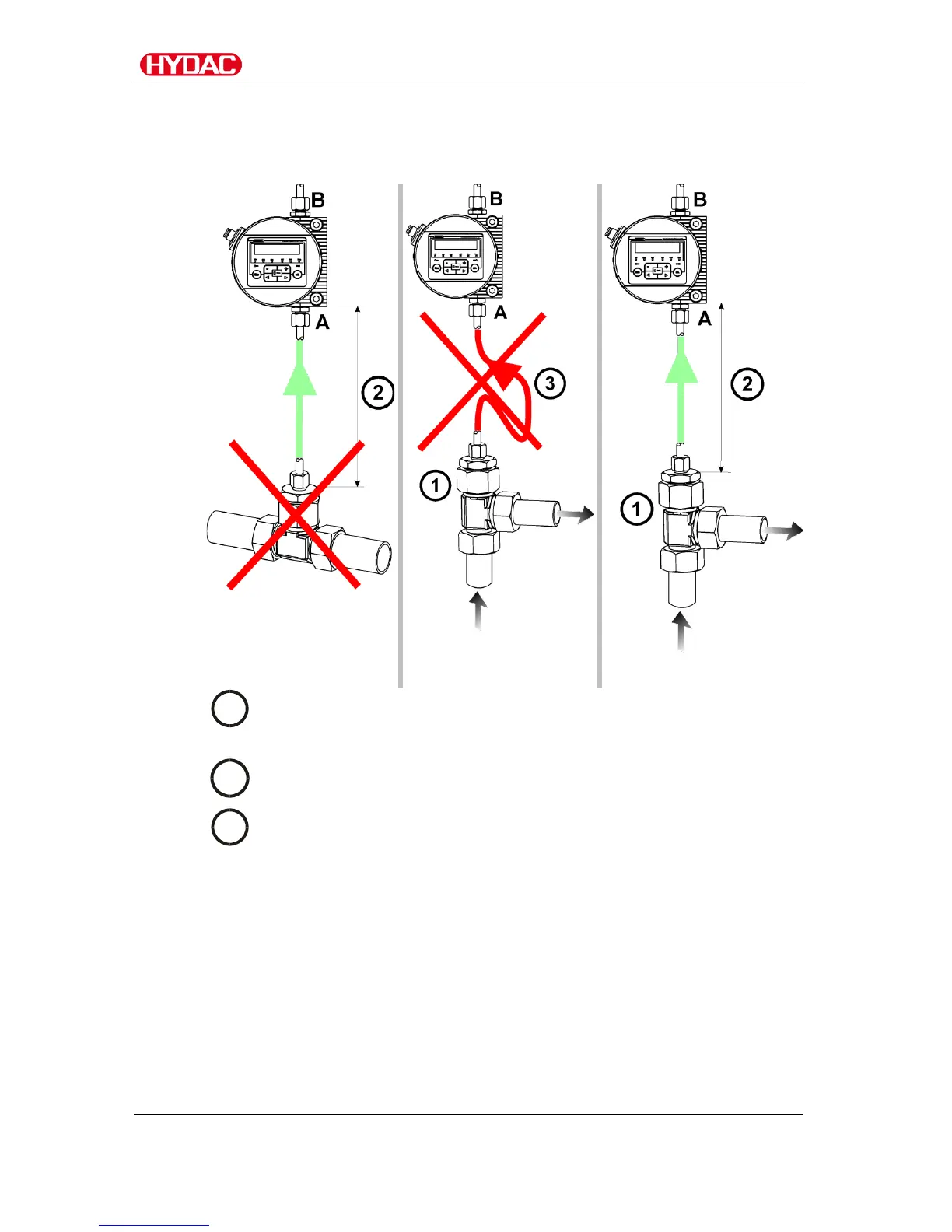

WRONG WRONG OK
1
Select the measurement point so that the sample measured comes
from a turbulent location, with a good flow. For example: on a pipe
elbow, etc.
2
Install the sensor near the measurement point to achieve as timely
results as possible.
3
During installation, avoid creating a "siphon" trap for particle deposits
in the line (sedimentation).
ContaminationSensor CS1000
en(us)
Page 25 / 136
BeWa CS1000 3764916d 300 en-us 2017-09-25.docx 2017-09-25
