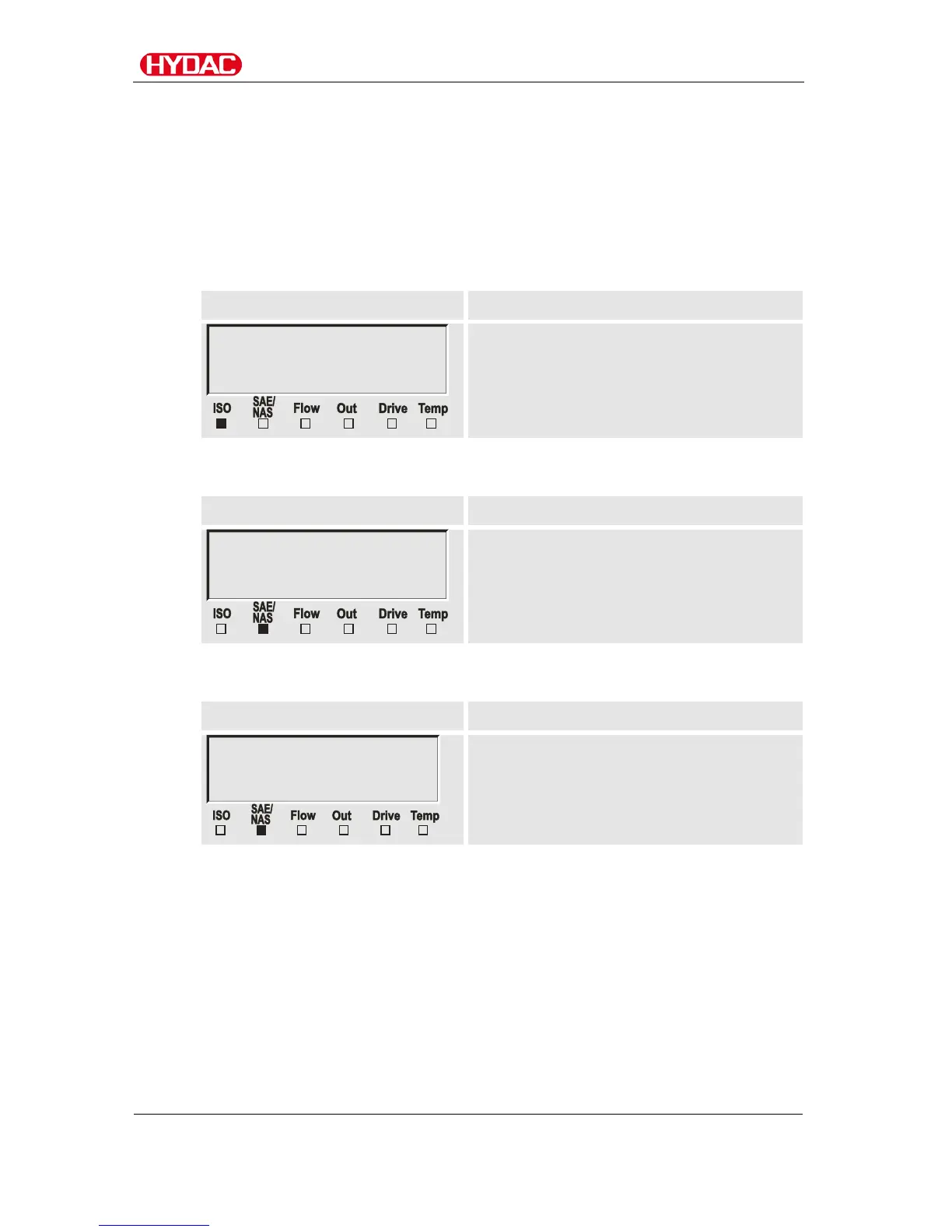

Operating the CS1x2x sensor using the keypad
Measured variables on the display
The measured variables give you information on the oil cleanliness in the
system.
You will receive a measured value with an accuracy of ± 1/2 ISO cleanliness
class within the calibrated range.
ISO (Cleanliness class)
Display
Description
Measured value ISO code
(Example: 3-figure ISO code for
2/5/15 µm or 4/6/14 µm depending on CS
version)
SAE (Cleanliness class)
Display
Description
SAE class measurement category
(Example: Class 6.1 for SAE A (>4µm))
NAS (Cleanliness Class - CS 13xx only)
Display
Description
NAS class measurement category
(Example: Class 13.2 for the size 15-25
µm)
2=1(1%
A &1
15 1§2
ContaminationSensor CS1000
en(us)
Page 36 / 136
