8
Serial connection
9
Fibre-channel port 4

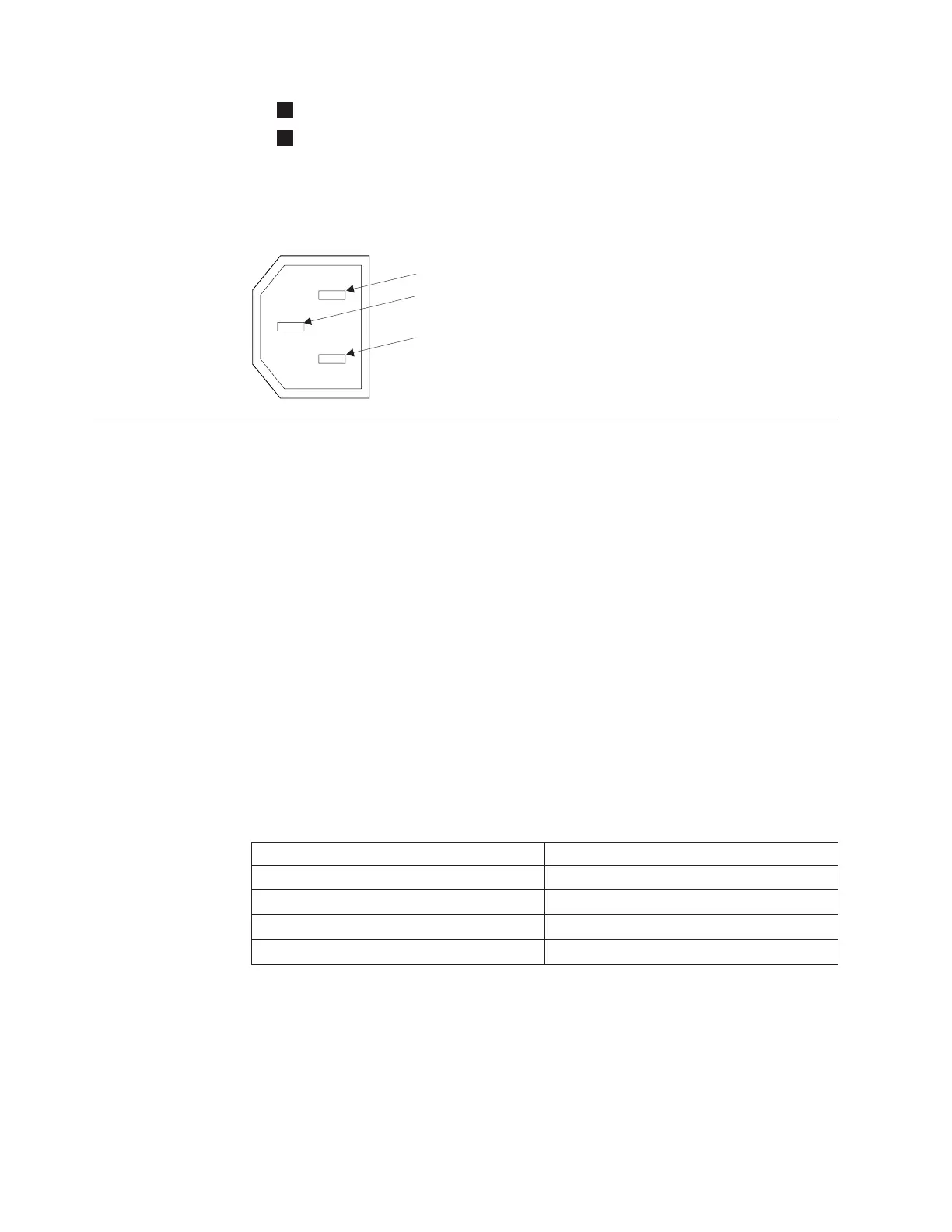

The
following figure shows the type of connector located on the power supply
assembly. The connector enables you to connect the SAN Volume Controller
2145-8F2 to the power source from the uninterruptible power supply.
Fibre-channel port numbers and worldwide port names
Fibre-channel ports are identified by their physical port number and by a
worldwide port name (WWPN).
The physical port numbers identify fibre-channel cards and cable connections
when you perform service tasks. The WWPNs are used for tasks such as
fibre-channel switch configuration and to uniquely identify the devices on the
SAN.
The physical port numbers are 1 - 4, counting from left to right when you view the
rear panel of the SAN Volume Controller. The WWPNs are derived from the
worldwide node name (WWNN) of the SAN Volume Controller in which the card
is installed.
The WWNN is in the form 50050768010XXXXX, where XXXXX is initially derived
from the unit and is specific to a SAN Volume Controller. You can change the
XXXXX value by using the front panel to facilitate service controller concurrent
replacement and to enable some concurrent upgrade operations.
The WWPNs are in the form 5005076801QXXXXX, where XXXXX is as previously
stated and Q is related to the port number as follows:
Port Value of Q
1 4
2 3
3 1
4 2
SAN Volume Controller 2145-8F4 fibre-channel port numbers
and worldwide port names
The SAN Volume Controller 2145-8F4 fibre-channel ports are identified by their
physical port number and by a worldwide port name (WWPN).
Ground
Live
Neutral
78 IBM System Storage SAN Volume Controller: Hardware Installation Guide
