3. Place the bracket over the power supply inlets on the right rear of the 2145
UPS-1U, so that the two screw holes line up.
4. Position the bracket with the power cable protruding through the rightmost slot
in the bracket.
5. Secure the bracket in place with one screw on each side, as shown in Figure 25.
svc00201

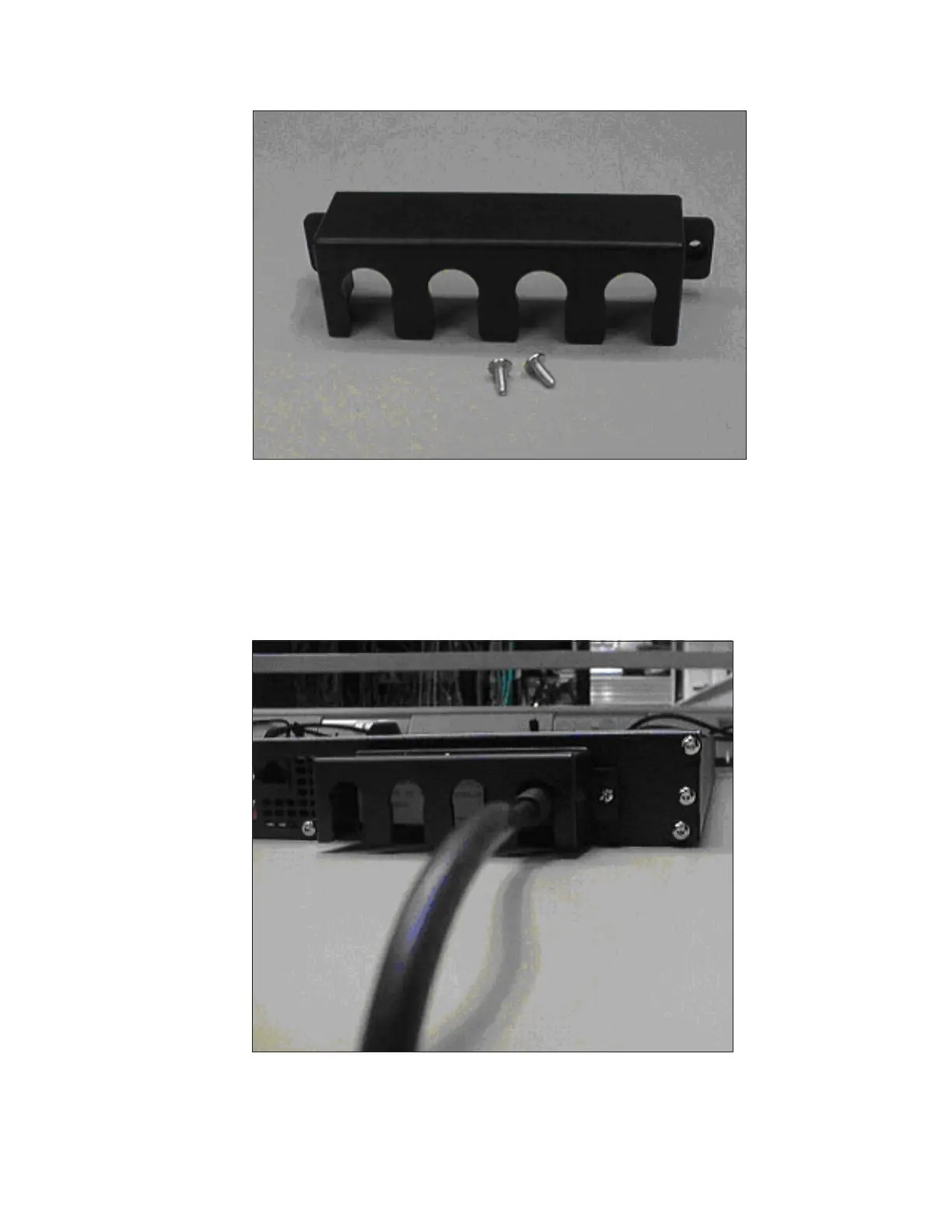

Figure 24. 2145 UPS-1U power cable retention bracket hardware
svc00200
Figure 25. 2145 UPS-1U power cable retention bracket
48 IBM System Storage SAN Volume Controller: Hardware Installation Guide
