DANGER
You
have already switched on the 2145 UPS-1U. The output sockets of the
2145 UPS-1U are live.
3. Plug the signal cable into the serial connector
3
located on the SAN Volume
Controller 2145-8G4.
4. Place the other end of the signal cable into the communication port
6
on the
2145 UPS-1U.
The SAN Volume Controller 2145-8G4 power is now connected to the 2145
UPS-1U.
Installing the SAN Volume Controller 2145-8G4 cable retention bracket
The cable retention bracket ensures that the SAN Volume Controller 2145-8G4 node
does not mistakenly become unplugged from the uninterruptible power supply
(UPS).
The SAN Volume Controller 2145-8G4 comes with one of two different cable
retention brackets. Depending on which bracket you have, use the appropriate
instructions to install the cable retention bracket.

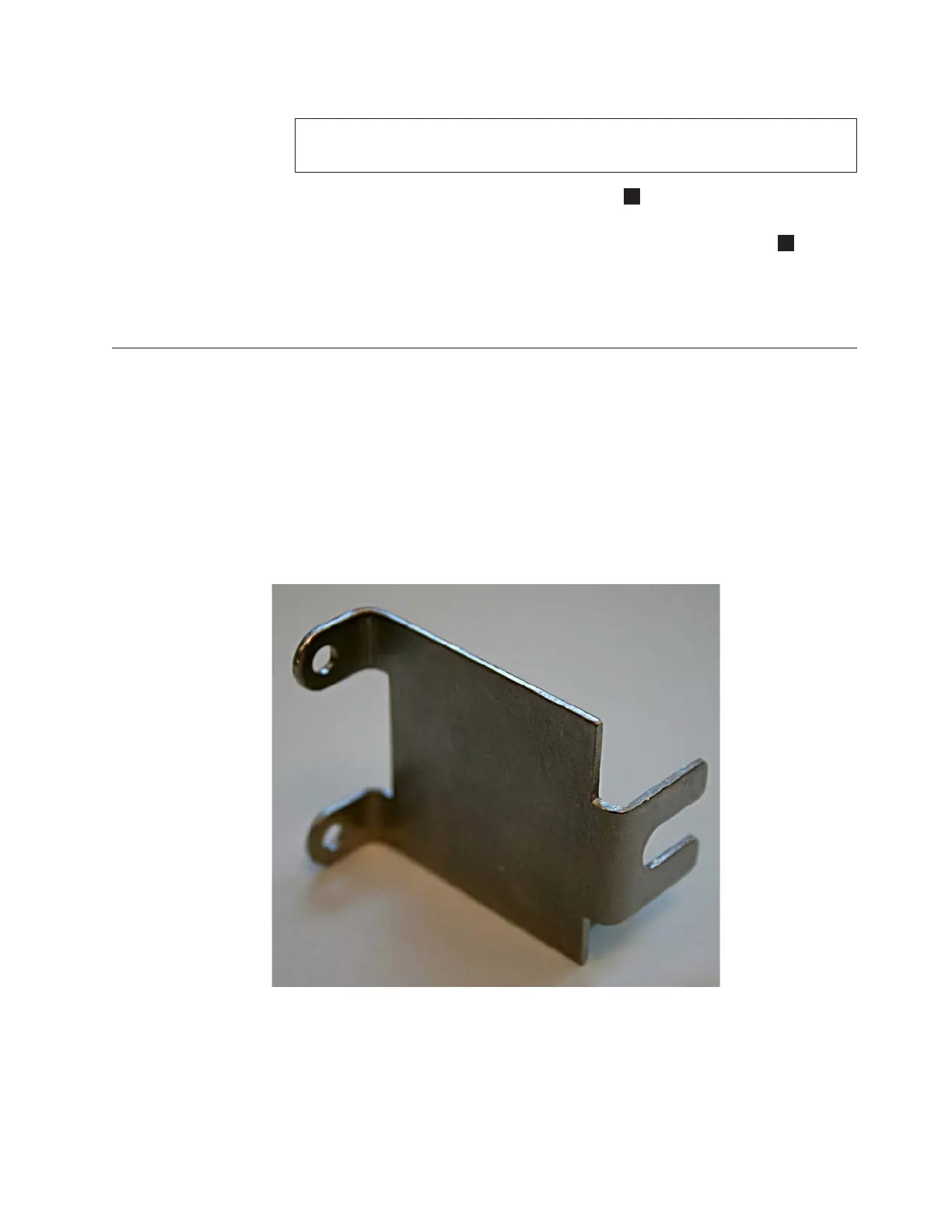

v If your cable retention bracket looks like the following, go to “Installing the
cable retention bracket - option A” on page 56.
v If your cable retention bracket looks like the following, go to “Installing the
cable retention bracket - option B” on page 58.
svc00363
Chapter 6. Installing the SAN Volume Controller 2145-8G4 hardware 55
|
|
|
|
|
|
|
|
|
|
|
