Installing the cable retention bracket - option A

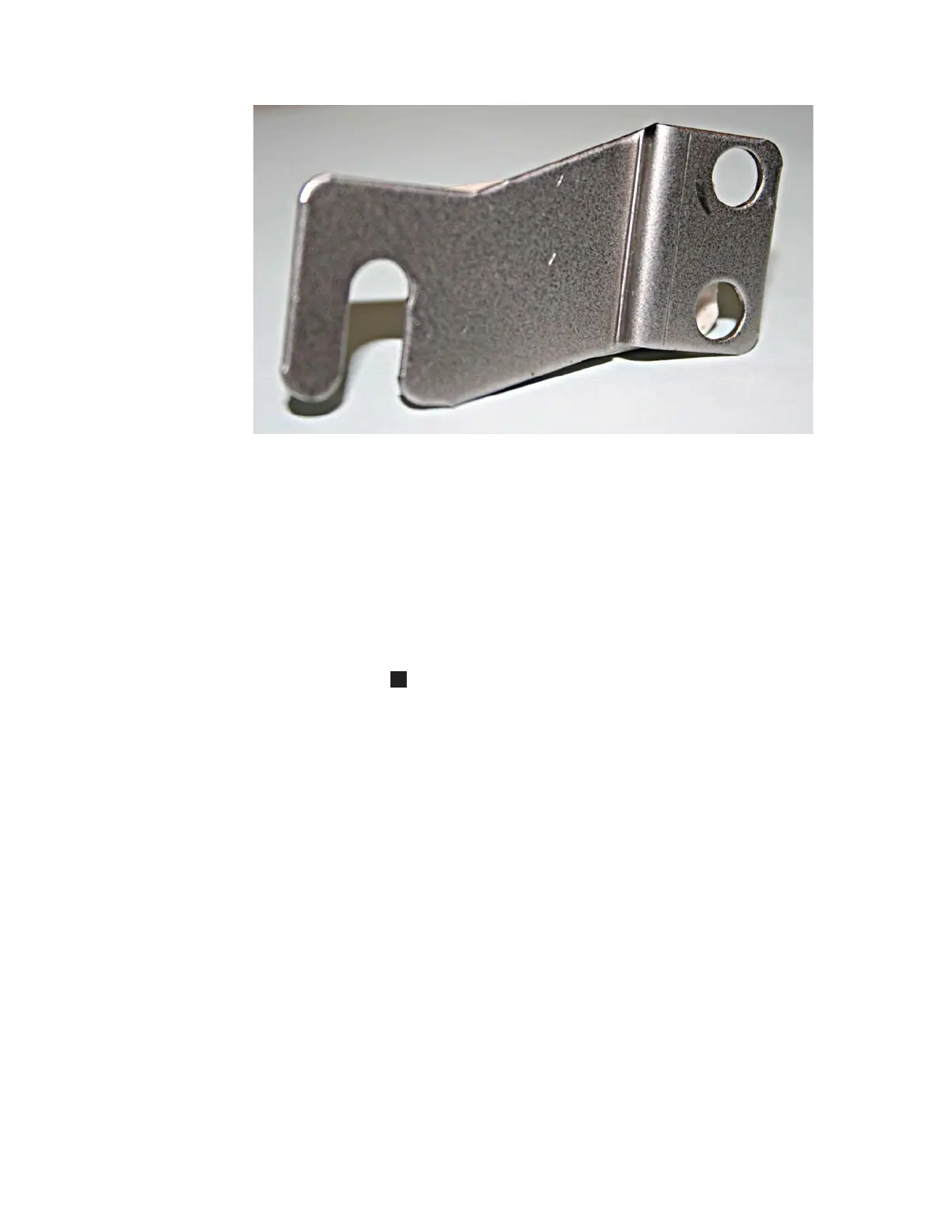

The cable retention bracket attaches to the back of the SAN Volume Controller
2145-8G4 node. It is connected with the screws that already hold the rear plate of
the power supply in place.
Install the SAN Volume Controller 2145-8G4 cable retention bracket after you
install the node in the rack.
To attach the bracket to the rack rail, perform the following steps:
1. With the node powered off and the power cable removed, unscrew and remove
the two screws
1
on the right side of the rear plate that covers the power
supply fan unit, as shown in Figure 32 on page 57.
svc00362
56 IBM System Storage SAN Volume Controller: Hardware Installation Guide
|
|
|
|
|
|
|
|
|
|
|
|
|
