8. Attach only the bottom hole of the rail to the front of the rack with one M6 ×
10 screw and one clip nut (
1
in Figure 18).
9. Install a clip nut in the top hole of the rail
3
.
10. Repeat step 7 on page 42 through step 9 for the other rail.
11. Tighten the assembly wing nuts on both rail assemblies.
Installing the 2145 UPS-1U in the rack
After you have completed the preparation procedures, you are ready to install the
2145 uninterruptible power supply-1U (2145 UPS-1U) in the rack.
Attention: Read all safety and environmental notices before you start the
installation process. Use the reference numbers in parentheses at the end of each
notice to find the matching translated notice. For the translation of the danger,
caution, attention notices, and the translation of the safety labels, see the IBM
Systems Safety Notices.
1
2
svc00034

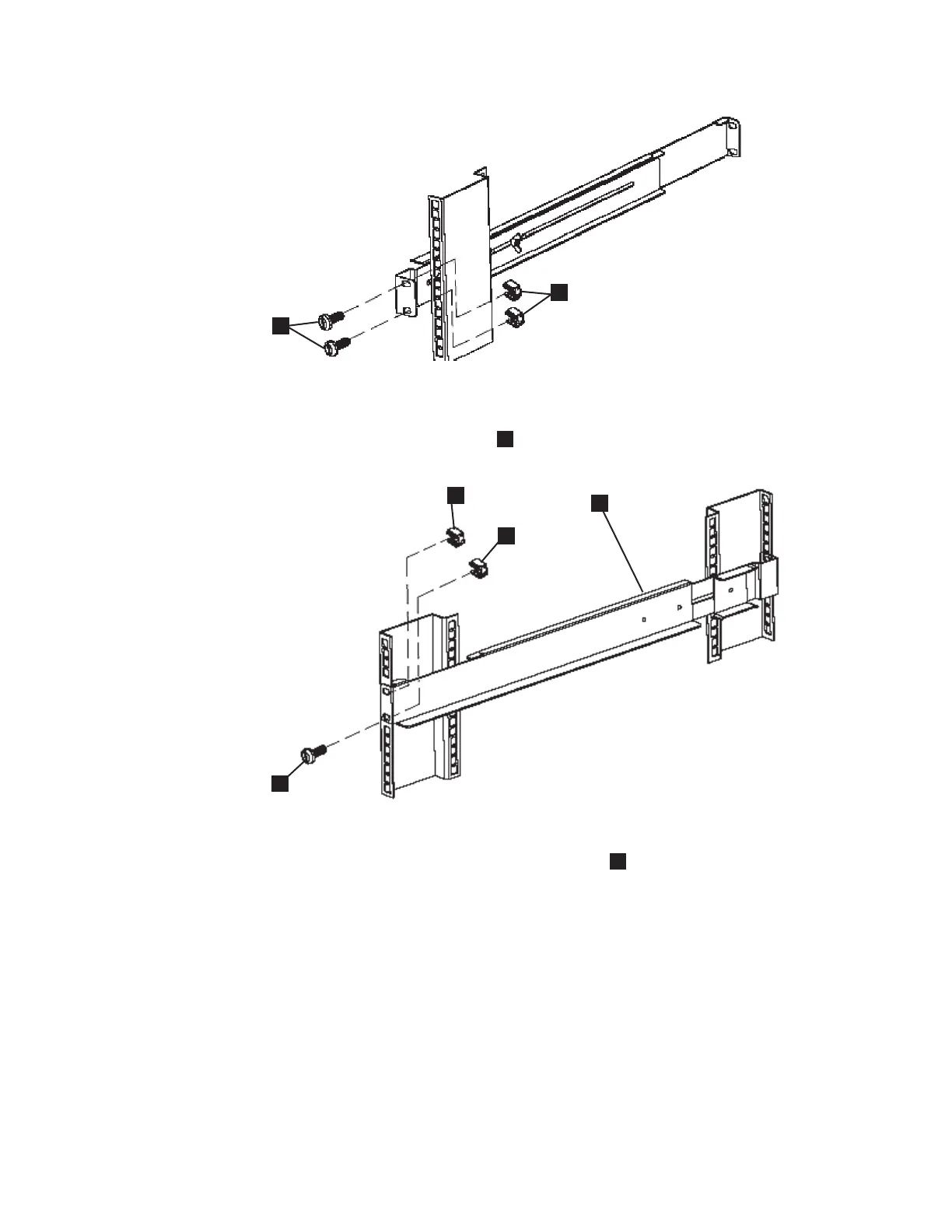

Figure 17. Securing the rear rail on the 2145 UPS-1U
svc00032
1
2
3
4
Figure 18. Securing the front rail on the 2145 UPS-1U
Chapter 6. Installing the SAN Volume Controller 2145-8G4 hardware 43
