2. Insert the power cable.

3. Position the cable retention bracket so that the power cable runs through the

slot in the bracket, as shown in Figure 33. Align the screw holes in the bracket

with the holes that are in the rear plate where you removed the two screws.

4. Replace the top screw.

5. Move the power supply handle back into place over the retention bracket, and

replace the lower screw so that it holds the power supply handle, cable

retention bracket, and power supply rear plate in place.

svc00364

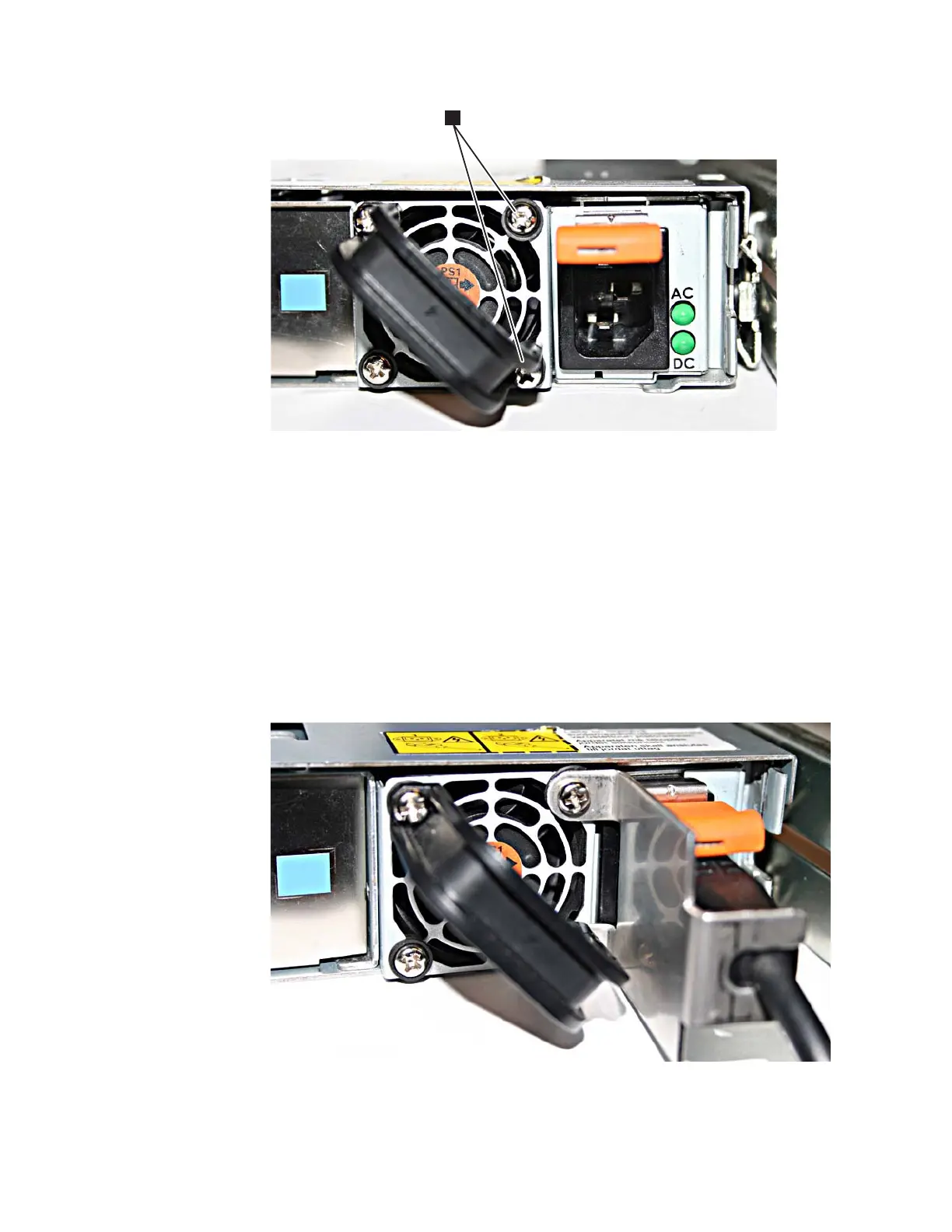

Figure 32. The SAN Volume Controller 2145-8G4 before you attach the cable retention

bracket

svc00365

Figure 33. The SAN Volume Controller 2145-8G4 with cable retention bracket option A

attached

Chapter 6. Installing the SAN Volume Controller 2145-8G4 hardware 57
