Appendix A — Specifications
PM23c, PM43, and PM43c Mid-Range Printer User Manual 123
USB Device Interface

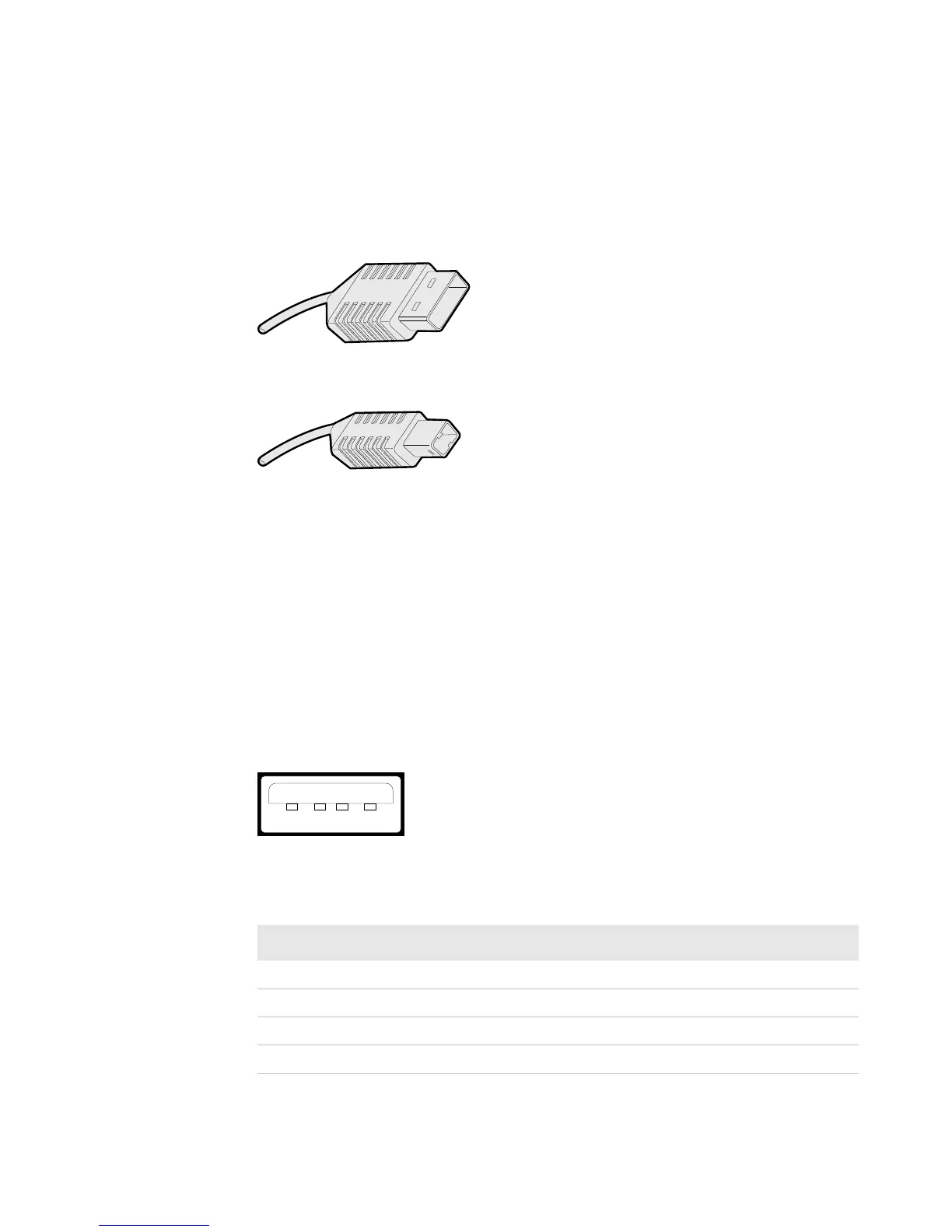

You connect a cable with a Type A connector and a Type B connector
from your PC to the printer. The Type A connector plugs into the PC
and the Type B connector plugs into the printer.
USB Type A Connector
USB Type B Connector
To use the USB interface to print from a PC, you need to have the
Intermec InterDriver printer driver installed on your PC. Intermec
recommends that you only connect one printer to each USB port on
the PC, either directly or through a hub. You cannot connect other
devices, such as a keyboard or a mouse, to the same hub.
USB Host Interface
Use the USB host device to connect USB devices to the printer such as
HID bar code scanners, keyboards, USB storage devices, and USB hubs.
USB Host Interface
USB Host Interface Pins and Descriptions
Pin Description
1 VBUS
2D-
3D+
4Gnd
