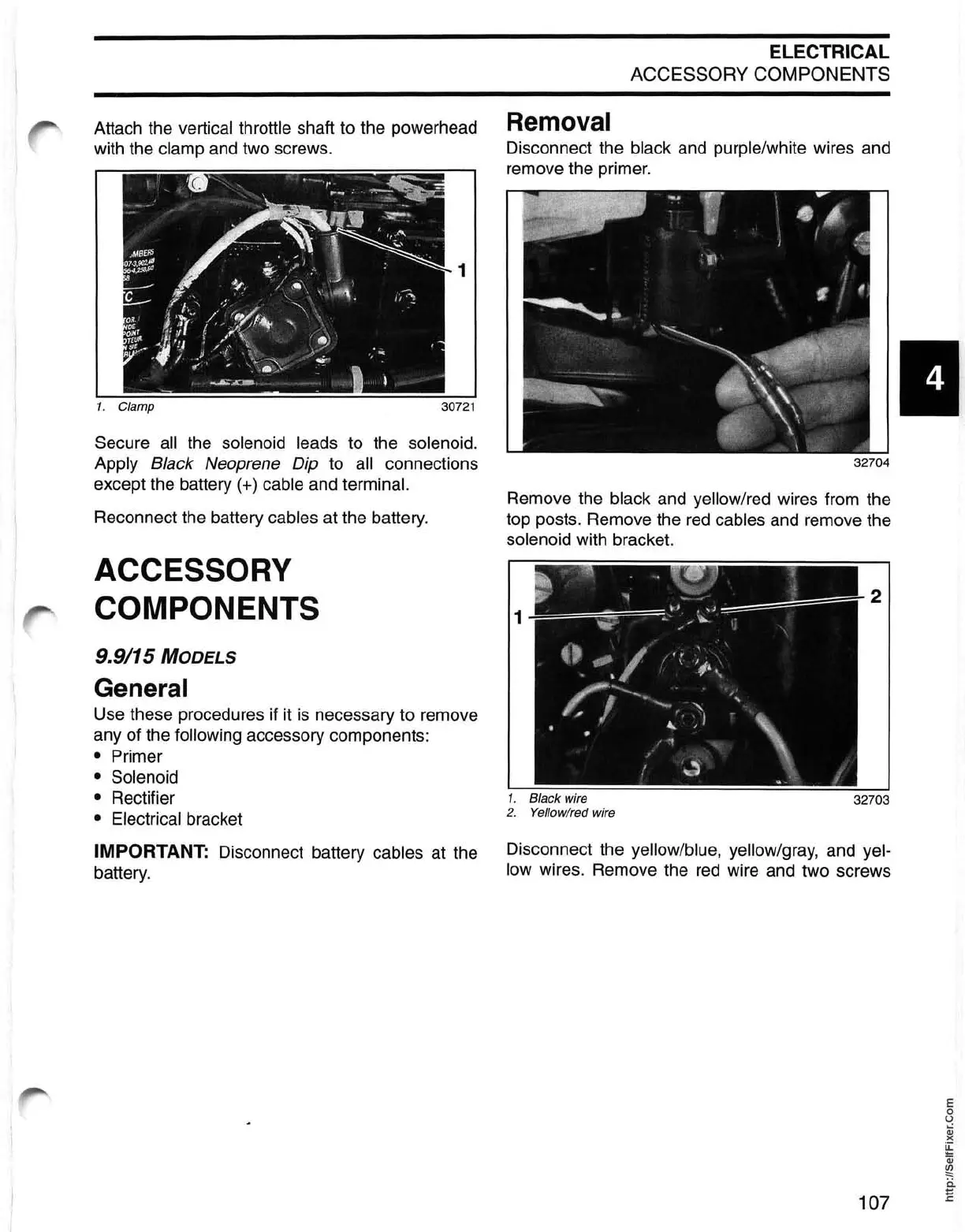

Attach the vertical throttle shaft to the powerhead
with the clamp and two screws.
1. Clamp
30721
Secure all the solenoid leads to the solenoid.
Apply
Black Neoprene Dip to all connections
except the battery
(+) cable and terminal.
Reconnect the battery cables at the battery.
ACCESSORY
COMPONENTS
9.9/15
MODELS
General
Use these procedures if
it
is
necessary to remove
any of the following accessory components:
• Primer
• Solenoid
•
Rectifier
• Electrical bracket
Removal
ELECTRICAL
ACCESSORY COMPONENTS
Disconnect the black and purple/white wires and
remove the primer.
32704
Remove the black and yellow/red wires from the
top posts. Remove the
red
cables and remove the
solenoid with bracket.
2
IMPORTANT: Disconnect battery cables at the Disconnect the yellow/blue, yellow/gray, and yel-
battery. low wires. Remove the
red
wire and two screws
107
