ELECTRICAL

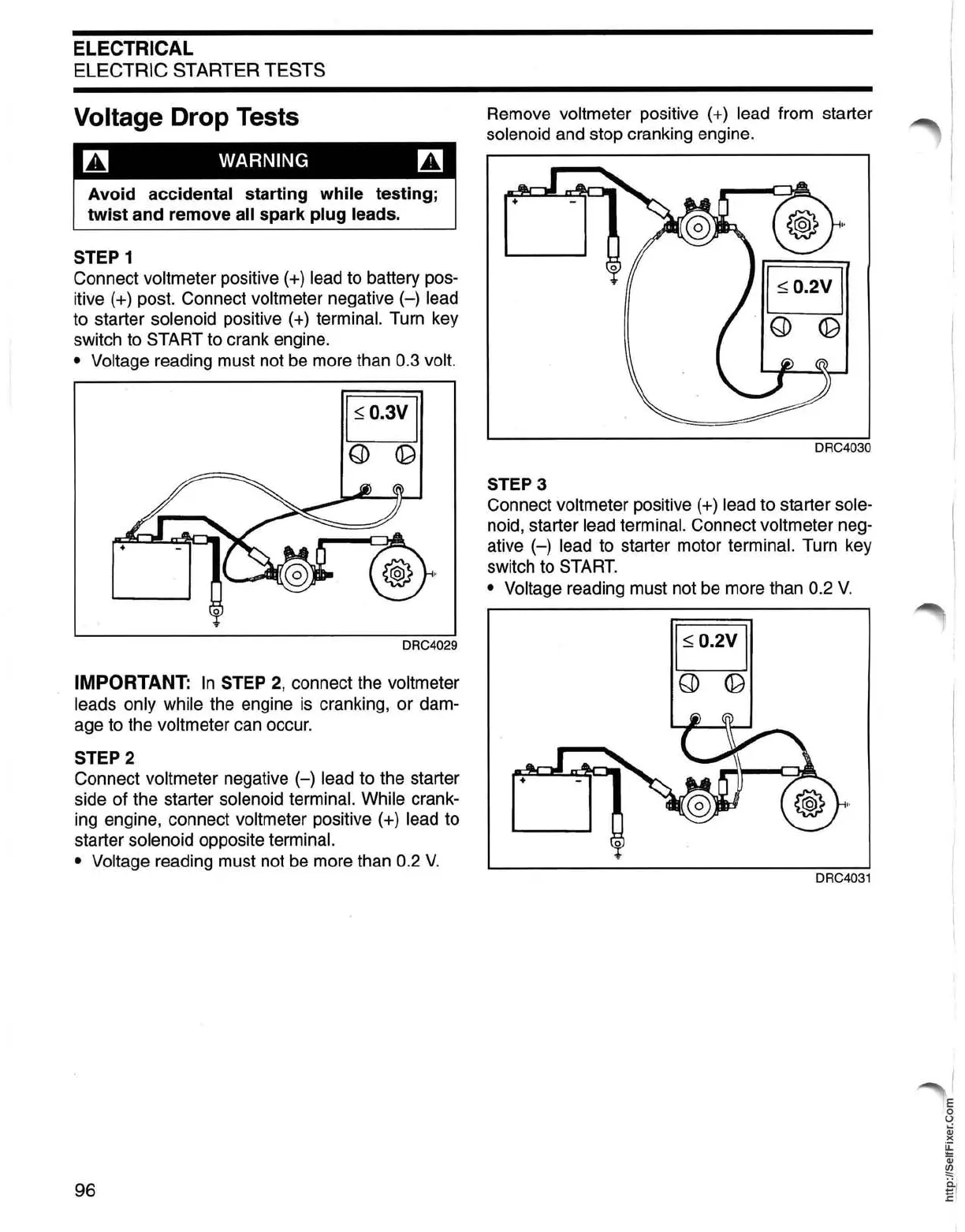

ELECTRIC STARTER TESTS
Voltage Drop Tests
~ WARNING ~
Avoid accidental starting while testing;
twist and remove all spark plug leads.
STEP 1
Connect voltmeter positive (+) lead to battery pos-
itive (+) post. Connect
voltmeter negative (-) lead
to starter solenoid positive (+) terminal. Turn key
switch to START to crank engine.
• Voltage reading must not be more than 0.3 volt.
+
DRC4029
IMPORTANT: In STEP 2, connect the voltmeter
leads
only while the engine is cranking, or dam-
age to the voltmeter can occur.
STEP 2
Remove
voltmeter positive (+) lead from starter
solenoid and stop cranking engine.
DRC4030
STEP 3
Connect
voltmeter positive (+) lead to starter sole-
noid, starter lead terminal. Connect voltmeter neg-
ative
(-) lead to starter motor terminal. Turn key
switch to START.
• Voltage reading must not be more than 0.2 V.
Connect voltmeter negative (-) lead to the starter +
side of the starter solenoid terminal. While crank-
ing engine, connect
voltmeter positive (+) lead to
starter
solenoid opposite terminal.
• Voltage
reading must not be more than 0.2 V.
96
