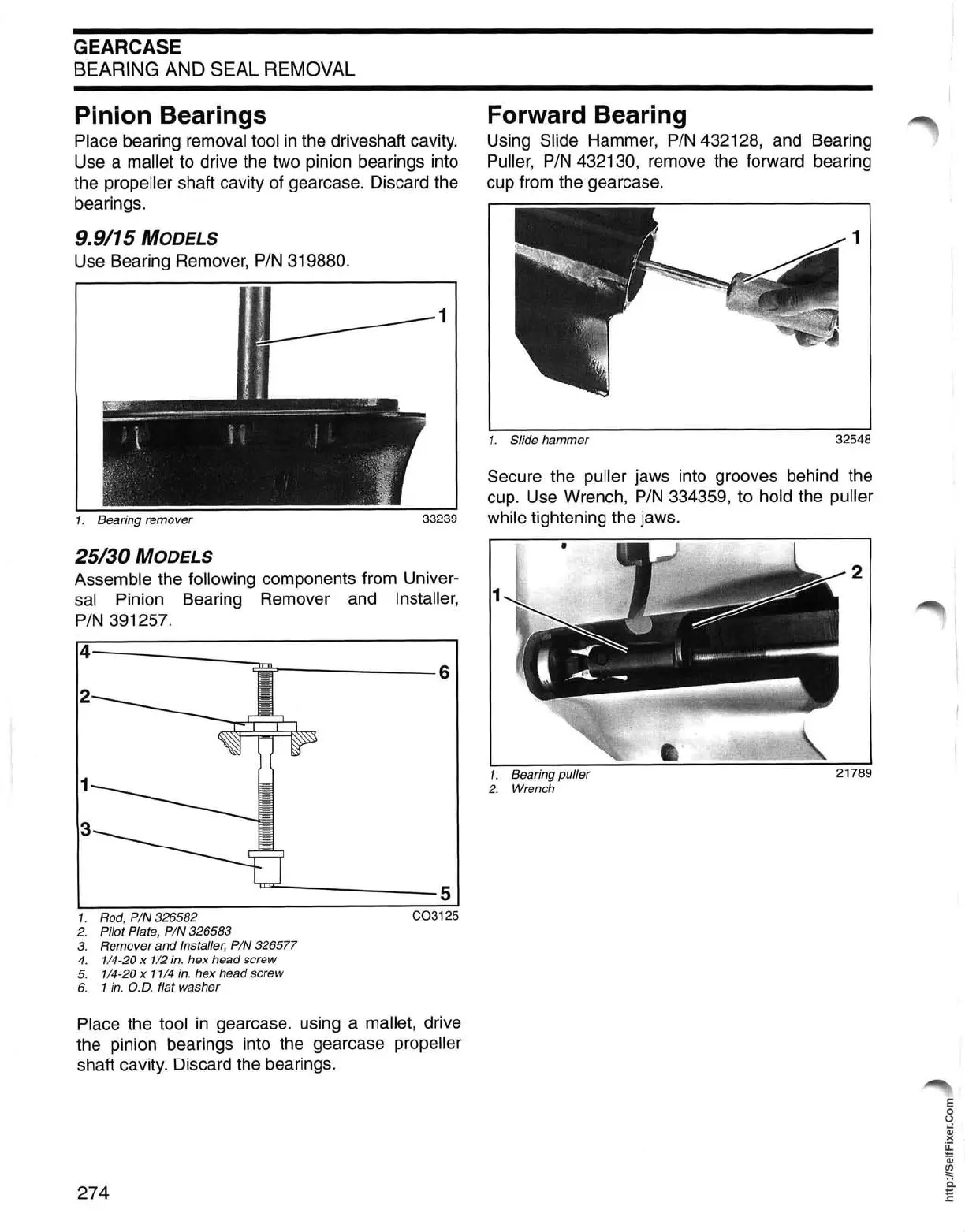

GEARCASE
BEARING AND SEAL REMOVAL
Pinion Bearings
Place bearing removal tool
in
the drives haft cavity.
Use a
mallet to drive the two pinion bearings into
the
propeller shaft cavity
of
gearcase. Discard the
bearings.
9.9/15
MODELS
Use Bearing Remover,
PIN
319880.
1
1.
Bearing remover
25/30
MODELS
Assemble the following components from Univer-
sal Pinion Bearing Remover and Installer,
PIN
391257.
4--------~~-------6
2
1
1..L..Uoo-----
__
5
1.
Rod,
PIN 326582
C03125
2. Pilot Plate, PIN 326583
3.
Remover
and
Installer, PIN 326577
4.
11
4-20
x 112
in.
hex head screw
5.
11
4-20
x
11
14
in.
hex head screw
6. 1 in.
0.0
. flat washer
Place the tool
in
gearcase. using a mallet, drive
the pinion bearings into the gearcase
propeller
shaft cavity. Discard the bearings.
274
Forward Bearing
Using Slide Hammer,
PIN
432128, and Bearing
Puller,
PIN
432130, remove the forward bearing
cup from the gearcase.
1
1.
Slide hammer
32548
Secure the puller jaws into grooves behind the
cup. Use Wrench,
PIN
334359, to hold the puller
while
tightening the jaws.
2
1
1.
Bearing puller
21789
2. Wrench
E
o
U
Qj
)(
~
Qj
~
ii
E
