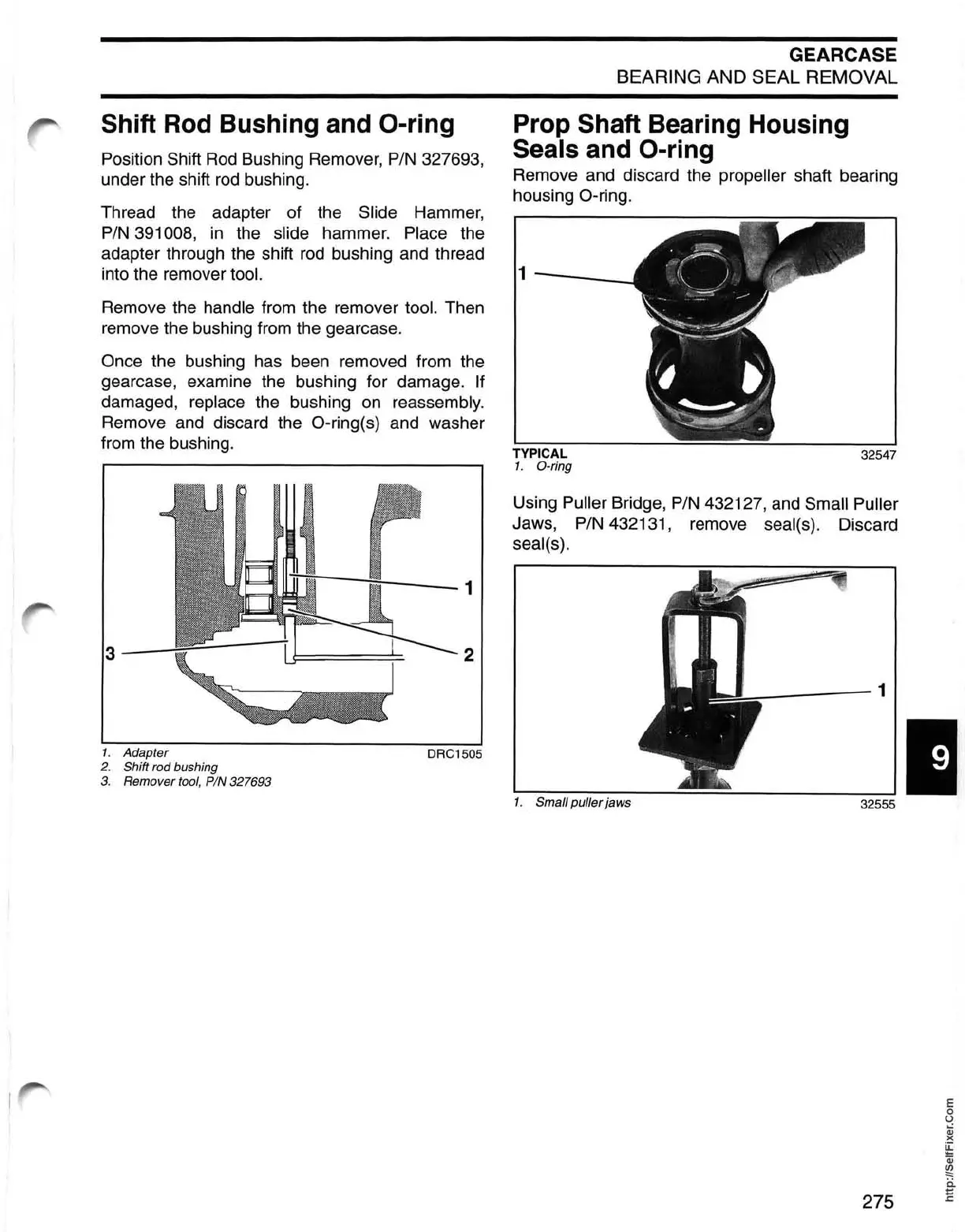

Shift Rod Bushing and O-ring
Position Shift Rod Bushing Remover, PIN 327693,
under the shift
rod bushing.
Thread the adapter of the
Slide Hammer,
PIN 391008, in the slide hammer. Place the
adapter through the shift
rod bushing and thread
into the remover
tool.
Remove the handle from the remover tool. Then
remove the bushing from the gearcase.
Once the bushing has been removed from the
gearcase, examine the bushing for damage.
If
damaged, replace the bushing on reassembly.
Remove and discard the O-ring(s) and washer
from the bushing.
lIinr----i ~ -_ 1
F"9I !l>.IWI.
3--
2
1. Adapter
DRC1505
2. Shift rod bushing
3. Remov
er tool, PIN 327693
GEARCASE
BEARING AND SEAL REMOVAL
Prop Shaft Bearing Housing
Seals and O-ring
Remove and discard the propeller shaft bearing
housing
O-ring.
1--_-J
TYPICAL
1. D-ring
32547
Using Puller Bridge, PIN 432127, and Small Puller
Jaws, PIN 432131 , remove seal(s). Discard
seal(s).
_----1
~~-----.JI
1. Small puller jaws 32555
275
