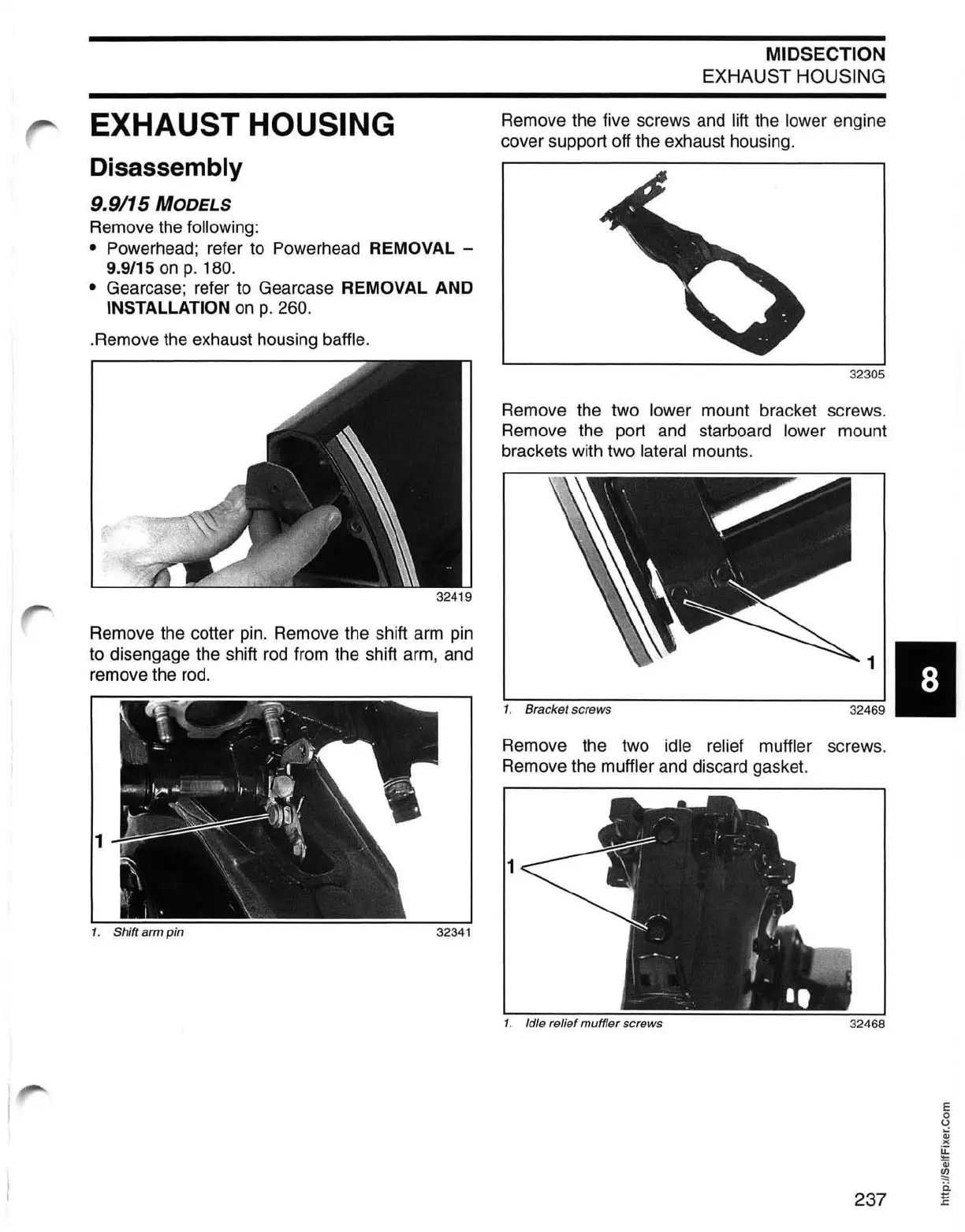

EXHAUST HOUSING
Disassembly
9.9/15 MODELS
Remove the following:
• Powerhead;
refer to Powerhead REMOVAL -
9.9/15
on
p.
180.
• Gearcase; refer to Gearcase REMOVAL AND
INSTALLATION
on
p.
260 .
. Remove the exhaust housing baffle.
Remove the cotter pin. Remove the shift arm pin
to disengage the shift
rod
from the shift arm, and
remove the
rod.
MIDSECTION
EXHAUST HOUSING
Remove the five screws and lift the lower engine
cover support off the exhaust housing.
Remove the two lower mount bracket screws.
Remove the port and starboard lower mount
brackets with two lateral mounts.
~_------I1
I.
1.
Bracket screws 32469
Remove the two idle relief muffler screws.
Remove the muffler and discard gasket.
1
1. Idle relief muffler screws
32468
237
E
o
o
~
x
~
'OJ
~
ii
t:
.s::
