Johnson J10RSRD User Manual

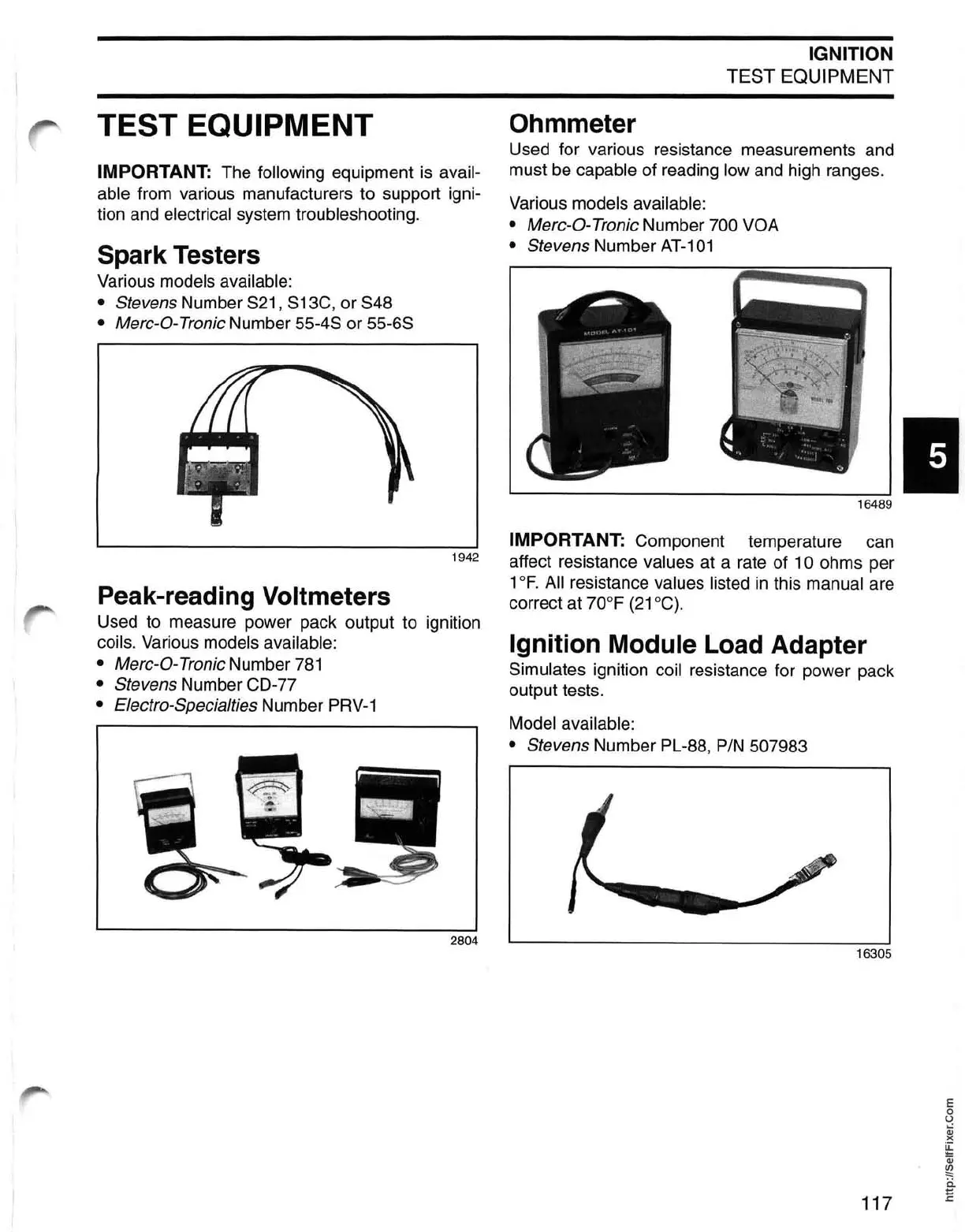

TEST EQUIPMENT
IMPORTANT: The following equipment is avail-
able
from various manufacturers to support igni-
tion and
electrical system troubleshooting.
Spark Testers
Various models available:
• Stevens Number S21, S13C, or S48
• Merc-O-Tronic Number 55-4S or 55-6S
Peak-readi ng Voltmeters
Used to measure power pack output to ignition
coils. Various models available:
• Merc-O-Tronic Number 781
• Stevens Number CO-77
• Electro-Specialties Number PRV-1
Ohmmeter
IGNITION
TEST EQUIPMENT
Used for various resistance measurements and
must be capable of reading low and high ranges.
Various
models available:
• Merc-O-Tronic Number 700 VOA
• Stevens Number AT-101
IMPORTANT: Component temperature can
affect resistance
values at a rate of 10 ohms per
1° F. All resistance values listed in this manual are
correct at 70°F (21 ° C).
Ignition Module Load Adapter
Simulates ignition coil resistance for power pack
output tests.
Model available:
• Stevens Number PL-88, PIN 507983
117
E
o
U
Qj
)(
~
OJ
~
ii
E
