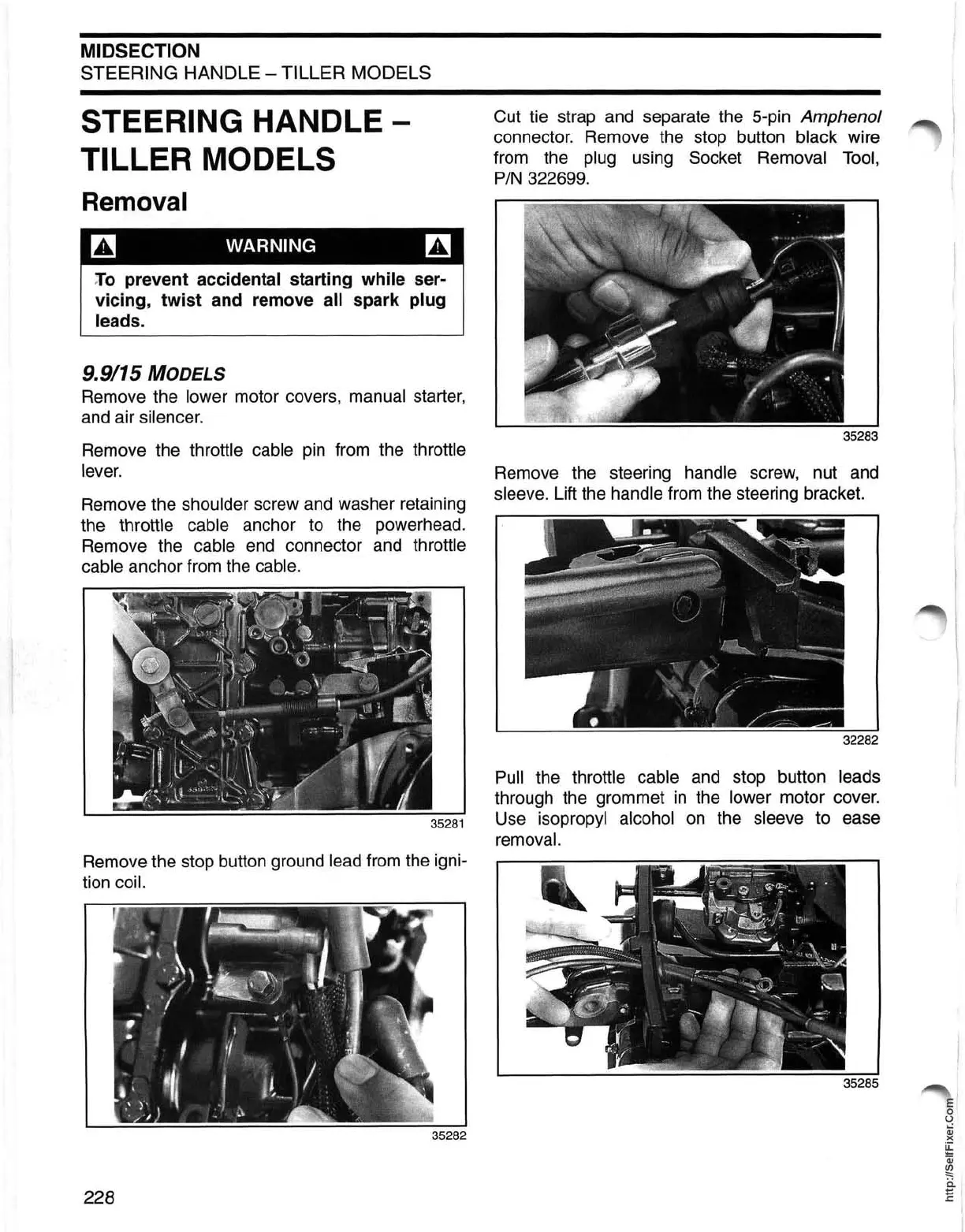

MIDSECTION
STEERING HANDLE - TILLER MODELS
STEERING HANDLE -
TILLER MODELS
Removal
~
WARNING
~
;("0 prevent accidental starting while ser-
vicing,
twist
and remove all spark plug
leads.
9.9/15
MODELS
Remove the lower motor covers, manual starter,
and air silencer.
Remove the throttle cable pin from the throttle
lever.
Remove the shoulder screw and washer retaining
the throttle cable anchor to the powerhead.
Remove the cable end connector and throttle
cable anchor from the cable.
Cut tie strap and separate the 5-pin
Amphenol
connector. Remove the stop button black wire
from the plug using Socket Removal Tool,
PIN
322699.
Remove the steering handle screw, nut and
sleeve. Lift the handle from the steering bracket.
Pull the throttle cable and stop button leads
through the grommet
in
the lower motor cover.
35281 Use isopropyl alcohol on the sleeve to ease
removal.
Remove the stop button ground lead from the igni-
tion coil.
228
