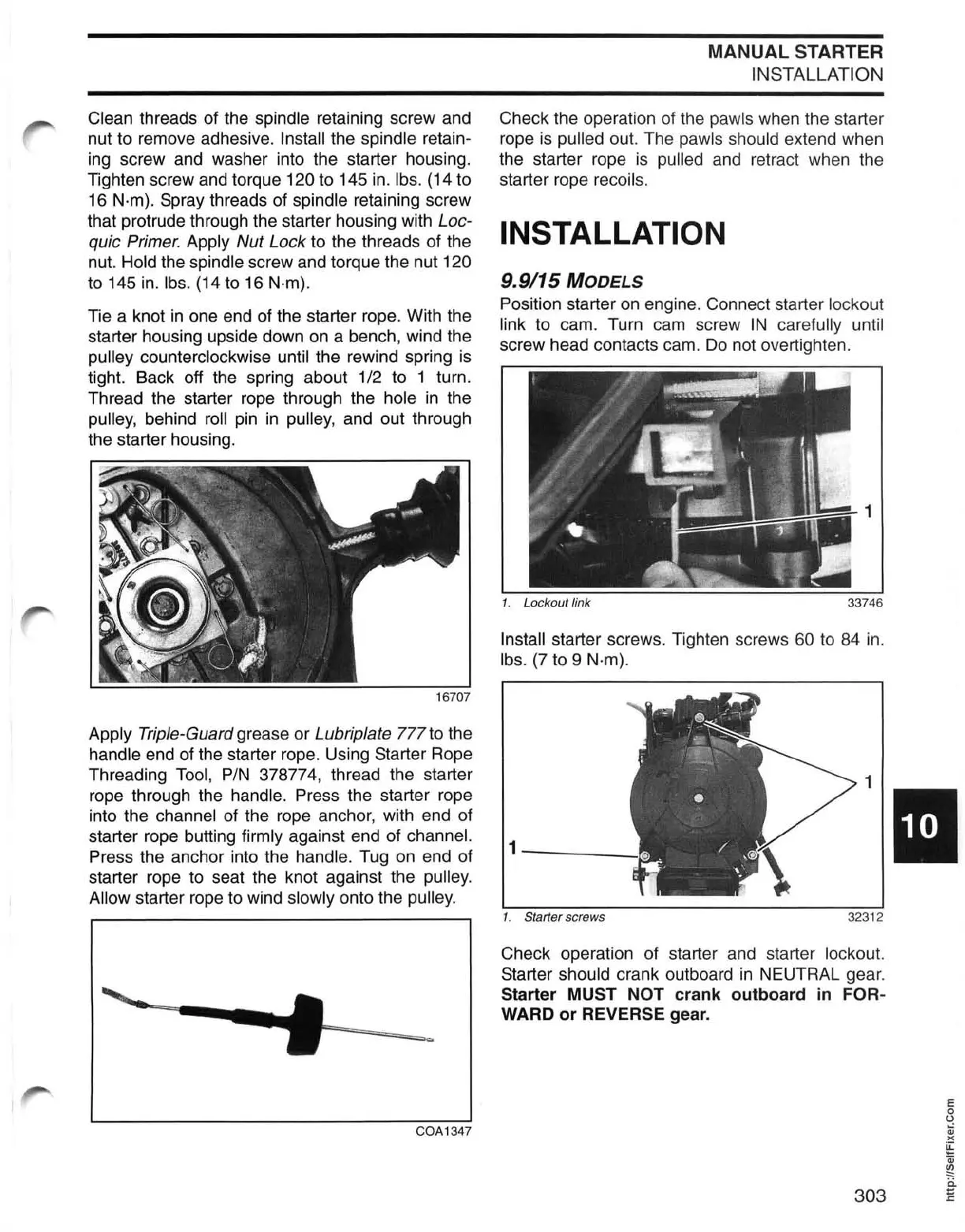

Clean threads of the spindle retaining screw and
nut to remove adhesive. Install the spindle retain-
ing
screw and washer into the starter housing.
Tighten screw and torque
120 to 145
in.
Ibs.
(14 to
16
N·m). Spray threads of spindle retaining screw
that protrude through the starter housing with
Loc-
quic Primer.
Apply Nut Lock to the threads of the
nut. Hold the spindle screw and torque the nut 120
to 145
in.
Ibs.
(14 to 16 N·m).
Tie a knot
in
one end of the starter rope. With the
starter housing upside down on a bench, wind the
pulley counterclockwise until the rewind spring
is
tight. Back off the spring about
112
to 1 turn.
Thread the starter rope through the
hole
in
the
pulley, behind
roll
pin
in
pulley, and out through
the starter housing.
Apply Triple-Guard grease or Lubriplate 777 to the
handle end of the starter rope. Using Starter Rope
Threading
Tool,
PIN
378774, thread the starter
rope through the
handle. Press the starter rope
into the
channel of the rope anchor, with end of
starter rope butting
firmly against end of channel.
Press the anchor into the handle. Tug
on
end of
starter rope
to
seat the knot against the pulley.
Allow
starter rope to wind slowly onto the pulley.
COA1347
MANUAL STARTER
INSTALLATION
Check the operation of the pawls when the starter
rope
is
pulled out. The pawls should extend when
the starter rope
is
pulled and
ret
ract when the
starter rope recoils.
INSTALLATION
9.9/15 MODELS
Position starter
on
engine. Connect starter lockout
link to cam. Turn
cam
screw
IN
carefully until
screw head contacts cam.
Do
not overtighten.
1
1. Lockout link 33746
Install starter screws. Tighten screws 60 to
84
in.
Ibs.
(7
to 9 N·
m).
1
1
_____
:
1. Starter screws 32312
Check operation of starter and starter lockout.
Starter
should crank outboard
in
NEUTRAL gear.
Starter MUST NOT crank outboard
in
FOR-
WARD or REVERSE gear.
303
