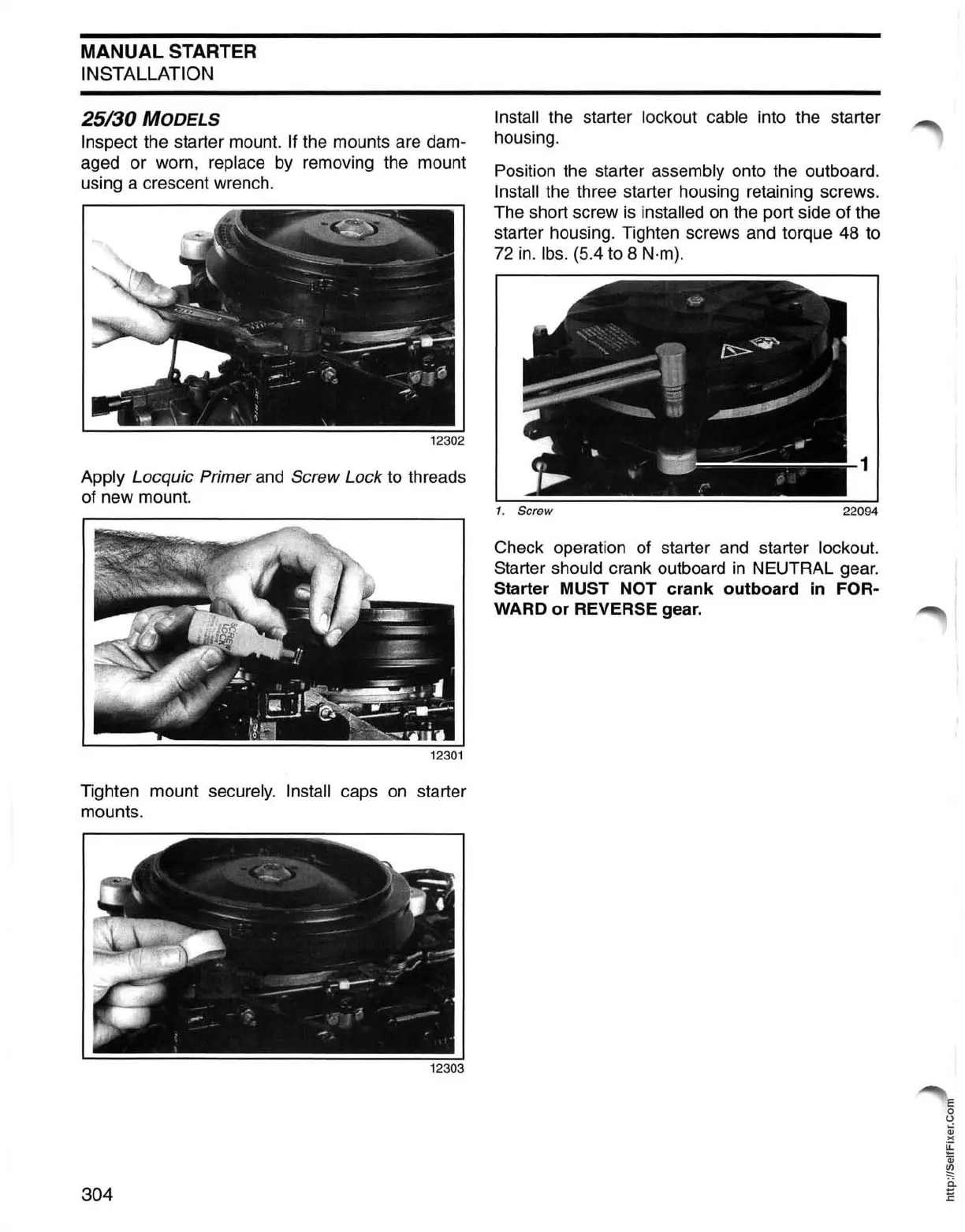

MANUAL STARTER
INSTALLATION
25/30 MODELS
Inspect the starter mount. If the mounts are dam-
aged
or worn, replace by removing the mount
using a crescent wrench.
Apply Locquic Primer and
Screw Lock to threads
of new mount.
Tighten mount securely.
Insta" caps on starter
mounts.
12303
304
Insta" the starter lockout cable into the starter
housing.
Position the starter assembly onto the outboard.
Insta" the three starter housing retaining screws.
The short screw
is installed on the port side of the
starter housing. Tighten screws and torque 48 to
72
in. Ibs. (5.4 to 8 N·m).
1
1. Screw
22094
Check operation of starter and starter lockout.
Starter
should crank outboard in NEUTRAL gear.
Starter MUST NOT crank outboard in FOR-
WARD or REVERSE gear.
