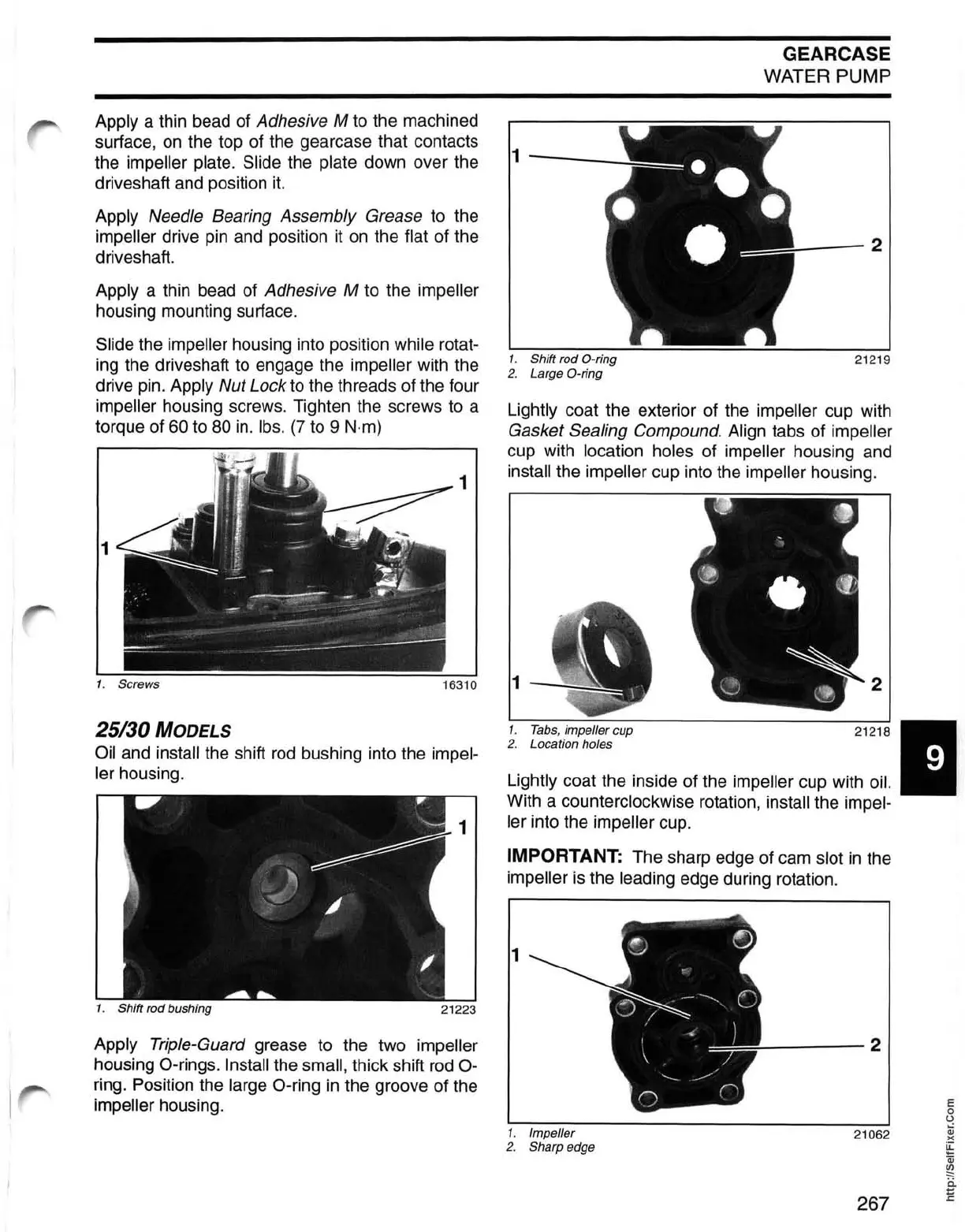

Apply a thin bead of Adhesive M to the machined
surface,
on the top of the gearcase that contacts
the
impeller plate. Slide the plate down over the
driveshaft and position
it.
Apply Needle Bearing Assembly Grease to the
impeller drive pin and position it on the flat of the
driveshaft.
Apply a thin bead of Adhesive M to the impeller
housing mounting surface.
Slide the impeller housing into position while rotat-
ing the driveshaft to engage the
impeller with the
drive pin.
Apply Nut Lock to the threads of the four
impeller housing screws. Tighten the screws to a
torque of
60 to 80 in. Ibs. (7 to 9 N·m)
1
1. Screws
16310
25/30 MODELS
Oil and install the shift rod bushing into the impel-
ler
housing.
1. Shift rod bushing
21223
Apply Triple-Guard grease to the two impeller
housing O-rings. Install the small, thick shift rod 0-
ring. Position the large O-ring in the groove of the
impeller housing.
1-- __
1. Shift rod O-ring
2. Large O-ring
GEARCASE
WATER PUMP
"-_-2
21219
Lightly coat the exterior of the impeller cup with
Gasket Sealing Compound.
Align tabs of impeller
cup with location holes of impeller housing and
install the impeller cup into the impeller housing.
2
1. Tabs, impel/ercup 212181
2. Location holes •
Lightly coat the inside of the impeller cup with oil.
With a counterclockwise rotation, install the impel-
ler
into the impeller cup.
IMPORTANT: The sharp edge of cam slot in the
impeller is the leading edge during rotation.
1
2
1. Impel/er
21062
2. Sharp edge
267
